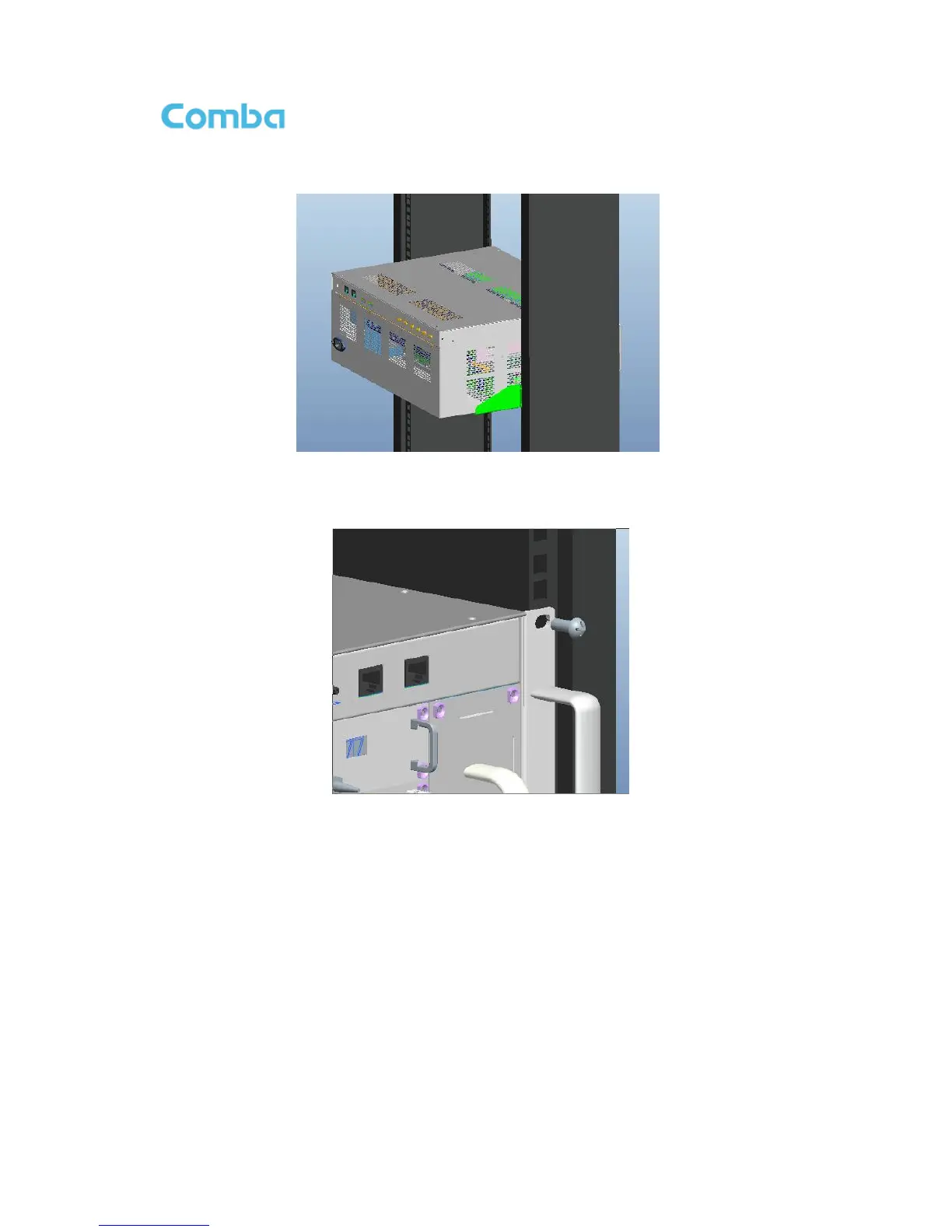

Step2: Slide the MU on to the angle brackets and confirm it is level.
Figure 12: MU Installation
Step 3: Attach the MU onto the rack with the recommended rack screws.
Figure 13: Secure the Enclosure
