Step 4: Finish installation.

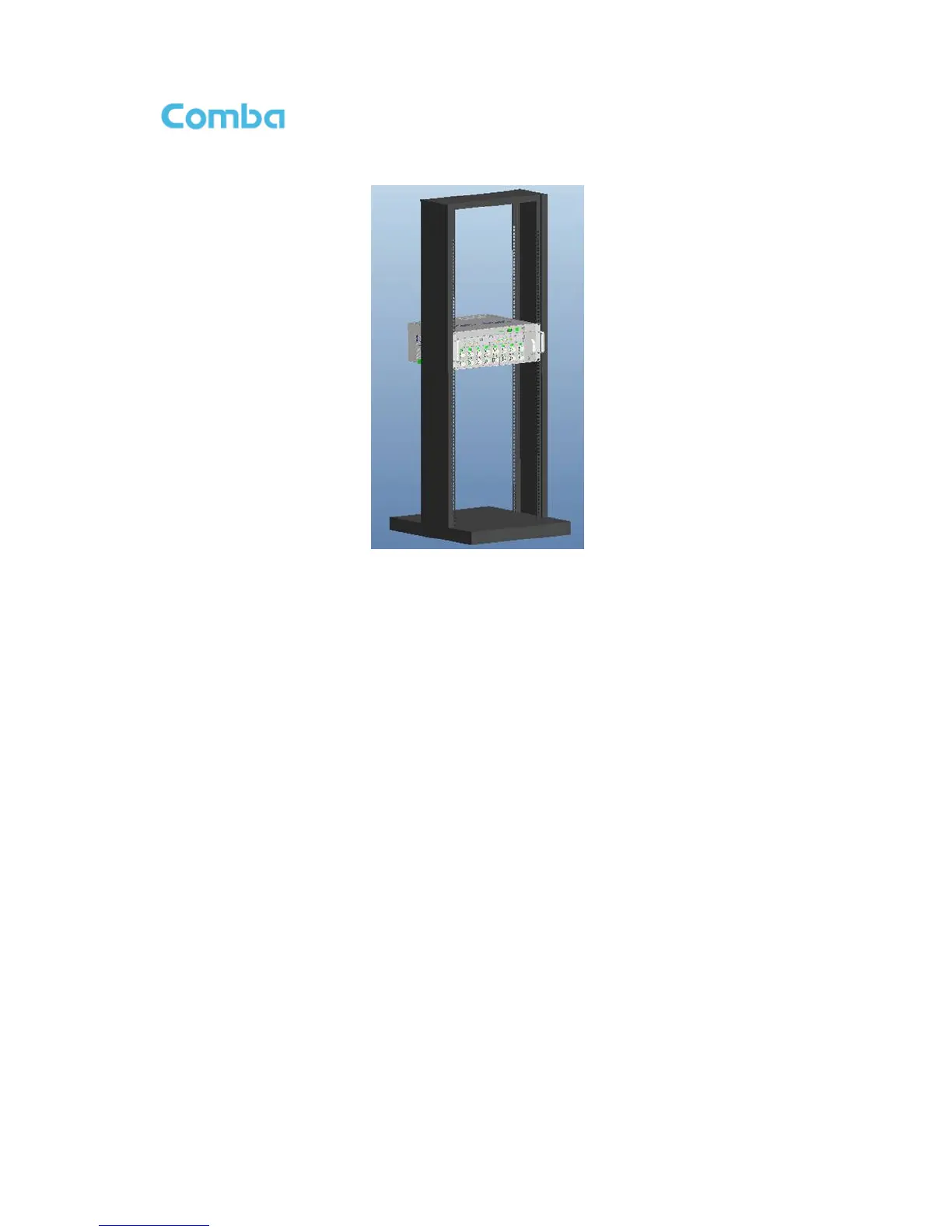

Figure 14: Finish Installaiton
3.3.6 RU WALL MOUNTING
RU wall mounting steps are shown below.
Step 1: Select the wall mount location according to the following criteria:
General surroundings
If mounting on dry wall, 0.75 In (min) plywood backboard is required to support the weight of
the equipment.
Ventilated and easy-to-reach area (for maintenance and on-site inspection)
Proximity to DAS antenna in order to minimize cable loss
Step 2: Measure and mark the locations of 4 holes on the wall. Refer to below figure for the wall drilling
dimensions of MRU. Use a Φ10 drill bit for masonry bolts.
