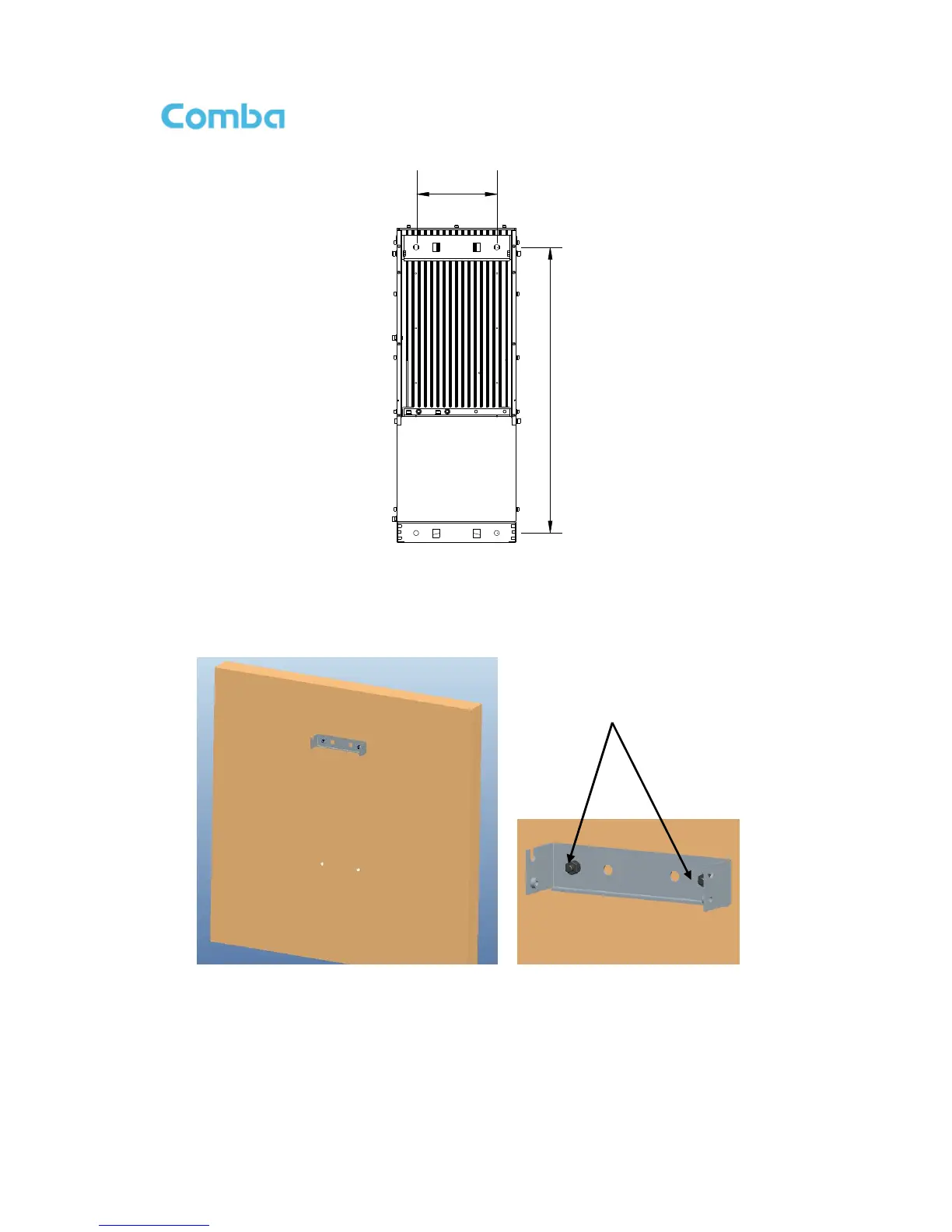

Figure 15: Wall Drilling Dimensions of MRU
Step 3: Attach the mounting rack on a wall. If a concrete wall, use the 2 M8×80 masonry bolts. (Bolts are
provided; lag bolts or screws are not provided for plywood mounting)
Figure 16: Install Mounting Rack on the Wall
Two M8
×
80
masonry bolt
