Step 4: Ensure the antenna and other connectors are facing down, hang RU onto semicircle slot of
mounting rack.

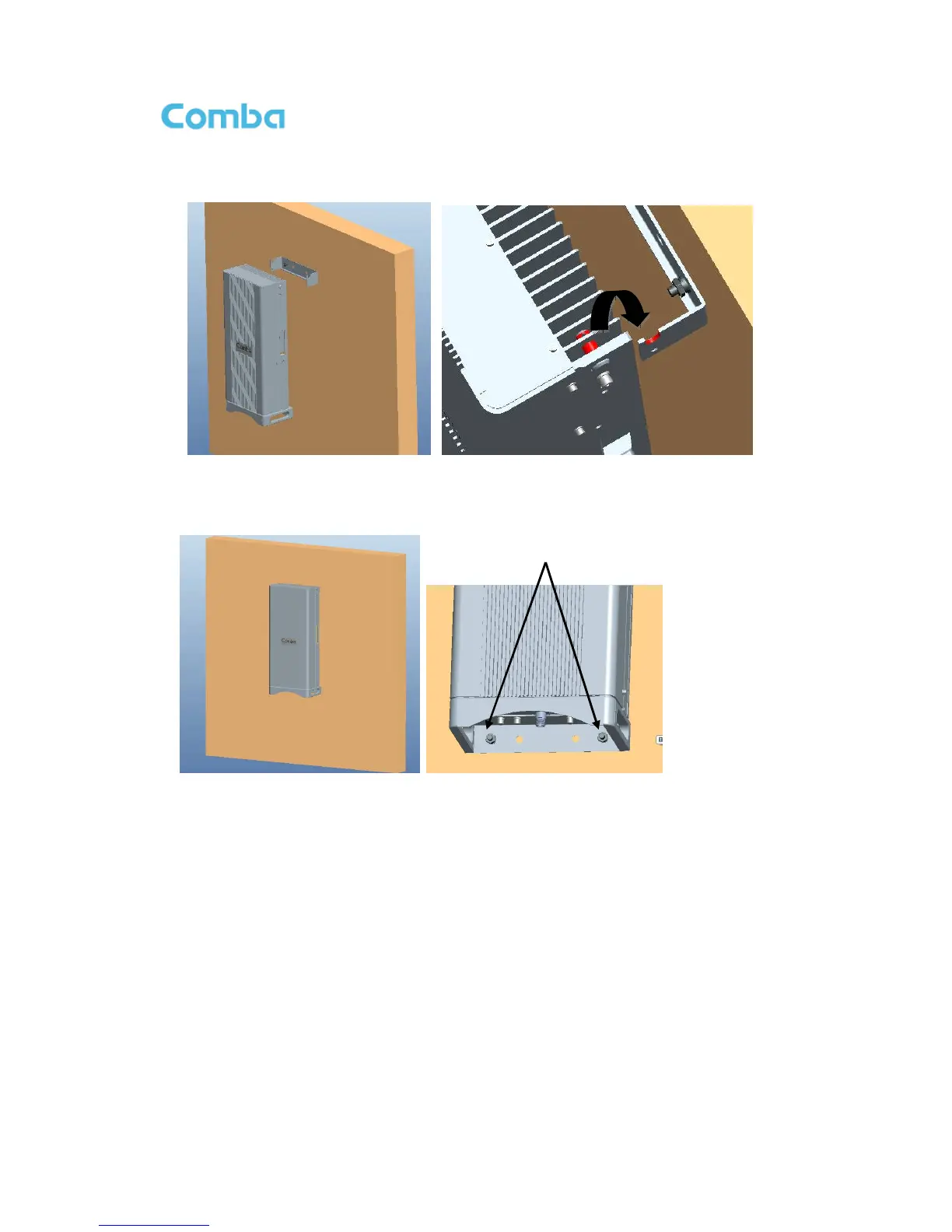

Figure 17: Hang RU onto the Mounting Rack
Step 5: Tighten the bottom two M8×80 masonry bolts on RU.
Figure 18: Tighten the Screws at the Bottom of RU
Two M8
×
80
masonry bolt
