Step 6: Tighten M6×20 hexagon screws on the left and right sides of RU to fasten it with mounting rack.

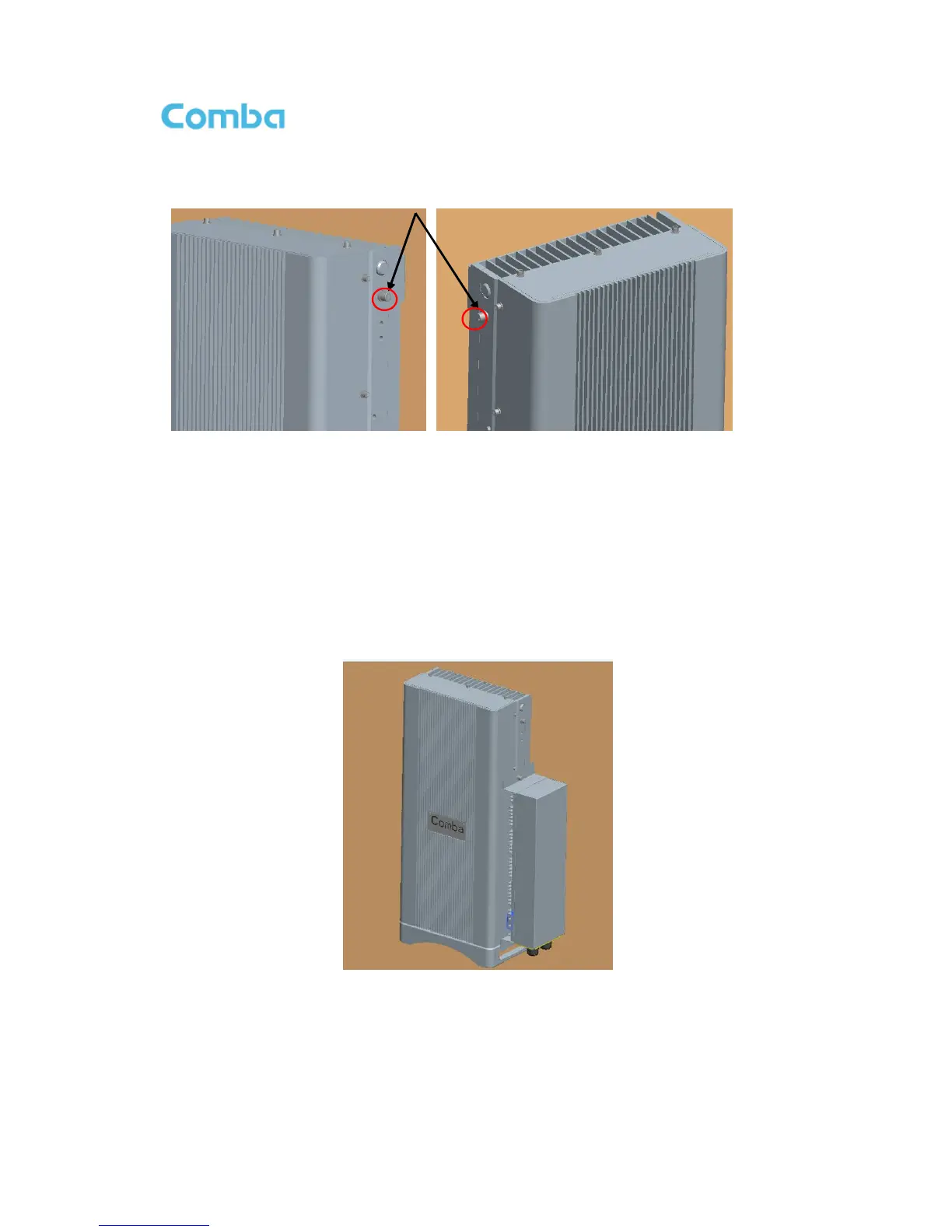

Figure 19: Tighten Two Hexagon Screws
3.3.7 PSU INSTALLATION
RU Power Supply Unit should be installed after the RU is mounted. RU Power Supply Unit can be
installed in two ways – attached to RU or mounted on wall.
PSU attached to RU
Attach the PSU on the right of the RU with two M6×10 hexagon screws (screws are provided).
Figure 20: Install PSU on RU
M6×20 hexagon screws
