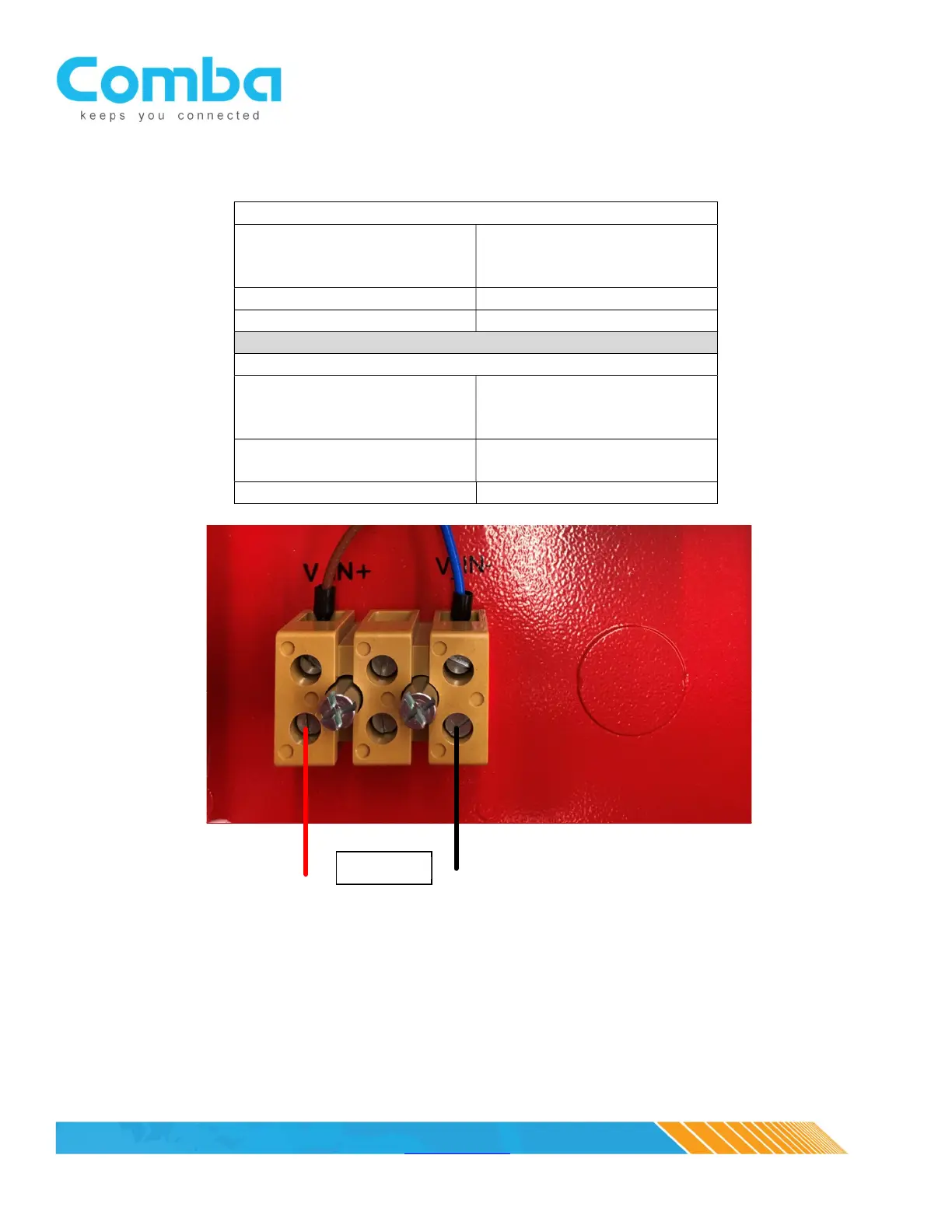

At the annunciator panel:
Power Connections from BBU V1
BBU V1
Connection
Annunciator
Panel
Connection
Load + V_IN+
Load
-
V_IN
-
Power Connections from BBU V2
BBU V2
Connection(s)
Annunciator
Panel
Connection
+12VDC, +
24V
DC
or Load +
V_IN+
0V or Load - V_IN-
4. Power on the BBU and switch on power at annunciator panel
From BBU
