Comco AccuFlo AF10-E - Maintenance Counters; Modulator

9
TechSupport:1‐818‐841‐5500

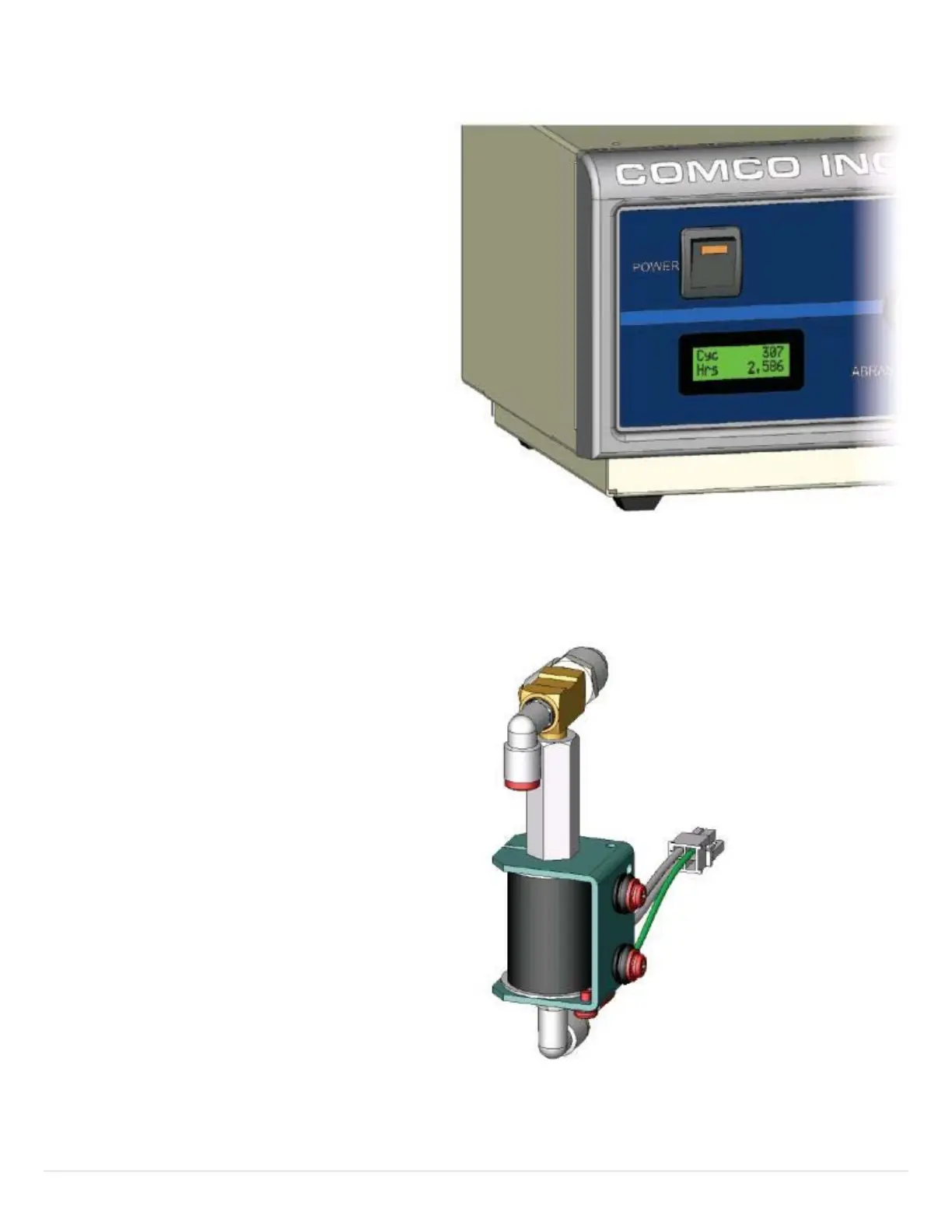

MaintenanceCounters
AccuFlo®Modulator
Foreasiermaintenancetherearetwocounterson
thefrontpanel.
TheCYCcountsthenumberofblastcyclesonthe
AccuFlo (eachtimethePowderGate®valveopens.)
Abrasivetypeandblastpressurewillimpact
maintenancefrequency,buttypicalconfigurations
willlastmorethan250,000cyclesbeforeneeding
maintenance.
TheHRS counterrecordsthenumberofblasthours
(i.e.actualtimethemodulatorhasoperated.)
Yourmaintenancerequirementsmayvarywithyour
application.
Themodulatorshouldbereplacedafter5000hours
ofoperation.
ToreplacetheAccuFlo®AF10‐Emodulator:
• Disconnect3coloredtubesfromthemodulator
andtheelectricalplugfromfrontpanel.
• Removethetwoscrewsholdingthemodulator
tothebracketusingaPhillipsscrewdriver.
• Installthenewmodulatorinreverseorder,
makingsurethetwogrommetsremaininthe
bracket.
MODULATOR
MB2250‐1(115V)
MB2250‐2(230V)
