Installation
Appliance exclusively for indoor use.
High voltage, proceed with caution.
Install inside a closed electrical panel so that it may only be accessed by authorised personnel.
A suitable omnipolar switch with a contact opening of at least 3 mm must be installed upstream of the
video entry phone system.
• Disconnect the power supply before carrying out any operations on the wiring.
• Replace the protections on the terminals.
• Do not obstruct the ventilation and cooling slits or openings.

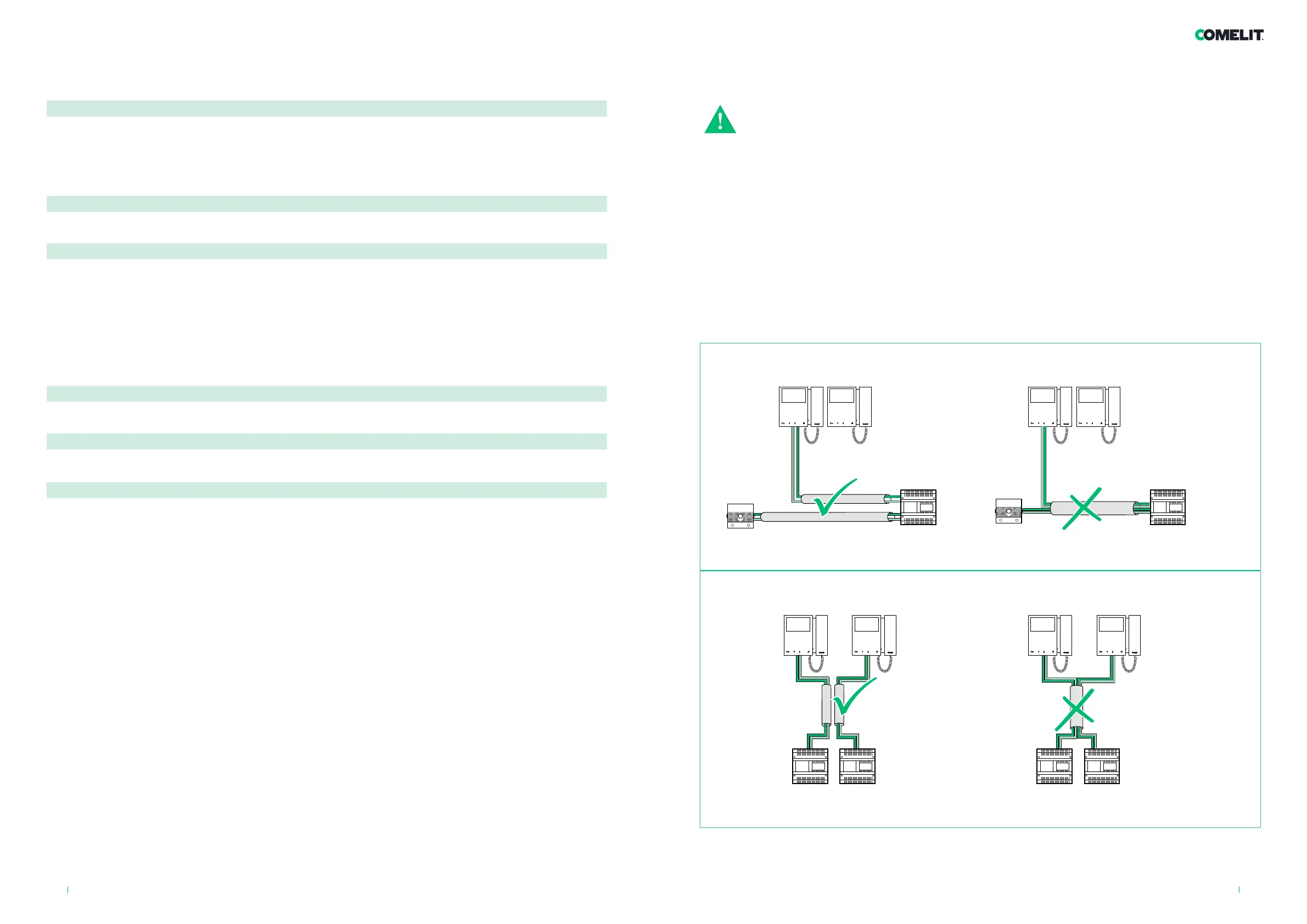

Wire ducts
• If it is necessary to run (even for short distances) sections of cable entering the mixer Art. 4888C (section SIMPLEBUS
1) through the same ducting as sections exiting the mixer Art. 4888C (section SIMPLEBUS 2), always use separate
sheathed cables.
• If it is necessary to run (even for short distances) sections of cable exiting the mixer Art. 4888C (section SIMPLEBUS 2)
through the same ducting, always use separate sheathed cables.
• Do not use pairs other than the specified multipolar cable
• Do not use loose cables
SIMPLEBUS 1
SIMPLEBUS 2
4888C
4888C4888C 4888C4888C
SIMPLEBUS 2
4888C
SIMPLEBUS 1
SIMPLEBUS 2
SIMPLEBUS 2
SIMPLEBUS 2
SIMPLEBUS 2
Specifications
MAIN FEATURES
Power supply voltage 230 VAC / 50-60 Hz
Input connector Terminal block
Applicable to DIN rail Yes
Number of DIN modules (no.) 8
HARDWARE SPECIFICATIONS
Product weight (g) 800
GENERAL DATA
Height (mm) 67
Width (mm) 140
Depth (mm) 140
Coating material type Makrolon 9425
Product colour WHITE RAL9010
Operating temperature (°C) - 5 - 40
Operating humidity (max. RH) (%( 25 - 95
COMPATIBILITY
Simplebus 2 audio/video system Yes
MOUNTING/INSTALLATION
Surface mounting Yes
ELECTRICAL SPECIFICATIONS
Maximum current absorption (mA) 700
