Comelit KCA2061 - Operating Distances and Cable Specifications; Maximum Operating Distances; UTP Cable Connection Guide

B
A
A
C
B
2738W
MAX 4
CA2100P
CA9213
1209
CA2100P
CA9211
B
A
A
C
B
2738W
2738W
2738W
1209
A MAX B MAX C MAX
Comelit Art. 4577/4579 1 mm²
(Ø 1,2 mm AWG 17)
260 m
(850 feet)
130 m
(425 feet)
130 m
(425 feet)
UTP5 cat. 5 0,2 mm²
(Ø 0,5 mm AWG 24)
80 m
(260 feet)
40 m
(130 feet)
40 m
(130 feet)
0,28 mm² (Ø 0,6 mm AWG 23)
100 m
(328 feet)
50 m
(164 feet)
50 m
(164 feet)
0,5 mm² (Ø 0,8 mm AWG 20)
140 m
(460 feet)
70 m
(230 feet)
70 m
(230 feet)
1 mm² (Ø 1,2 mm AWG 17)
200 m
(656 feet)
100 m
(328 feet)
100 m
(328 feet)
1,5 mm² (Ø 1,4 mm AWG 15)
80 m
(260 feet)
40 m
(130 feet)
40 m
(130 feet)
UTP5 cat. 5 0,2 mm²
(Ø 0,5 mm AWG 24)
MULTI PAIR CABLE
GREEN
ORANGE
BLU
GREEN / WHITE
ORANGE / WHITE
BLU / WHITE
BROWN / WHITE
BROWN
260 m
(850 feet)
130 m
(425 feet)
130 m
(425 feet)
9
Distanze di funzionamento
Cavo UTP con connessione multi-
coppiola: RISPETTARE I COLORI
INDICATI IN FIGURA!

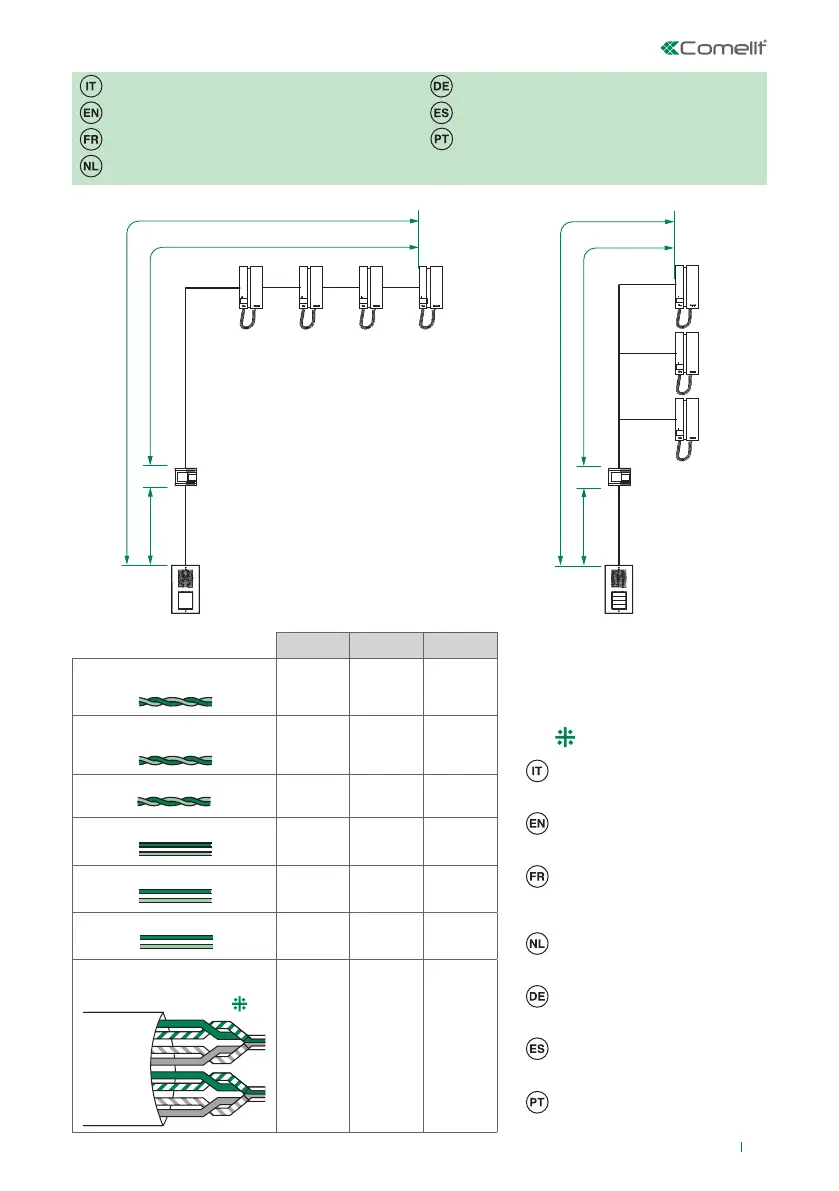

Operating distances
UTP cable with multi-cable
connection: FOLLOW THE COLOURS
SHOWN IN THE DIAGRAM!
Distances de fonctionnement
Câble UTP avec connexion paires
torsadées multiples : RESPECTER
LES COULEURS INDIQUÉES DANS
LA FIGURE !
Afstanden
UTP-kabel met multi-paar aansluiting:
DE IN DE AFBEELDING AANGEGEVEN
KLEUREN AANHOUDEN!
Maximal zulässige Entfernungen
UTP-Kabel mit Doppeladerbündel-
Anschluss: DIE IN DER ABBILDUNG
ANGEGEBENEN FARBEN BEACHTEN!
Distancias de funcionamiento
Cable UTP con conexión multipar:
¡RESPETAR LOS COLORES
INDICADOS EN LA FIGURA!
Distâncias de funcionamento
Cabo UTP com ligação multi-par:
RESPEITAR AS CORES INDICADAS
NA IMAGEM!
