Connections

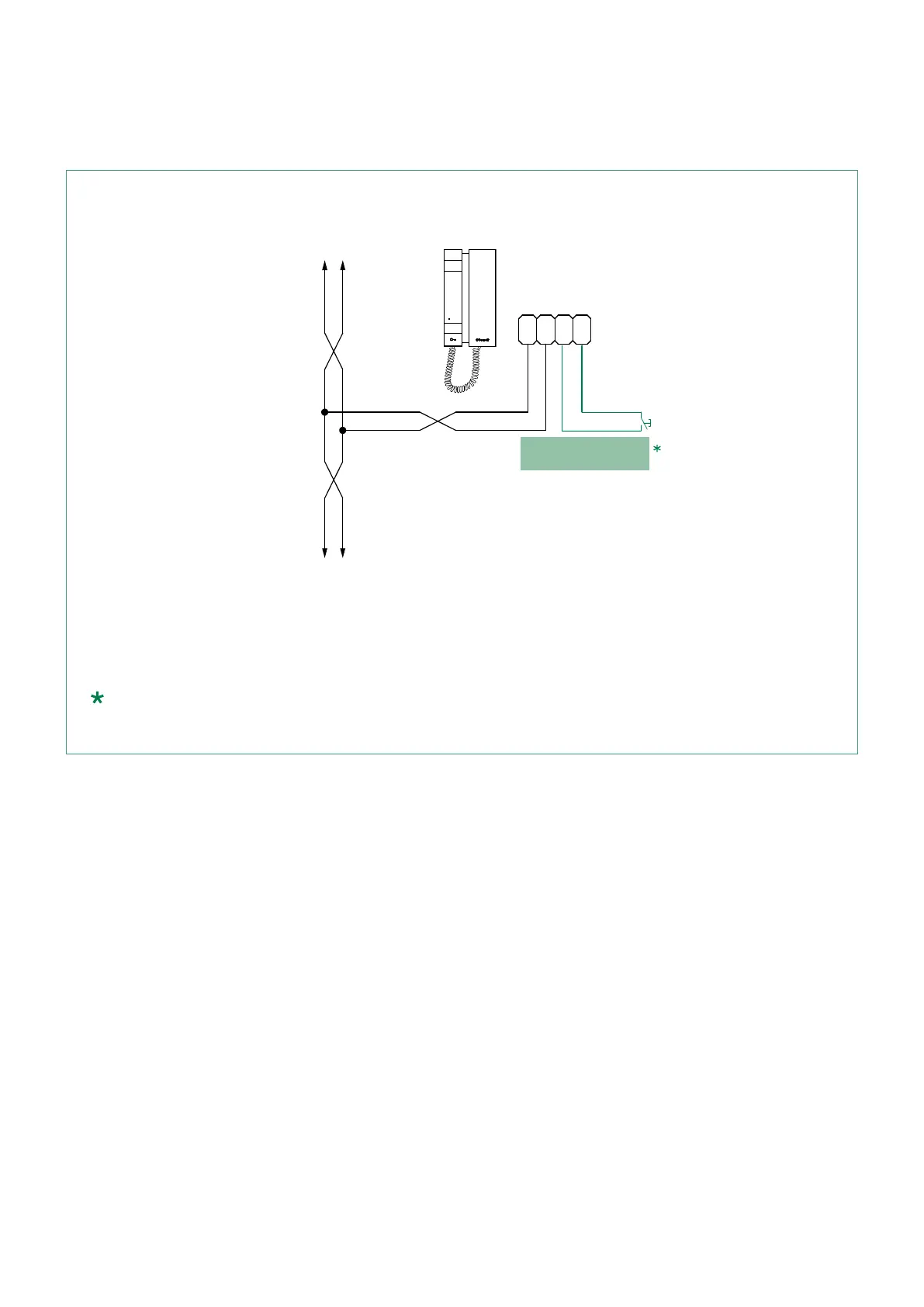

Connection to the door entry riser and the floor door call button
L L
C
F
P
C
F
P
2708W/A
MONTANTE
CITOFONICA
MONTANTE
CITOFONICA
CHIAMATA
FUORIPORTA
Where multiple door-entry phones have the same user code, connect the CFP button on one only; all the devices
will ring simultaneously.
20 m MAX - Use shielded cable for the connection and do not route the cables in the vicinity of heavy inductive
loads or power supply cables (230 V/400 V).
Programming
• Each door-entry phone in the system is identified by means of its own code. This code must be set using the DIP-switch on
the phone card.
• Refer to the Addressing table to identify the DIP-switch combination corresponding to the address you want to set.
• Coding can take place at any time, even without a power supply.
AUDIO ENTRY
SYSTEM RISER
AUDIO ENTRY
SYSTEM RISER
FLOOR
DOOR CALL
