Comelit PL8461V - Operating Distances

40

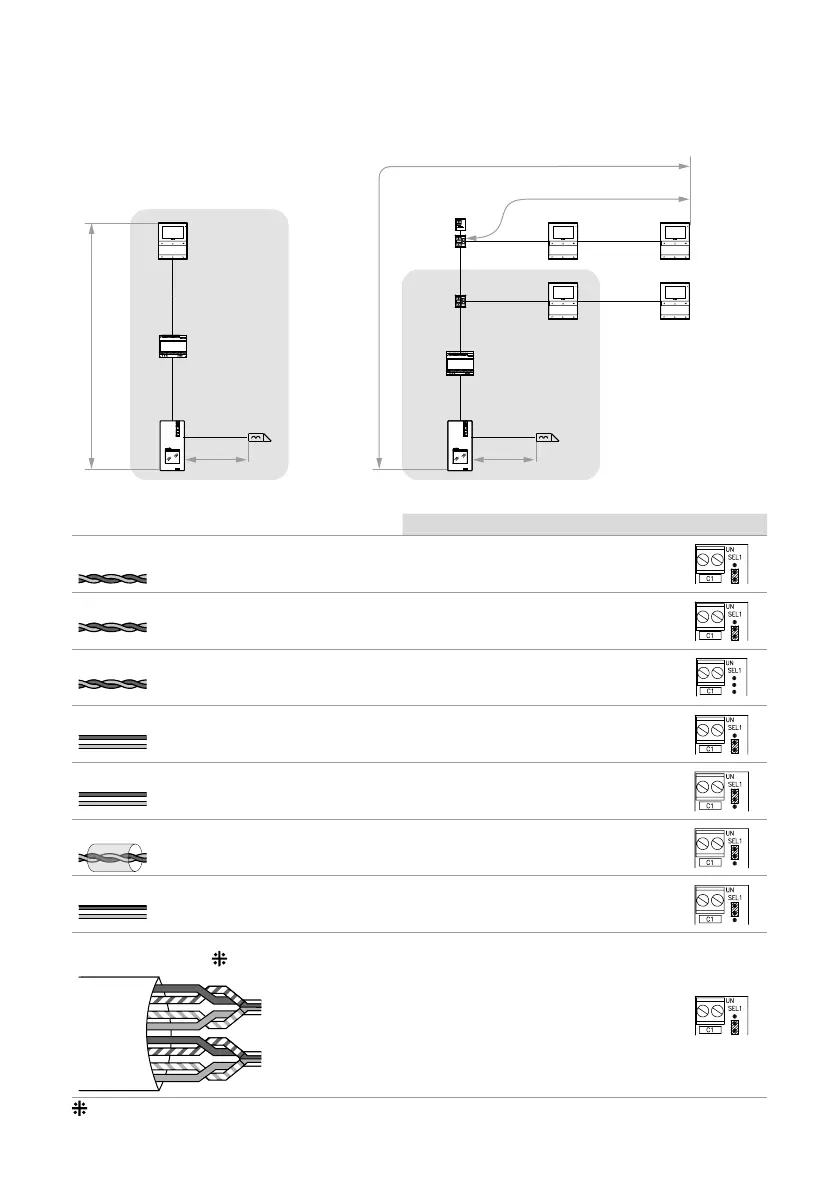

Operating distances
A
4893M
1209
E
B
A
A
4893M
1214/2C
1216
1209
1214/2C
E
Kit PL8461V Kit PL8461V
PL6721
PL6721
PL6721
A MAX B MAX E MAX Art. 1216
Comelit Art. 4577/4579 1 mm² (Ø 1.2 mm AWG
17)
200 m
(655 feet)
100 m
(330 feet)
2
UTP5 cat. 5 0.2 mm² (Ø 0.5 mm AWG 24)
100 m
(330 feet)
60 m
(195 feet)
2
0.28 mm² (Ø 0.6 mm AWG 23)
100 m
(330 feet)
60 m
(195 feet)
0.5 mm² (Ø 0.8 mm AWG 20)
100 m
(330 feet)
60 m
(195 feet)
2
1 mm² (Ø 1.2 mm AWG 17)
100 m
(330 feet)
60 m
(195 feet)
30 m
(98 feet)
1
1 mm² (Ø 1.2 mm AWG 17)

80 m
(260 feet)
40 m
(130 feet)
1
1.5 mm² (Ø 1.4 mm AWG 15)
100 m
(330 feet)
60 m
(195 feet)
50 m
(164 feet)
1
UTP5 cat. 5 0.2 mm² (Ø 0.5 mm AWG 24)
MULTI PAIR CABLE
GREEN
ORANGE
BLU
GREEN / WHITE
ORANGE / WHITE
BLU / WHITE
BROWN / WHITE
BROWN
200 m
(655 feet)
70 m
(230 feet)
2
UTP cable with multi-cable connection: FOLLOW THE COLOURS SHOWN IN THE DIAGRAM!
