Installation Instructions
Page 11
Preparation
CThe unit can be controlled by the unit control panel alone or with the remote
controller. This manual does not include Remote Controller Operations, see the <<Remote Controller
Instruction>> packed with the unit for details.
MODE Temperature Range MODE Temperature Range
Design Notice
Ambient Temperature Range For Unit Operating
In order to ensure the optimal performance of our products, the design specifications of the unit
and remote control are subject to change without prior notice.
Cool 17-35°C (62-95°F)
Dry
Heat(pump heat
mode)
Heat(electrical
heat mode)
13-35°C (55-95°F)
5-30°C (41-86°F)

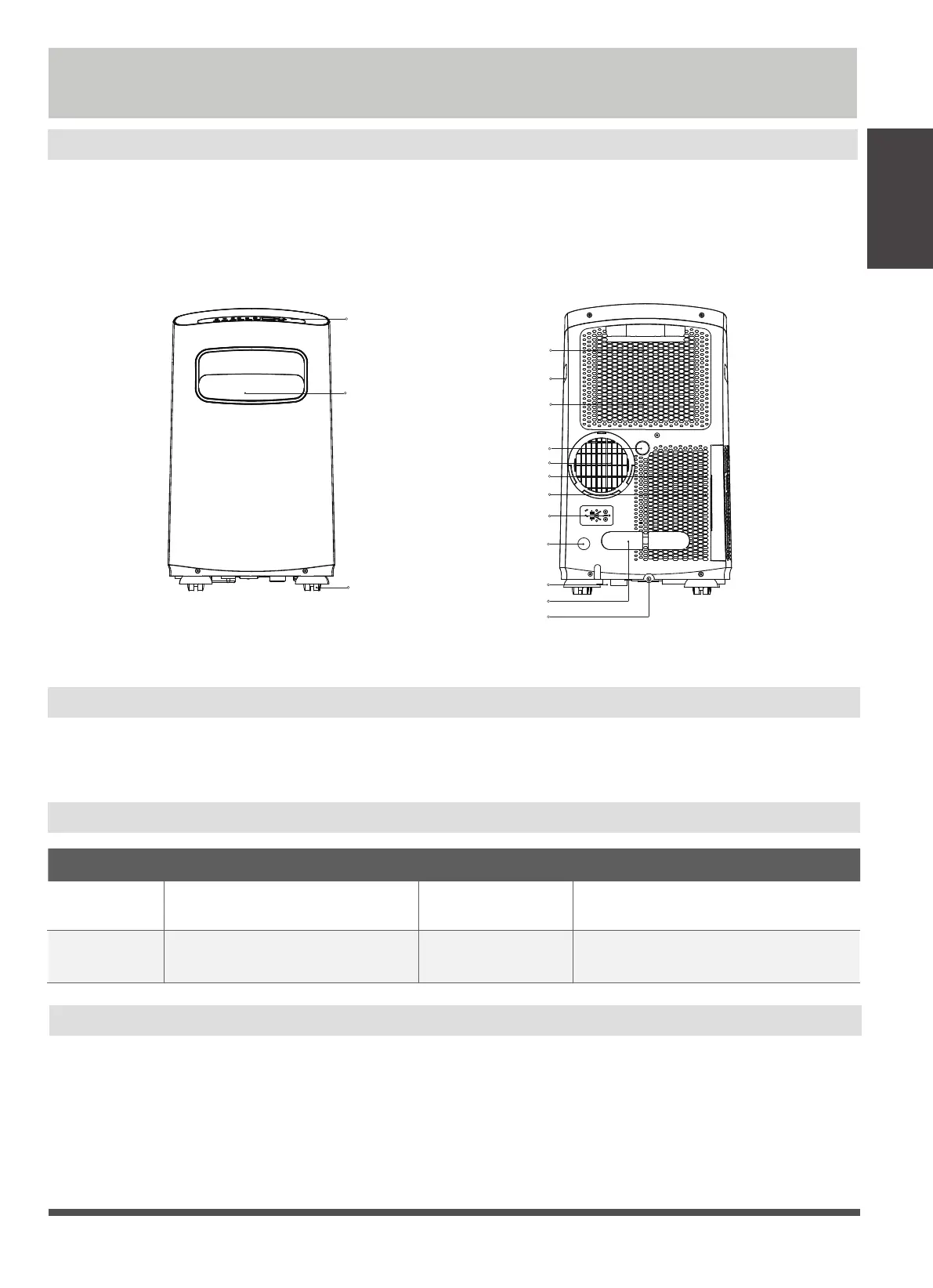

Installation
Instructions
rear
front
control panel
horizontal louver
blade
Caster
handle
(both sides)
power plug socket
power cord buckle
bottom tray
drain outlet
power cord outlet
drain outlet
(only for pump
heating mode)
upper air filter
upper air intake
air outlet
lower air filter
lower air intake
drain outlet
30°C (86°F)
≥
Exhaust hose installation
The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For
COOL,HEAT(heat pump type) or AUTO mode must be installed exhaust hose. For FAN, DRY or HEAT
(electrical heat type) mode must be removed exhaust hose.
