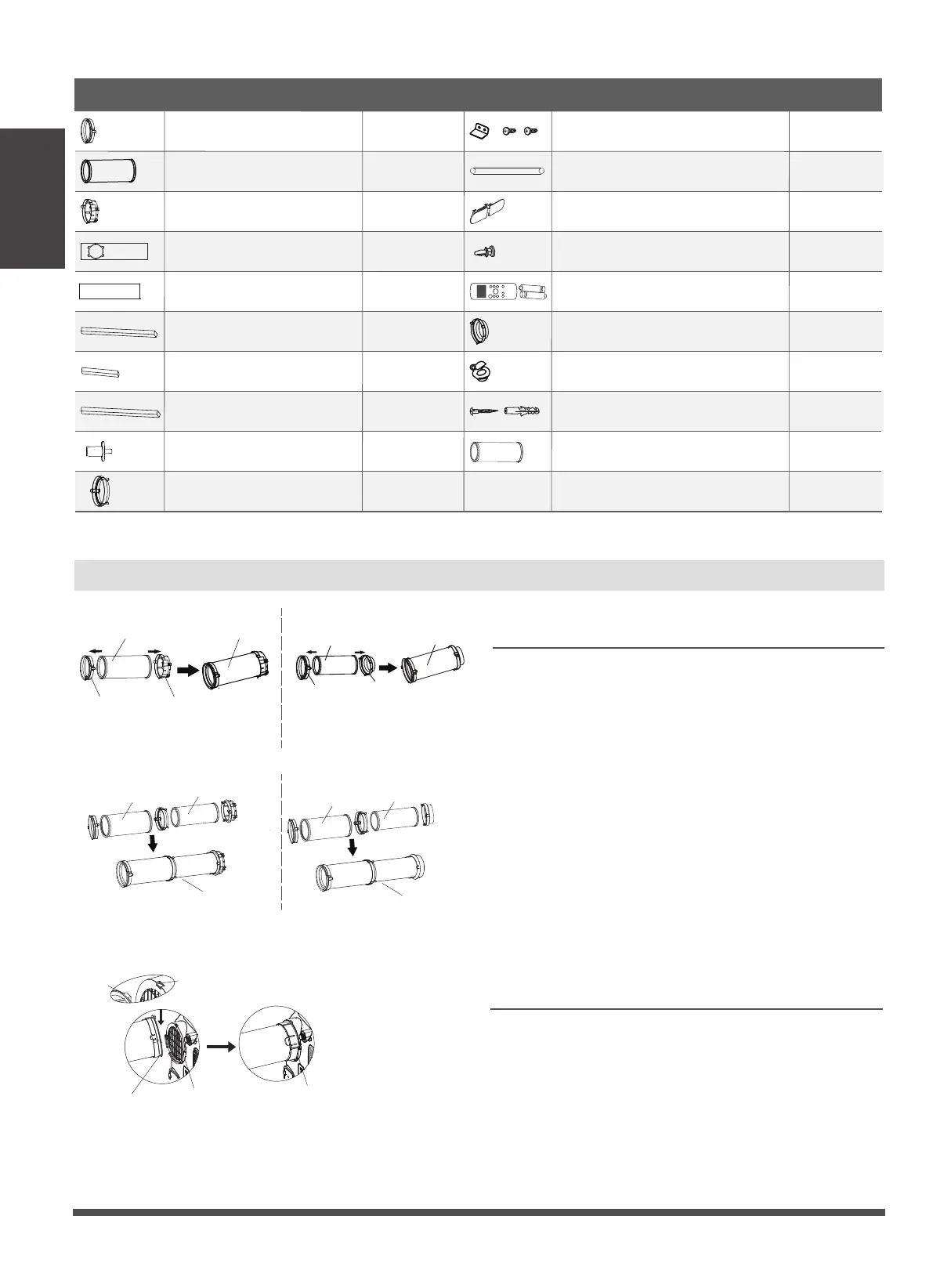

Window Installation Kit
Or
Unit adaptor Window slider
adaptor
Exhaust hose
Exhaust hose
assembly
Hook
Hole Seat
Lower groove
adaptor
Make sure the adaptor
is inserted into the lower
groove of the air outlet.
Step Two: Install the Exhaust hose assembly to
the unit
Insert unit adaptor of the Exhaust hose assembly
into the lower groove of the air outlet of the unit
while the hook of the adaptor is aligned with the
hole seat of the air outlet and slide down the
Exhaust hose assembly along the arrow direction
for installation.
Installation
Instructions
Type window installation Type wall installation
Type window installation Type wall installation
Exhaust hose assembly
Unit adaptor
Wall exhaust adaptor A
Exhaust hose
Press the exhaust hose(or extended exhaust hose)
into the window slider adaptor(or wall exhaust
adaptor) and unit adaptor, clamp automatically by
elastic buckles of the adaptors.
Step One: Preparing the Exhaust Hose assembly
Exhaust hose
Extended Exhaust hose
Exhaust hose assembly
Exhaust hose
Extended Exhaust hose
Exhaust hose assembly
Other Regions
Name of Accessories
Qty.
Shape
Name of Accessories
Qty.
Shape
1 pc(*)Window Slider A Bolt
1 pc 1 set(*)Unit Adaptor Security Bracket and 2 Screws
1 pc 1 pcExhaust Hose Drain Hose
1 pc(*) 1 pcWindow Slider Adaptor Power Cord Buckle
ON /OFF
TEM P
SHO R T CU T
TIME R
ON TIME R
OFF
MO DE
FAN
SLE EP
SW ING
LED
1 set(*)1 pc(*)Window Slider B
Remote Controller and Battery
(only for remote control models)
1 pc(*)
Wall Exhaust Adaptor A
(only for wall installation models)
2 pc(*)Foam Seal A (Adhesive)
1 pc(*)
Wall Exhaust Adaptor B(with cap)
(only for wall installation models)
2 pc(*)Foam Seal B (Adhesive)
4 set(*)
Screw and anchor
(only for wall installation models)
1 pc(*) Foam Seal C (Non-adhesive)
1 pc(*)
Drain Hose Adaptor
(only for heat pump mode)
1 pc(*)
1 pc(*)
1 pc(*)
Exhuast Hose Adaptor
Extended Exhuast Hose
