Installation
NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of
the following two installation methods.
Installation
Instructions
Step Three: Preparing the Adjustable Window
Slider
1. Depending on the size of your window, adjust
the size of the window slider.
2. If the length of the window requires two or three
window sliders, use the bolt(s) to fasten the
window sliders once they are adjusted to the
proper length.
or
Window slider A
MODEL A MODEL B
Window slider B
Bolt
Window slider A Window slider B
Bolt
MODEL A
Window slider A Window slider B
Window slider C
Bolts
Or
Or
Or
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Window
slider A
Window slider
B(if required)
Foam seal C
(Non-adhesive type)

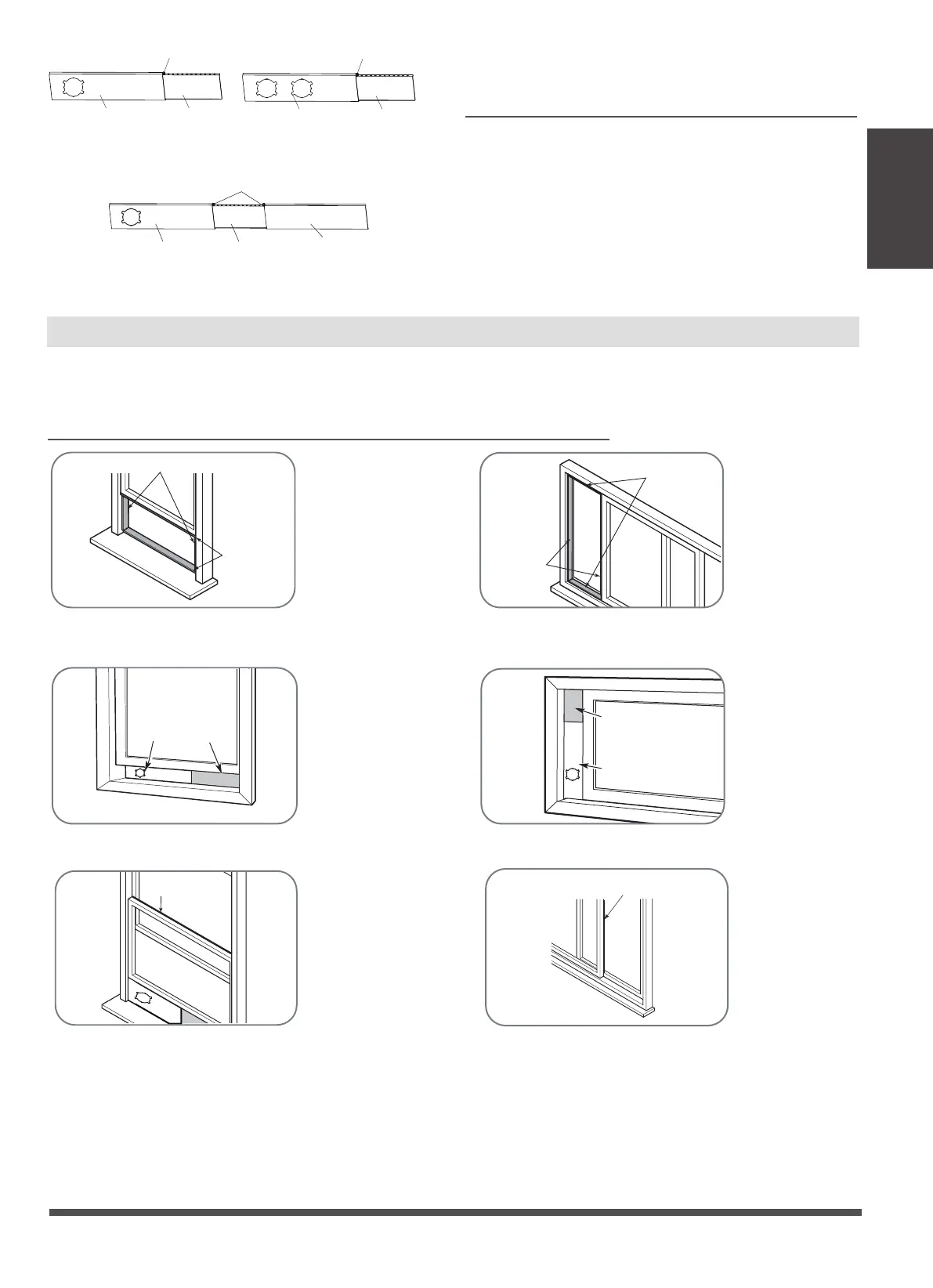

Type 1: Hung Window or Sliding Window Installation(For some models)
1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash
and frame as shown.
3. Cut the non-adhesive foam seal C strip to match the width(or height) of the window. Insert the seal
between the glass and the window frame to prevent air and insects from getting into the room.
2. Insert the window slider assembly into the window opening.
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
Foam seal C
(Non-adhesive type)
