ComfortNET CTK04 System Installation Guide

CTK04 ComfortNet™ Communicating Thermostat
13
I/O-CHTSTAT03 69-2688—07

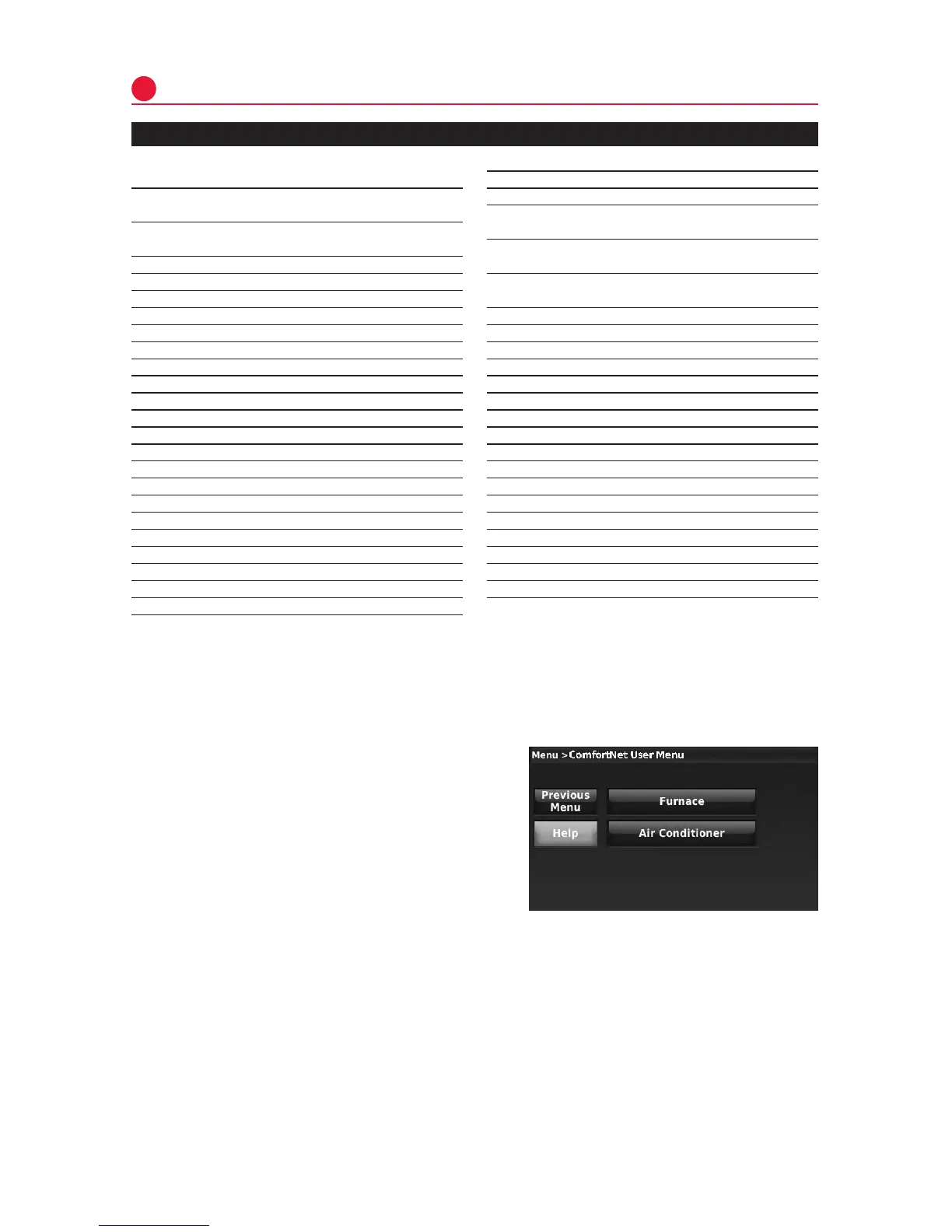

ComfortNet User Menu
PressMENU > COMFORTNET USER MENU
AdditionalequipmentinformationisfoundintheComfortNetUserMenu.PressMENU
andscrolldowntopressCOMFORTNET USER MENU.Enterthedatecode(password)
whenprompted.Thedatecodeisprintedon
thebackofthethermostat;orpressMENU >
EQUIPMENT STATUS to find the date code.
Afteryouenterthepassword,selectthe
equipmenttype(furnace,airhandler,
airconditioner,heatpump)toviewthe
specifications.
Eachequipmenttypeisdividedintocategories
whichmayinclude:(Notallmenuoptionslisted
heremaybeavailable.Additionalmenuoptionsmaybedisplayedonthethermostat.)
4130 Entry/Exit Remote -
Away/Unoccupied Heat Setpoint B
4140 Entry/Exit Remote -
Vacation/Holiday Cool Setpoint B
4140 Entry/Exit Remote -
Vacation/Holiday Heat Setpoint B
5040 Indoor Sensors Used for Temperature Control B
7000 Filter Type B
7020 Number of Air Filters B
7110 Air Filter Replacement Reminder B
7110 Air Filter 2 Replacement Reminder B
7120 EAC Cell Cleaning Reminder B
7120 EAC Pre-Filter Cleaning Reminder B
7120 EAC Post-Filter Replacement Reminder B
8000 Humidifier Type B
8010 Indoor Sensor Used for Humidification Control B
8050 Humidification - Window Protection B
8060 System Modes Allowing Humidification B
8070 Humidification Control B
8100 Clean Tank / Water Filter Replacement Reminder B
8100 Humidifier Pad Replacement Reminder B
9000 Dehumidification Equipment B
9010 Indoor Sensor Used for Dehumidification Control B
9020 Humidity Sensor Displayed on the Home Screen B
9070 Dehumidification - Overcooling Limit R
9080 Dehumidification Control C
9090 Dehumidification Minimum On Time C
9100 High Humidity Comfort Reset Setting C
9180 Dehumidification Away Mode B
9190 Dehumidification Away Mode - Fan Control B
9200 Dehumidification Away Mode -
Low Limit Temperature B
9200 Dehumidification Away Mode -
Temperature Setting B
9200 Dehumidification Away Mode -
Dehumidification Setting B
9210 Dehumidifier Filter Replacement Reminder B
10000 Ventilation Type B
10050 Ventilation Control Method B
10090 Number of Bedrooms R
10090 Size of House R
10100 Enter Equipment Ventilation Rate R
10120 Ventilation Percent On Time B
10170 Ventilator Filter Cleaning Reminder B
11000 Number of UV Devices B
11050 UV Bulb Replacement Reminder B
11050 UV Bulb 2 Replacement Reminder B
12000 Installer Custom Reminders B
14000 Clock Format B
14010 Daylight Saving Time B
14020 Indoor Temperature Display Offset B
14020 Indoor Humidity Display Offset B
15000-15020 Dealer name, phone, email, website, message B
Installer options (ISU)
6
ISU Function ISU Function
• Configuration: Provides information regarding the setup of the equipment. An example of configuration data is the number
of cooling stages for an AC condensing unit.
• Diagnostics: Provides a fault history of the equipment and allows the installer to clear the fault history.
• Identification: Provides the model and serial number of the equipment and software revision information.
• Sensors: Provides the sensor data of the equipment. In some instances, it may allow the installer to setup or turn off a
sensor.
• Setup: Allows the installer to change the settings of the equipment.
• Status: Provides the current status of the equipment.
Seeequipmentinstallermanualforspecificsubmenuoptionsavailablewithineach
category.Bothindoor(AirHandlerandFurnace)andoutdoor(AirConditionerand
HeatPump)unitswillhavedifferentsetsofsubmenus.

ComfortNET CTK04 Specifications

General

Wi-Fi	Yes
Humidity Control	Yes
Temperature Control	Yes
Product Type	Thermostat
Brand	ComfortNET
Model	CTK04
Touchscreen	Yes
Color	White
Compatibility	HVAC systems
Programmable	Yes
Temperature Range	45°F to 99°F
