User Manual COMM-TEC UP-1080p
COMM-TEC GMBH www.comm-tec.de 7 of 21

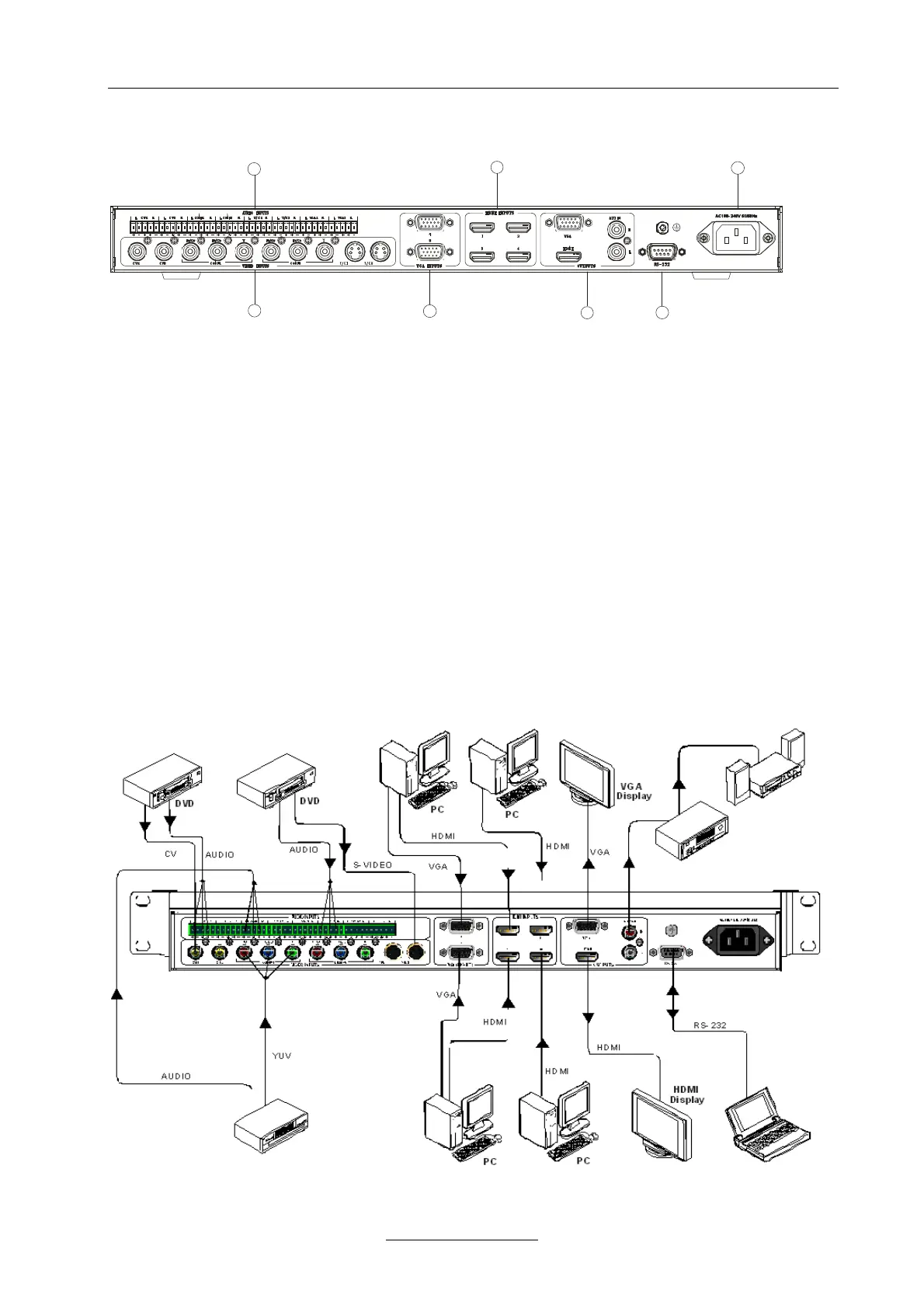

3.2 UP-1080p Rare Panel
1
7
4
2 3
5
6
j 8 AUDIO INPUTS
2 for Composite Audio inputs, 2 for Component Audio input,
2 for S-Video Audio input, 2 for VGA Audio input.
k 6 VIDEO INPUTS
2 Composite Video, 2 S-Video Video, 2 Component Video
l 2 VGA INPUTS
m 4 HDMI INPUTS
n OUTPUTS
1 VGA output, 1 HDMI output, 1 Stereo output
o RS-232 Control port
p Power connector, AC100V-240V, 50Hz/60Hz
3.3 UP-1080p System Connection Diagram
