7

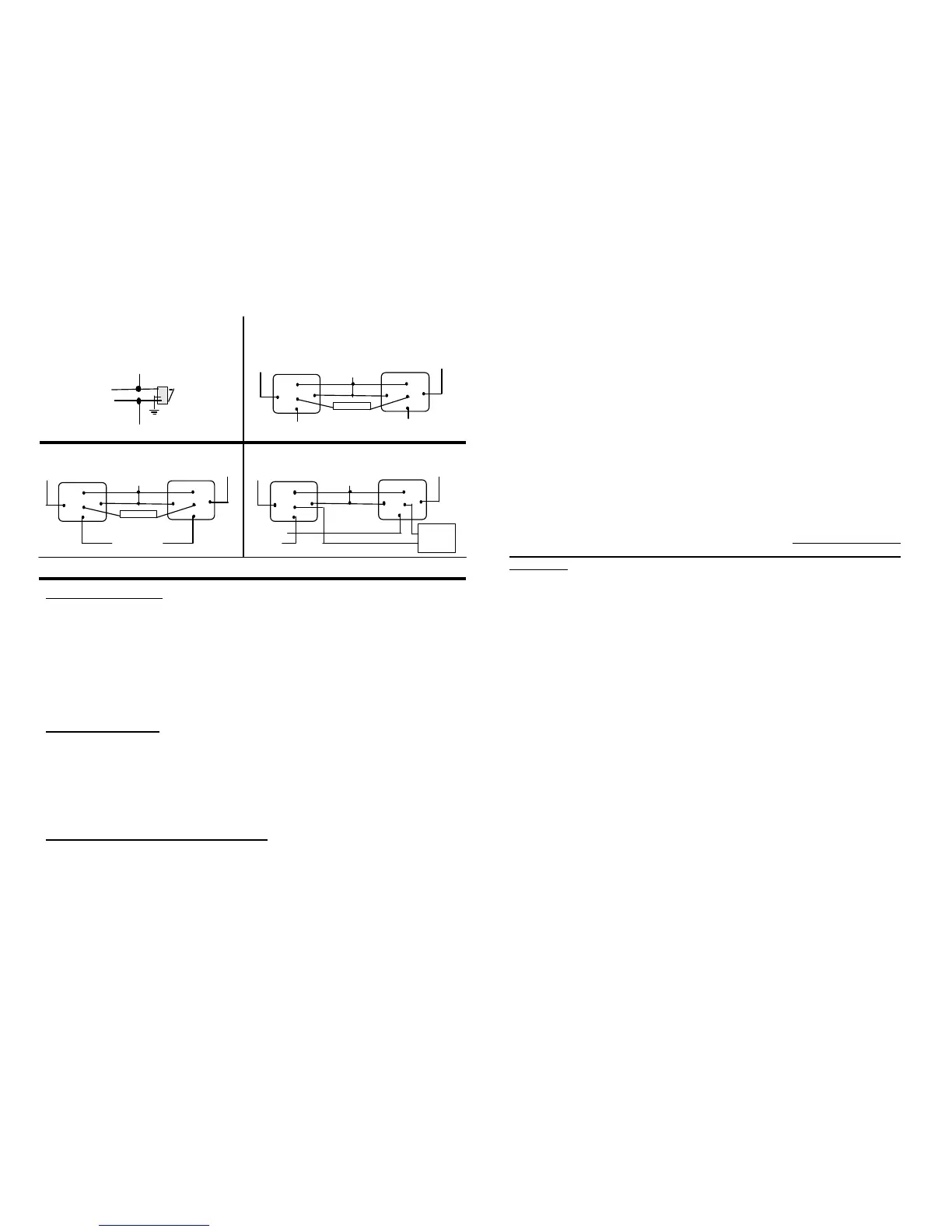

REMOTE START FEATURESDOOR LOCK WIRING DIAGRAM
4
Bypassing Factory theft Deterrent Systems:
Most factory deterrent systems are now using either a resistor coded key or a
passive transponder that allows the fuel system to function properly only when
the coded key is inserted into ignition. Therefore when starting the vehicle
remotely without the key, the vehicle's theft deterrent system will only allow the
vehicle to start if it "reads" the proper coded key or transponder in the ignition. If
you try and start the vehicle with any of these systems and do not bypass it then
the vehicle will crank but the fuel system will shut down and not run.
REMOTE START FUNCTIONS:
1.- Press button #4, Siren will cherp 3 times parking lights will turn on solid, LED
will begin to flash rapidly to verify that the vehicle is about to start remotely.
Ignition relays #1 & #2 will provide 12V+ output first (Yellow & Brown wires), the
Red wire on the 3 pin accessory harness will pulse to turn off the factory alarm. (If
applicable)
After 3 seconds the start relay will then provide 12 V+ for approximately 1 second
(violet wire) or until it senses that the car has started.
Immediately after the car has started the accessory relay will provide 12V+ output
(Orange wire). Air conditioning or heater should now turn on. Engine will run for
12 minutes.
2.- Press button #2 to unlock vehicle (if the keyless functions are used), and enter
vehicle. Do not hit brake pedal before turning the ignition on or the vehicle will
shut down.
3.- Insert the ignition key and turn to ignition position only! If the key is turned all
the way to the crank position, the starter will over grind and possibly damage
the starter. Once the ignition is turned on, the vehicle may be operated normally.
If the vehicle needs to be remotely shut down during the run cycle, press button
#4 on the transmitter Siren will cherp 6 times and the vehicle's engine will stop
running.
Valet Mode:
To get into Valet mode, turn the Ignition ON, hold the push button switch for 5 seconds
until the LED comes ON solid. The system will be in VALET. Only the door lock/unlock
system will work on Valet (Keyless Entry).
To get out of Valet mode, turn the ignition ON and hold the switch down for 5 seconds,
Longer Crank Times:
Some vehicles require a longer cranking time, to achieve this you must turn the
dip switch #2 to off position.
Diesel Mode:
Vehicles with a diesel engine can be remote started by placing the dip switch #3
to an OFF position. By doing this your ignition will be turned on for 20 seconds
before starting the vehicle, allowing a time for your glow plugs to warm up.
Unlock (+)
From Door Switch
5 Wire "Ground at rest" Door Lock System
Lock (+)
From Door Switch
3 Wire Positive Door Lock System
X
5 WIRE
FACTORY
SWITCH
ACTUATOR
Or use the optional DL-INV or D-DLS
Factory
Door Lock Switch
3 Wire Negative Door Lock System
Existing Power
door lock system
Alarm Door Unlock Wire
Alarm Door Lock Wire
12V Power (+)
Not Needed
87
85
86
87a
30
87
87a
30
85
86
Alarm Door Unlock Wire
Alarm Door Lock Wire
DOOR LOCK
ACTUATOR
Aftermarket Power door lock Actuator
12V Power (+)
Ground
87
85
86
87a
30
87
87a
30
85
86
Alarm Door Unlock Wire
Alarm Door Lock Wire
12V Power (+)
87
85
86
87a
30
87
87a
30
85
86
Alarm Door Unlock WireAlarm Door Lock Wire
X
Stop-N-Go Feature:
If you wish to exit the car and remove the ignition key but keep the car running.
1- While Ignition is on Position Press the brake pedal and hold.
2- While pressing the brake pedal press button # 1 on the transmitter for 2seconds.
3- The LED should now be flashing rapidly.
4- While In STOP-N-GO Mode The Parking Lights Will Flash 5 Times.
5- Release the brake pedal and turn the ignition switch to OFF position, Remove key.
Now you may exit the vehicle and lock the doors with the keyless entry feature.
When reentering the vehicle simply turn ignition key to ON position (Do not start),
Press the brake pedal and the STOP & GO feature will be OFF.
Cold Start Feature:
1- Cold Start Feature (Program Location # 8) Must be Enabled
2- Press And Hold Brack Pedal
3- Press And Hold Valet Switch
4- Press Button # 4 for 3 seconds, Parking Lights will flash five (5) times. Then Engine
starts for 30 seconds, to acknowledge the setting. Once programmed the engine will
start every 2 hours or one houre as program for 15 or 25 minutes, for total of 12 times
only.
To Turn The Cold Start Feature OFF:
1 - REPEAT STEP ONE. LIGHTS WILL FLASHES 10 TIMES.
2 - DEACTIVATE BY STEPPING ON THE BRAKE.
3 - WHEN THE USER STARTS THE CAR WITH REMOTE CONTROL.
4 - DEACTIVATE BY TURNING ON THE IGNITION.
ALL THE ABOVE WILL CANCEL THE COLD START MODE.
