17. Wiring
※※

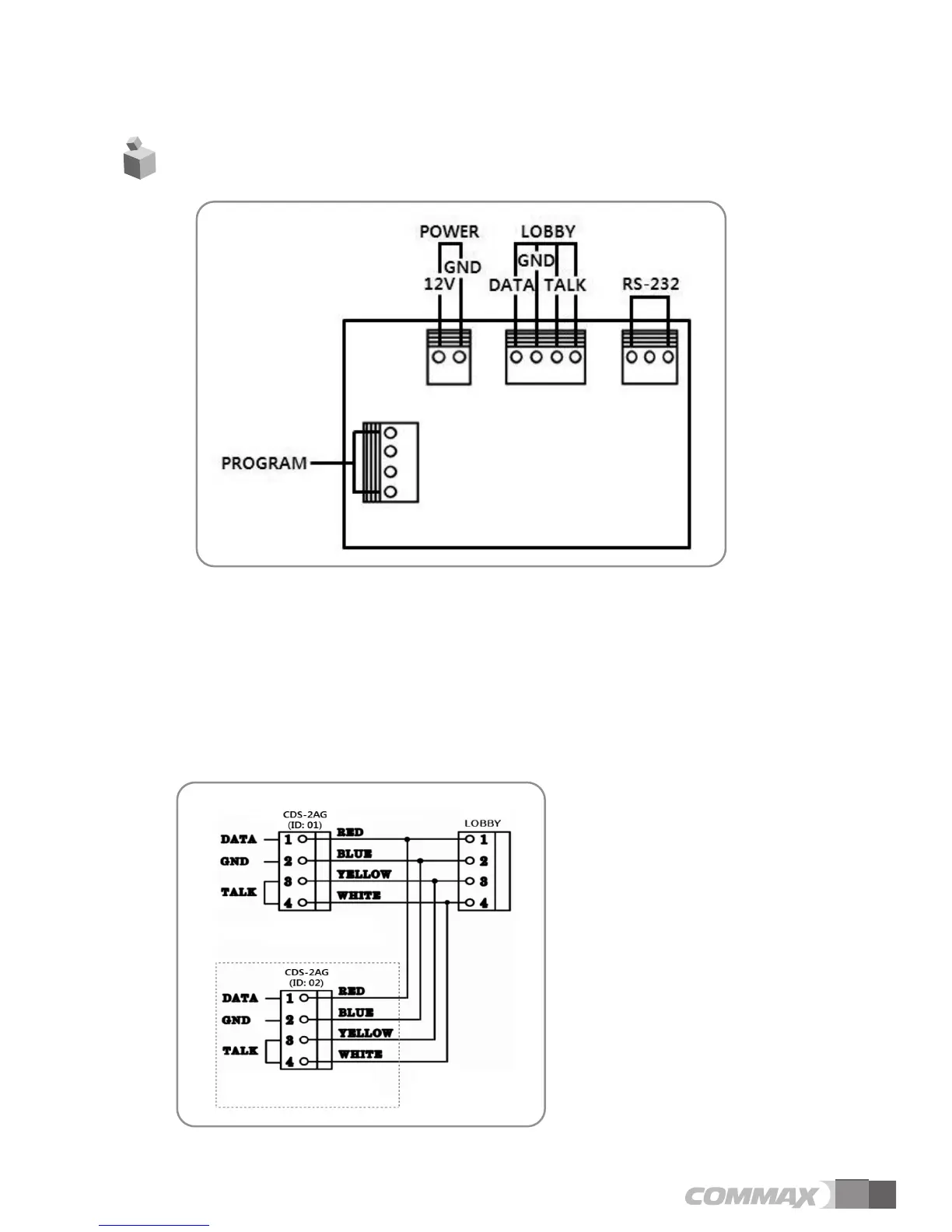

If more than 2 security stations are installed, 4 common wires
required. [Refer to below diagram]
- Each device ID set up required
- If more than 3 security stations are installed and a combination of CDS-
4GS & CDS-2AG are in use, CDS-4GS must be set up as Master (ID:
01) and Slave 1 (ID: 02). Therefore the ID for CDS-2AG should be set
up from 03.
