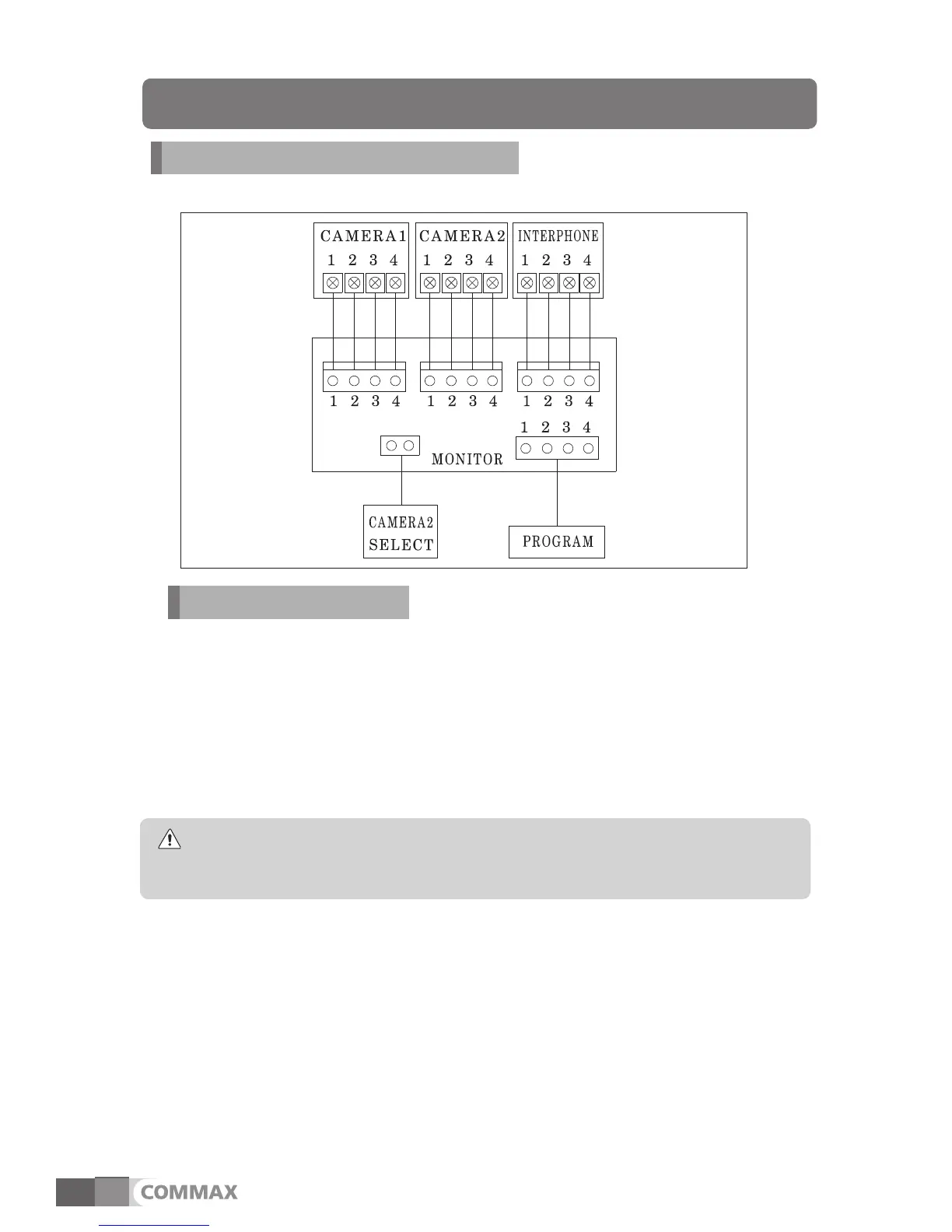

① RED : VOICE ② BLUE : GND ③ YELLOW : POWER(+12V) ④ WHITE : VIDEO
1. polarity of camera connector
2. Wiring precautions
5. Wiring
10
1) If high voltage cables are present in the vicinity, use a coaxial cable with metal outer
casing
2) If any internal wires are exposed through mis-wiring, it may cause a short and become a
cause of malfunction or fire.
3) When connecting the monitors and cameras, please make sure that the monitor power is
off
4) Attend the wiring as it is has polarity
5) Remove select pin to install two cameras.
6) Make it short for camera 2 connector in case of installing only one camera.(Default)
[Note]
Arbitrarily installed additional monitors may lower the quality of video and voice
transmission
