9

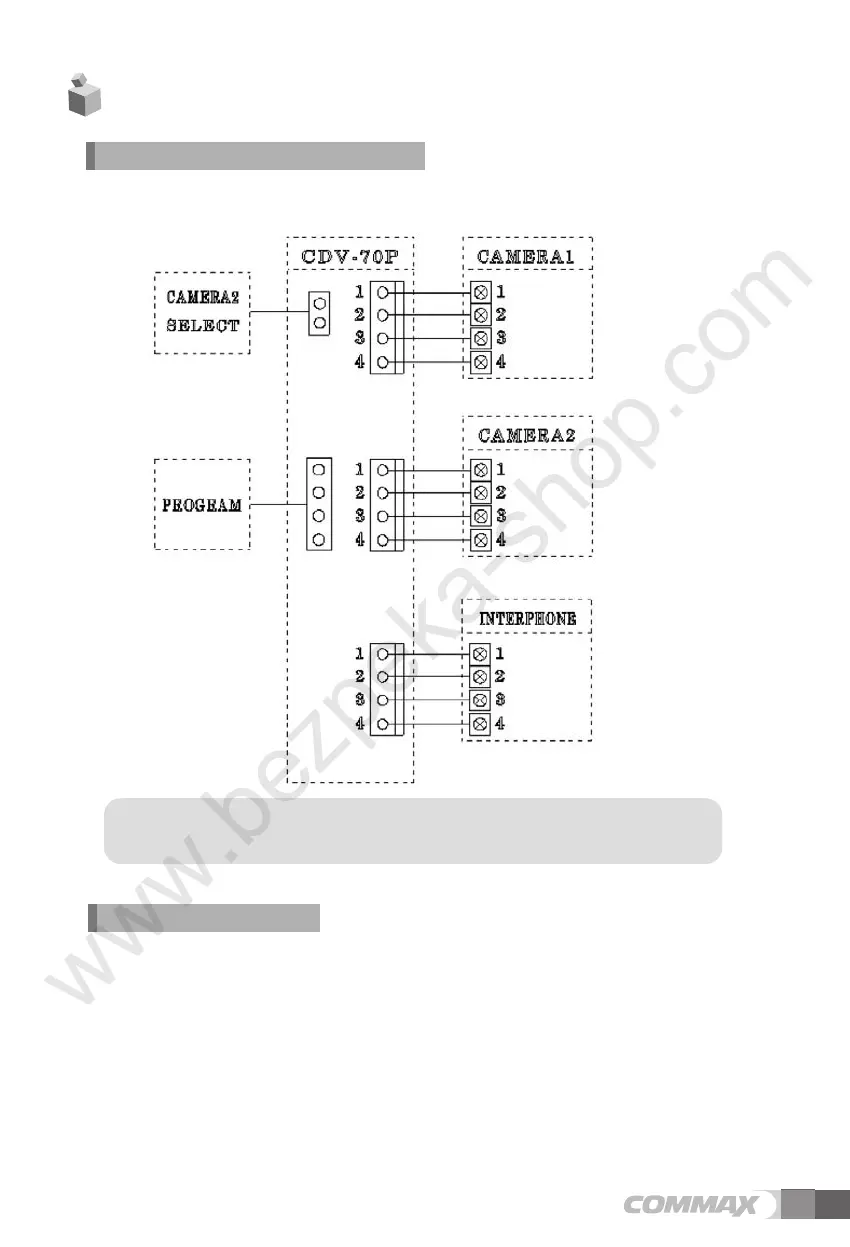

CAMERA CONNECTOR POLARITY
1. RED : VOICE 2. BLUE : GND 3. YELLOW : POWER(+12V) 4. WHITE : VIDEO
Be sure to use a separate wiring for each connect
2lines of UTP CABLE[CAT.5] are required if UTP CABLE[CAT.5] is used for
CAMERA1 and CAMERA2
Caution on the Wiring
6. Wiring
CAMERA2 SELECT : Decide if you use Camera No.2 or not
(Please insert the enclosed short pin, if you do not want to use Camera No.2)
