1. Monitor : You can check the visitor.
2. Microphone : You can talk with the visitor.
3. Speaker : You can hear the calling sound from the door camera.
4. On/Off & status LED :
Show blue light when the monitor is turned on, no light when off.
5. Monitor Button : Press to see images from camera.
6. interphone Button : Press to call interphone.
7. Door Release Button : Press to open the door.
8. Talk Button : Press to talk with door camera.
9. Talk Sound Level Control : Use to adjust sound level during talking.
10. Call Sound Level Control : Use to adjust sound level of calling sound.
11. MENU Button :
Press to enter Menu for display adjustment, calling sound setting, product
information etc.
12. Select Button : Press to select on menu.
13. Up Button : Press to move up on menu.
14. Down Button : Press to move down on menu.
15. Power Switch : Used to turn on/off power of the product.
16. Connector Terminal :
Used to connect other devices like door camera, door panel, or program update
tool.
Description
1 Monitor 10 Call Sound Level Control
2 Microphone 11 Menu Button
3 Speaker 12 Select Button
4 On/Off & status LED 13 Up Button (△)
5 Monitor Button 14 Down Button (▽)
6 Interphone Button 15 Power Switch
7 Door Release Button 16 Connector Terminal
8 Talk Button
9 Talk Sound Level Control
No. DescriptionNo.

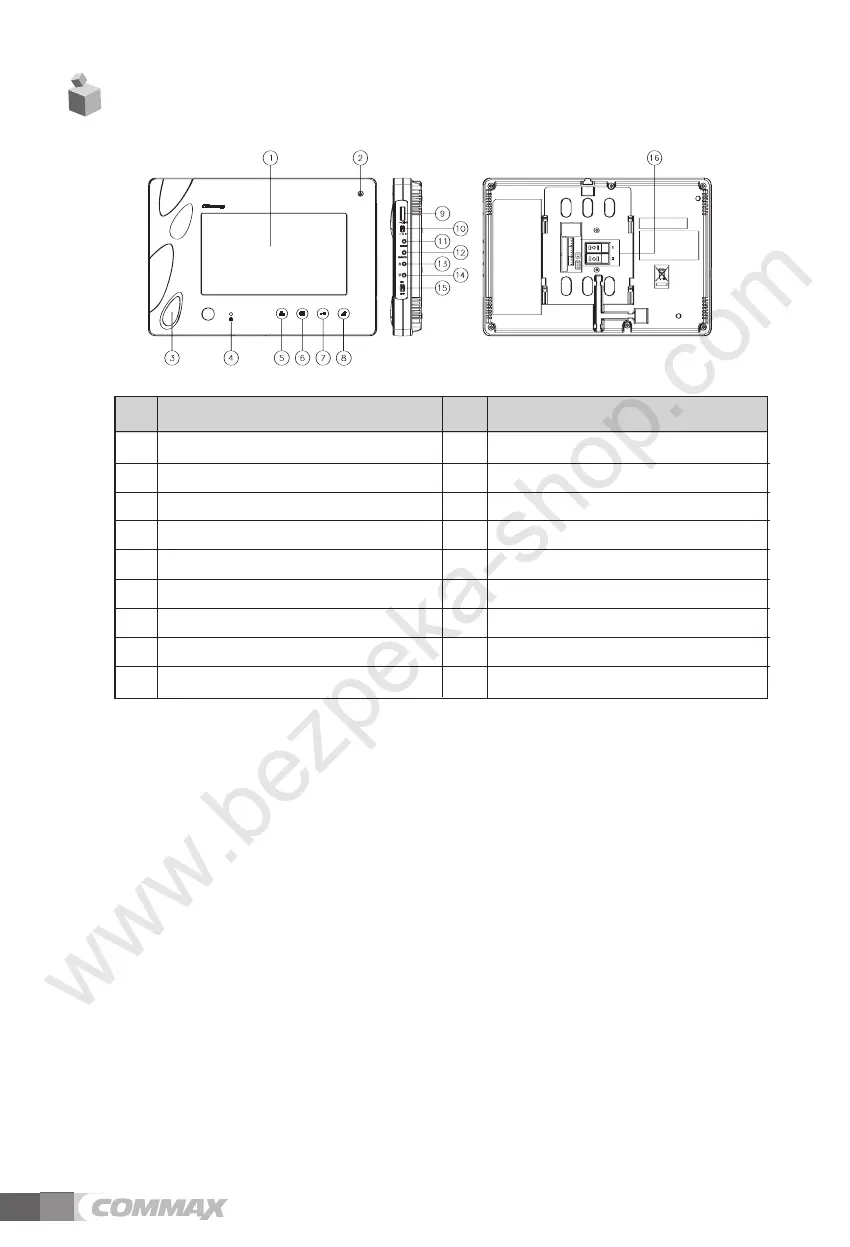

2. Product Overview
