Commax DRC-GAC - Video out Impedance Adjustment

- 24-
Press the Program button (P).
Enter the Management PIN.
Press the
Call button (E).
The current capacity
is displayed.
Press the
Call button (E).
Press the
Call button (E).
Press the Program Number (8).
Select the Impedance
0: Short Distance
1: Long Distance
Impedance selection updated
ex) Impedance Adjusted
short distance
✽ P - Building (Management) PIN - E - 6 - E - 0 - E: Short Distance
✽
P - Building (Management) PIN - E - 6 - E - 1 - E: Long Distance
✽
By default, the unit is set for short distance.
Do not change if possible.

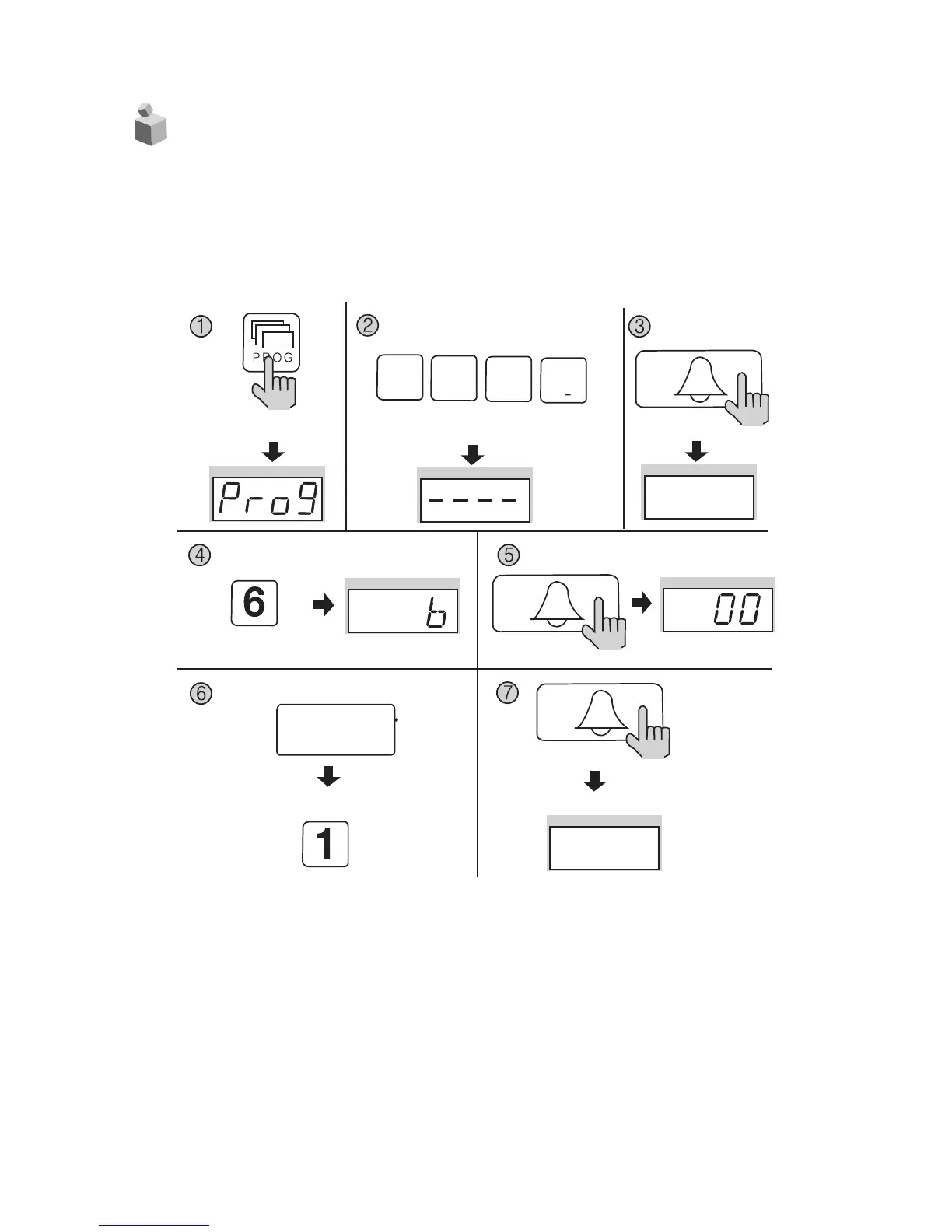

① Press the Program button (P). (‘Prog’will appear)
②
Enter the Building (Management) PIN.
③ Press the Call button (E).
④
Press number 7 (Wiring Method Selection).
⑤
Press the Call button (E). (Previous selection is displayed)
⑥ Select a wiring method.
✽
0 : 0 : Melody
✽
1: Bell (Ringer)
⑦ Press the Call button (E). (Save new setting)
14. Video Out Impedance Adjustment
