Commax Fineview CDV-70H User Manual

8. Wiring

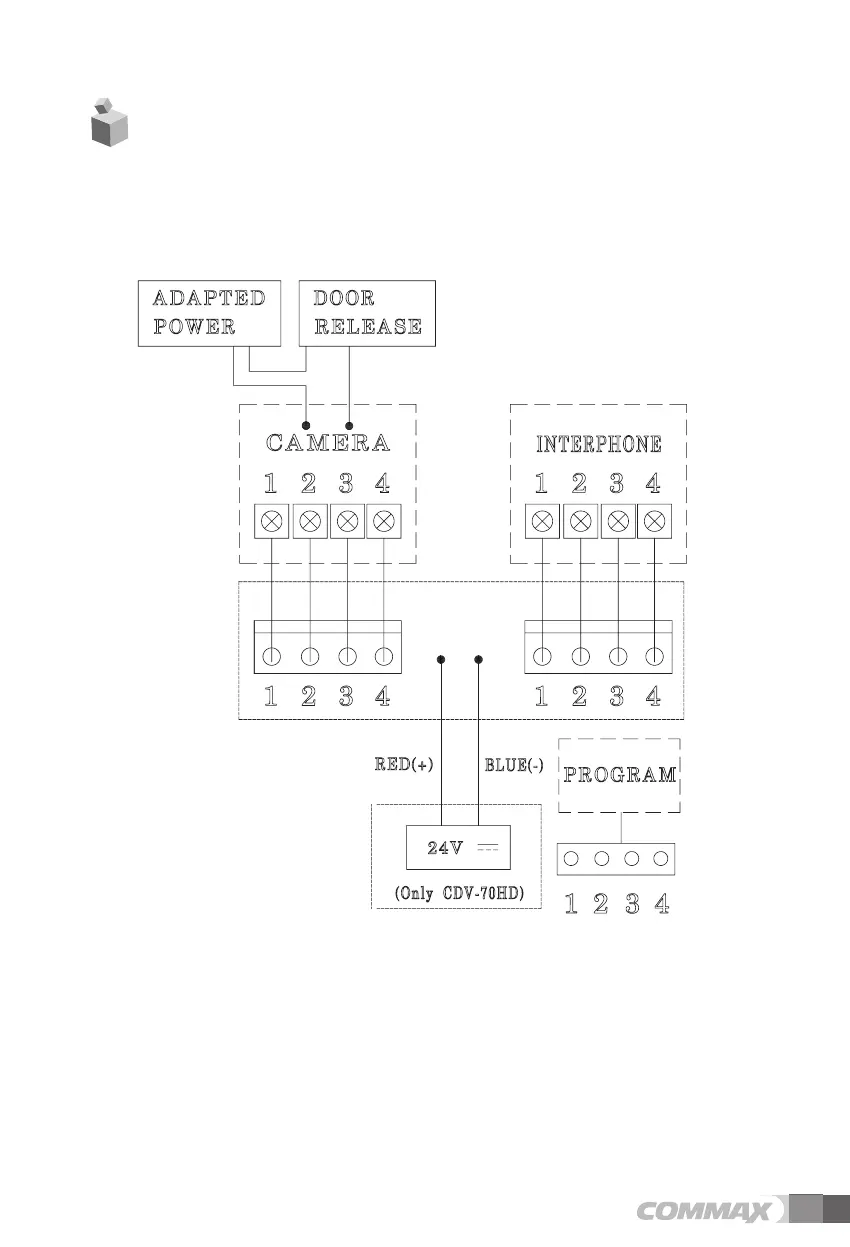

The wiring of this equipment is as follows.
* Camera connector polarity
1. Red : Voice 2. Blue : GND 3. Yellow : Power(+12V) 4. White : Video
7.
Installation
2. Installation Method of camera
Note
① Do not install the camera where
it is exposed to Direct sunlight
② Keep cleaning up its lens to
capture good views.
1. Installation Method of camera monitor
Note
① Avoid the range of direct sunlight
② Recommended height is pertinent
from 1450 ~ 1500mm
③ Avoid the installation near magnetic
activity, humid temperatures and gas
8 9
