USEFUL INFO
COMMENCAL / P.05

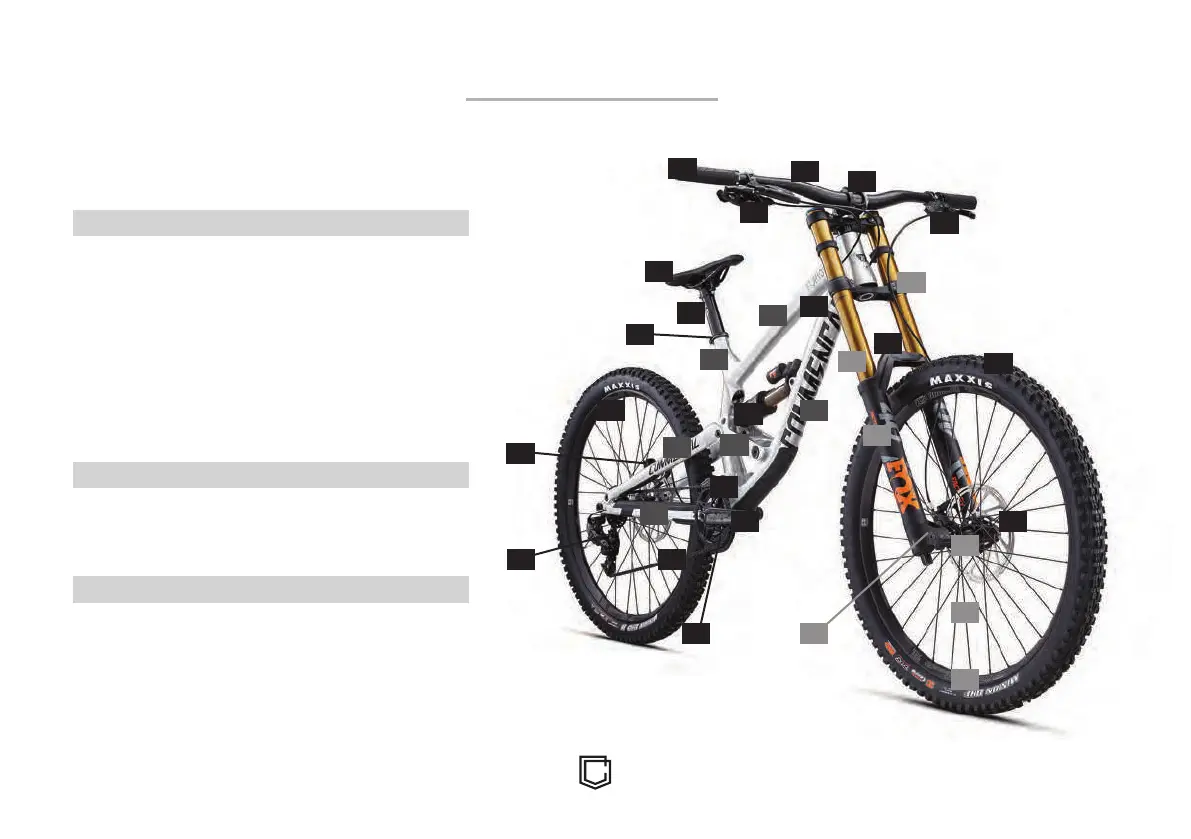

LABELLED DIAGRAM
01
a1
a2
a3
a4
a5
a6
09
10
02
b
c
d
e
f
g
h
04
05
03
12
14
15
16
1718
13
19
20
11
06
07
08
01 - Frame
02 - Fork
03 -Wheel
04 - Disc
05 - Brake Caliper
06 - Brake lever
07 - Handlebar
08 - Stem
09 - Seat Clamp
10 - Seatpost
11 - Shifter
12 - Tire
13 - Rear Shock
14 - Crank
15 - Chain Guide
16 - Chainring
17 - Chain
18 - Derailleur
19 - Saddle
20 - Grip
a1 - Toptube
a2 - Down Tube
a3 - Seat Tube
b - Crown
c - Stanchion
d - Lowers
e - Axle
f - Hub
g - Spoke
h - Rim
a4 - Rocker / Clevis
a5 - Seatstay
a6 - Chainstay
FORK AND WHEELS
FRAME
FULL BIKE
Parts designation
