Commencal FCB - Assembly; Tools and Torque Table; Tool List

TOOL LIST
Find below the contents of the optional
tool kit.
The different logos on the diagram will
help you to understand what tools are
needed for every assembly step.

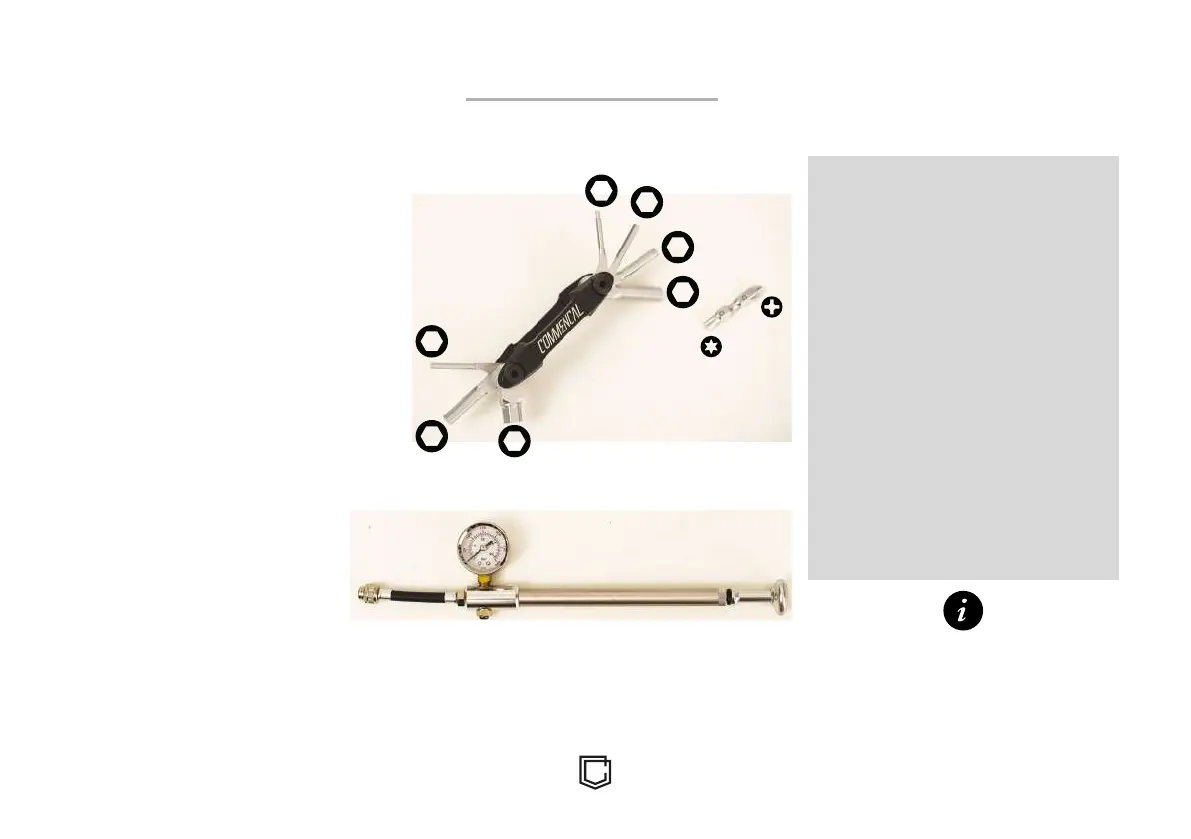

– 1x MULTI-TOOL
– Allen keys T.2/2,5/3/4/5/6/8mm
- Torx key T.25
- Cross head screwdriver PH2
– 1x HIGH PRESSURE PUMP
for your fork and rear shock,
if air sprung.
2
2.5
3
4
5
PH2
25
6
8
For frame contact system, please refer to
relevant bolt marking for
torque information.
TORQUE TO RESPECT
Stem - Steerer Tube
Stem - Handlebar Cap
Brake Caliper
Speed Sensor
Derailleur
Brake Lever
Cassette
Seat Clamp
Headset
Chainring
Grip
Pedals
Disc
5,5N.m
5,5N.m
8-10N.m
2,5-4Nm
8-10N.m
2,5-4Nm
40N.m
5-6N.m
3N.m
9N.m
2,5-4Nm
38N.m
6N.m
Torque tightening values indicated
in the instructions for tting the
saddle onto the seat post.
Torque tightening indicated for
xing the handlebar and stem.
