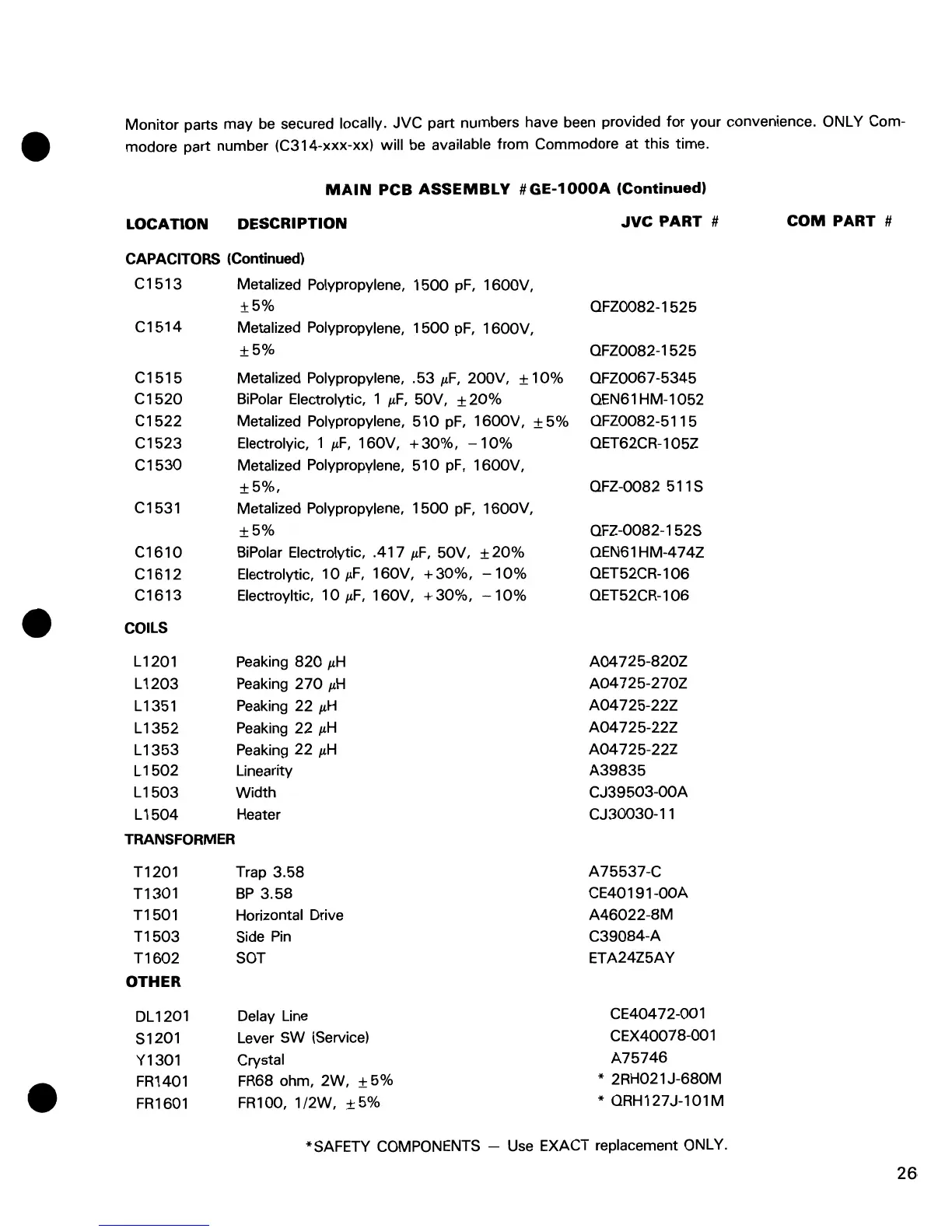

Monitor parts may
be
secured locally. JVC part numbers have been provided for your convenience. ONLY Com-
modore part number (C314-xxx-xx) will
be
available from Commodore at this time.
MAIN
PCB
ASSEMBLY
#GE-1000A
(Continued)
LOCATION
DESCRIPTION
JVC PART
#
COM
PART #
CAPACITORS (Continued)
C1513
Metalized Polypropylene,
1500
pF,
1600V,
±5%
OFZ0082-1525
C1514
Metalized Polypropylene,
1500
pF,
1600V,
±5%
OFZ0082-1525
C1515 Metalized Polypropylene, .53
",F,
200V, ± 10%
OFZ0067-5345
C1520
BiPolar
Electrolytic, 1
JlF,
50V, ± 20%
OEN61
HM-1
052
C1522 Metalized Polypropylene,
510
pF,
1600V,
±5%
OFZ0082-5115
C1523
Electrolyic, 1
",F,
160V,
+30%,
-10%
OET62CR-105Z
C1530 Metalized Polypropylene, 510
pF,
1600V,
±5%,
OFZ-0082
511
S
C1531 Metalized Polypropylene,
1500
pF,
1600V,
±5%
OFZ-0082-152S
C1610
BiPolar
Electrolytic, .417
",F,
50V,
±20%
OEN61HM-474Z
C1612
Electrolytic,
10
",F,
160V,
+30%,
-10%
OET52CR-106
C1613 Electroyltic,
10
",F,
160V,
+30%,
-10%
OET52CR-106
COILS
L1201
Peaking
820
",H
A04725-820Z
L1203 Peaking
270
JlH
A04725-270Z
L 1351
Peaking
22
",H
A04725-22Z
L1352 Peaking 22
",H
A04725-22Z
L1353 Peaking 22
JlH
A04725-22Z
L1502 Linearity
A39835
L1503 Width
CJ39503-00A
L1504
Heater
CJ30030-11
TRANSFORMER
T1201 Trap 3.58
A75537-C
T1301
BP
3.58
CE40191-00A
T1501
Horizontal Drive
A46022-8M
T1503
Side
Pin
C39084-A
T1602
SOT
ETA24Z5AY
OTHER
DL1201
Delay
Line
CE40472-001
S1201
Lever SW (Service)
CEX40078-001
Y1301
Crystal
A75746
FR1401
FR68
ohm, 2W, ± 5%
* 2RH021 J-680M
FR1601
FR100, 1/2W,
±5%
* ORH127J-101M
*SAFETY
COMPONENTS
-
Use
EXACT replacement
ONLY.
26
