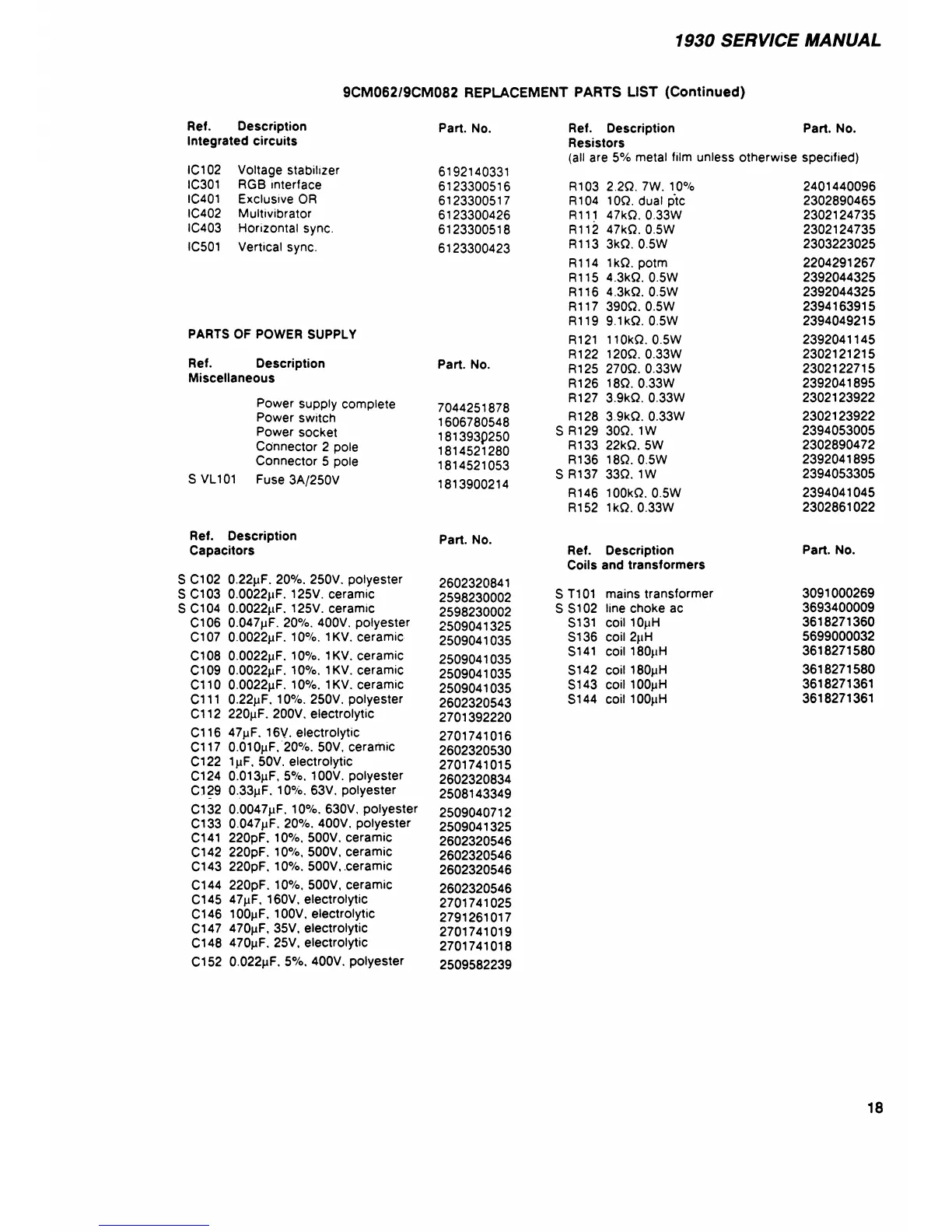

1930 SERVICE MANUAL
9CM062/9CM082 REPLACEMENT PARTS LIST (Continued)
Ref. Description Part. No.
Integrated circuits
IC102 Voltage stabilizer
IC301 RGB interface
IC401 Exclusive OR
IC402 Multivibrator
IC403 Horizontal sync.
6192140331
6123300516
6123300517
6123300426
6123300518
IC501 Vertical sync.
6123300423
PARTS OF POWER SUPPLY
Ref. Description
Miscellaneous
Power supply complete
Power switch
Power socket
Connector 2 pole
Connector 5 pole
S VL101 Fuse 3A/250V
Part. No.
7044251878
1606780548
181393P250
1814521280
1814521053
1813900214
Ref. Description Part. No.
Resistors
(all are 5% metal film unless otherwise specified)
R103
2.2Q. 7W. 10%
2401440096
R104
10Q. dual ptc
2302890465
R111 47kQ. 0.33W
2302124735
R112
47kQ. 0.5W
2302124735
R113
3kQ. 0.5W
2303223025
R114
1kQ. potm
2204291267
R115
4.3kQ. 0.5W
2392044325
R116
4.3kQ. 0.5W
2392044325
R117 390Q. 0.5W
2394163915
R119
9.1kQ. 0.5W
2394049215
R121
110kQ. 0.5W
2392041145
R122
120Q. 0.33W
2302121215
R125
270Q. 0.33W
2302122715
R126
18Q. 0.33W
2392041895
R127
3.9kQ. 0.33W
2302123922
R128
3.9kQ. 0.33W
2302123922
S R129
30Q. 1W
2394053005
R133
22kQ. 5W
2302890472
R136
18Q. 0.5W
2392041895
S R137
33Q. 1W
2394053305
R146 100kQ. 0.5W 2394041045
R152 1kQ. 0.33W 2302861022
Ref. Description part. n 0.
Capacitors
SC102 0.22pF. 20%. 250V. polyester 2602320841
S C103 0.0022pp. 125V. ceramic 2598230002
S C104 0.0Q22pF. 125V. ceramic 2598230002
C106 0.047pF. 20%. 400V. polyester 2509041325
C107 0.0022pF. 10%. 1KV. ceramic 2509041035
C108 0.0022pF. 10%. 1 KV. ceramic 2509041035
C109 0.0022pF. 10%. 1KV. ceramic 2509041035
C110 0.0022pF. 10%. 1KV. ceramic 2509041035
C111 0.22pF, 10%. 250V, polyester 2602320543
C112 220pF. 200V, electrolytic 2701392220
C116 47pF. 16V. electrolytic 2701741016
C117 0.01 OpF, 20%. 50V, ceramic 2602320530
C122 1pF, 50V. electrolytic 2701741015
C124 0.013pF, 5%, 100V. polyester 2602320834
C l29 0.33pF. 10%, 63V, polyester 2508143349
C132 0.0047pF, 10%. 630V, polyester
C133 0.047pF. 20%. 400V, polyester
C141 220pF. 10%, 500V, ceramic
C142 220pF. 10%, 500V, ceramic
C143 220pF, 10%. 500V, ceramic
2509040712
2509041325
2602320546
2602320546
2602320546
C144 220pF. 10%, 500V, ceramic
C145 47pF, 160V, electrolytic
C146 lOQpF, 100V, electrolytic
C147 470pF, 35V, electrolytic
C148 470pF, 25V, electrolytic
2602320546
2701741025
2791261017
2701741019
2701741018
C152 0.022pF, 5%, 400V. polyester 2509582239
Ref. Description
Coils and transformers
S T101 mains transformer
SS102 line choke ac
S131 coil 10pH
S136 coil 2pH
5141 coil 180pH
5142 coil 180pH
5143 coil lOOpH
5144 coil 100pH
Part. No.
3091000269
3693400009
3618271360
5699000032
3618271580
3618271580
3618271361
3618271361
18
