1930 SERVICE MANUAL

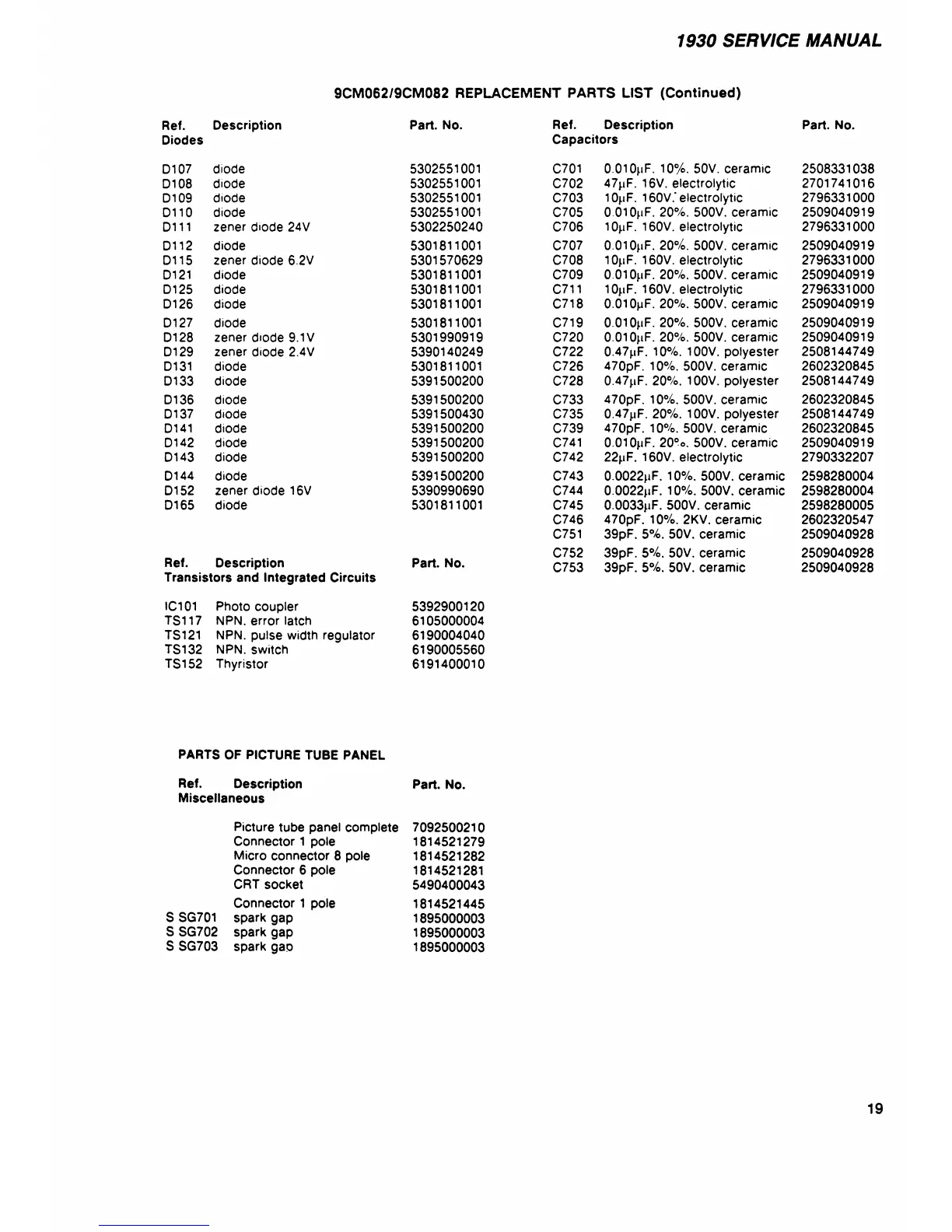

9CM062/9CM082 REPLACEMENT PARTS LIST (Continued)
Ref.
Description Part. No.
Ref. Description Part. No.
Diodes
Capacitors
D107 diode
5302551001 C701
0.010^F. 10%. 50V. ceramic 2508331038
D108
diode
5302551001 C702
47jjF. 16V. electrolytic 2701741016
D109
diode
5302551001
C703
10jjF. 160V.* electrolytic 2796331000
D110
diode
5302551001 C705
0.01 O^iF. 20%. 500V. ceramic
2509040919
D ill
zener diode 24V
5302250240 C706
10j.iF. 160V. electrolytic 2796331000
D112
diode 5301811001
C707
0.01 O^F. 20%. 500V. ceramic
2509040919
D115
zener diode 6.2V 5301570629 C708
10pF. 160V. electrolytic 2796331000
D121
diode 5301811001
C709
0.010|jF. 20%. 500V. ceramic 2509040919
D125
diode 5301811001
C711
10pF. 160V. electrolytic
2796331000
D126
diode 5301811001
C718
0.010|iF. 20%. 500V. ceramic 2509040919
D127
diode 5301811001
C719
0.01 OpF. 20%. 500V. ceramic
2509040919
D128
zener diode 9.1V 5301990919
C720
0.01 O^iF. 20%. 500V. ceramic
2509040919
D129
zener diode 2.4V
5390140249 C722
0.47|.iF. 10%. 100V. polyester 2508144749
D131
diode 5301811001
C726
470pF. 10%. 500V. ceramic
2602320845
D133
diode
5391500200
C728
0.47}iF. 20%. 100V. polyester 2508144749
D136
diode 5391500200
C733
470pF. 10%. 500V. ceramic 2602320845
D137
diode
5391500430 C735
0.47jjF. 20%. 100V. polyester 2508144749
D141
diode
5391500200 C739
470pF. 10%. 500V. ceramic 2602320845
D142
diode
5391500200
C741
0.01 O^F. 20%. 500V. ceramic
2509040919
D143
diode
5391500200 C742
22j.iF. 160V. electrolytic
2790332207
D144
diode
5391500200 C743
0.0022nF. 10%. 500V. ceramic
2598280004
D152
zener diode 16V 5390990690
C744
0.0022nF. 10%. 500V. ceramic
2598280004
D165
diode 5301811001
C745
0.0033pF. 500V. ceramic 2598280005
C746
470pF. 10%. 2KV. ceramic
2602320547
C751
39pF. 5%. 50V. ceramic
2509040928
Ref. Description Part. No.
C752
C753
39pF. 5%. 50V, ceramic
39pF. 5%. 50V. ceramic
2509040928
2509040928
Transistors and Integrated Circuits
IC101
Photo coupler 5392900120
TS117
NPN. error latch
6105000004
TS121
NPN. pulse width regulator
6190004040
TS132
NPN. switch
6190005560
TS152
Thyristor
6191400010
PARTS OF PICTURE TUBE PANEL
Ret. Description Part. No.
Miscellaneous
S SG701
S SG702
S SG703
Picture tube panel complete 7092500210
Connector 1 pole 1814521279
Micro connector 8 pole 1814521282
Connector 6 pole 1814521281
CRT socket 5490400043
Connector 1 pole 1814521445
spark gap 1895000003
spark gap 1895000003
spark gap 1895000003
19
