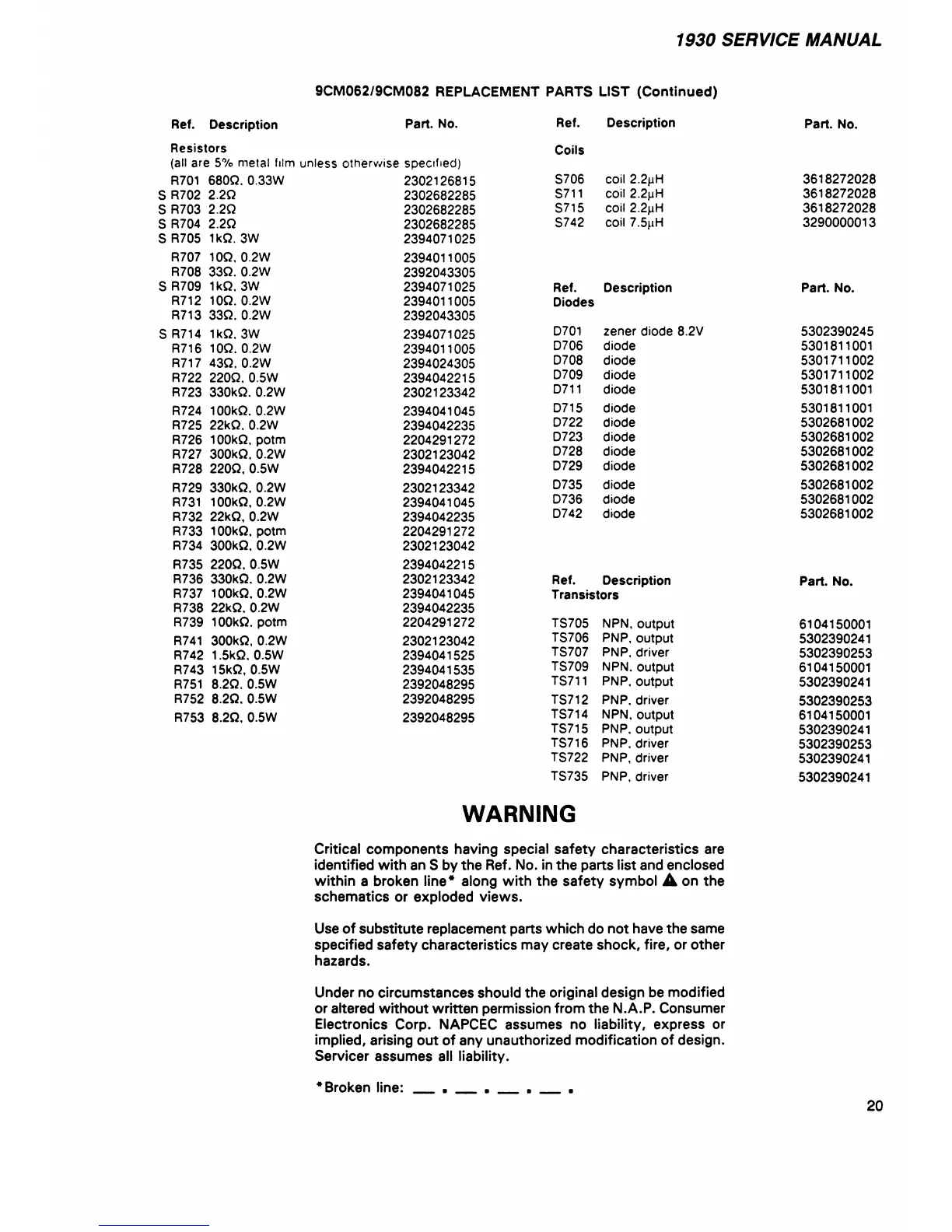

1930 SERVICE MANUAL
9CM062/9CM082 REPLACEMENT PARTS LIST (Continued)
Ref. Description
Part. No.
Ref.
Description
Part. No.
Resistors
Coils
(all are 5% metal film unless otherwise specified)
R701 680Q. 0.33W
2302126815
S706
coil 2.2|iH
3618272028
S R702 2.2Q
2302682285
S711 coil 2.2pH 3618272028
S R703 2.2Q
2302682285
S715
coil 2.2jjH 3618272028
S R704 2.2Q
2302682285
S742 coil 7.5|iH 3290000013
SR705 1kQ. 3W
2394071025
R707 10Q, 0.2W
2394011005
R708 33Q. 0.2W
2392043305
S R709 1kQ. 3W
2394071025
Ref.
Description
Part. No.
R712 10Q. 0.2W
2394011005
Diodes
R713 33Q. 0.2W
2392043305
S R714 1kQ, 3W
2394071025
D701
zener diode 8.2V 5302390245
R716 10Q. 0.2W
2394011005
D706 diode
5301811001
R717 43Q. 0.2W
2394024305
D708
diode
5301711002
R722 220Q. 0.5W
2394042215
D709 diode
5301711002
R723 330kQ. 0.2W
2302123342
D711
diode
5301811001
R724 100kQ. 0.2W
2394041045
D715 diode
5301811001
R725 22kQ. 0.2W
2394042235
D722
diode
5302681002
R726 100kö, potm
2204291272
D723 diode
5302681002
R727 300kQ, 0.2W
2302123042
D728 diode
5302681002
R728 220Q, 0.5W
2394042215
D729 diode
5302681002
R729 330kQ, 0.2W
2302123342
D735
diode
5302681002
R731 100kQ, 0.2W
2394041045
D736 diode
5302681002
R732 22kQ, 0.2W
2394042235
D742
diode
5302681002
R733 100kQ, potm
2204291272
R734 300kQ, 0.2W
2302123042
R735 220Q. 0.5W
2394042215
R736 330kQ. 0.2W 2302123342
Ref. Description
Part. No.
R737 100kQ. 0.2W
2394041045
Transistors
R738 22kQ. 0.2W
2394042235
R739 100kO. potm 2204291272
TS705 NPN, output
6104150001
R741 300kQ, 0.2W
2302123042
TS706 PNP, output
5302390241
R742 1.5kQ. 0.5W
2394041525
TS707
PNP, driver
5302390253
R743 15kQ, 0.5W
2394041535
TS709
NPN. output
6104150001
R751 8.2Q. 0.5W
2392048295
TS711
PNP, output
5302390241
R752 8.2Q. 0.5W
2392048295
TS712
PNP. driver
5302390253
R753 8.2Q. 0.5W 2392048295
TS714
NPN, output
6104150001
TS715 PNP, output
5302390241
TS716
PNP. driver
5302390253
TS722
PNP, driver
5302390241
TS735
PNP, driver
5302390241
WARNING
Critical components having special safety characteristics are
identified with an S by the Ref. No. in the parts list and enclosed
within a broken line* along with the safety symbol A on the
schematics or exploded views.
Use of substitute replacement parts which do not have the same
specified safety characteristics may create shock, fire, or other
hazards.
Under no circumstances should the original design be modified
or altered without written permission from the N.A.P. Consumer
Electronics Corp. NAPCEC assumes no liability, express or
implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
•Broken line: ___
20
