GB-4
Monitor 1940/1942

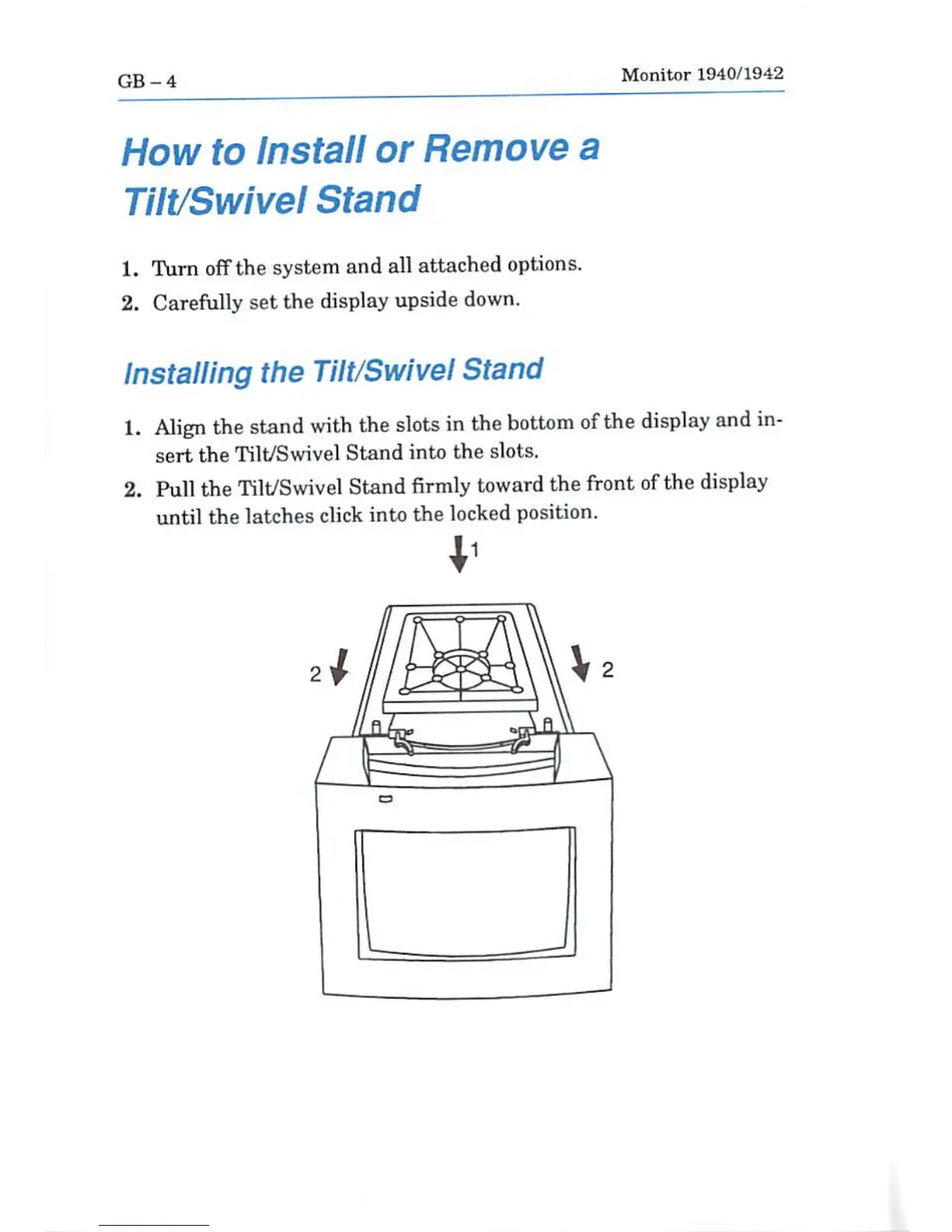

How to Install or Remove a
Tilt/Swivel Stand
1. Turn off the system and all attached options.
2. Carefully set the display upside down.
Installing the Tilt/Swivel Stand
1. Align the stand with the slots in the bottom of the display and in
sert the Tilt/Swivel Stand into the slots.
2. Pull the Tilt/Swivel Stand firmly toward the front of the display
until the latches click into the locked position.
.1
V
