Commodore 1940 - Control Locations and Functions

GB _ 6 Monitor 1940/1942

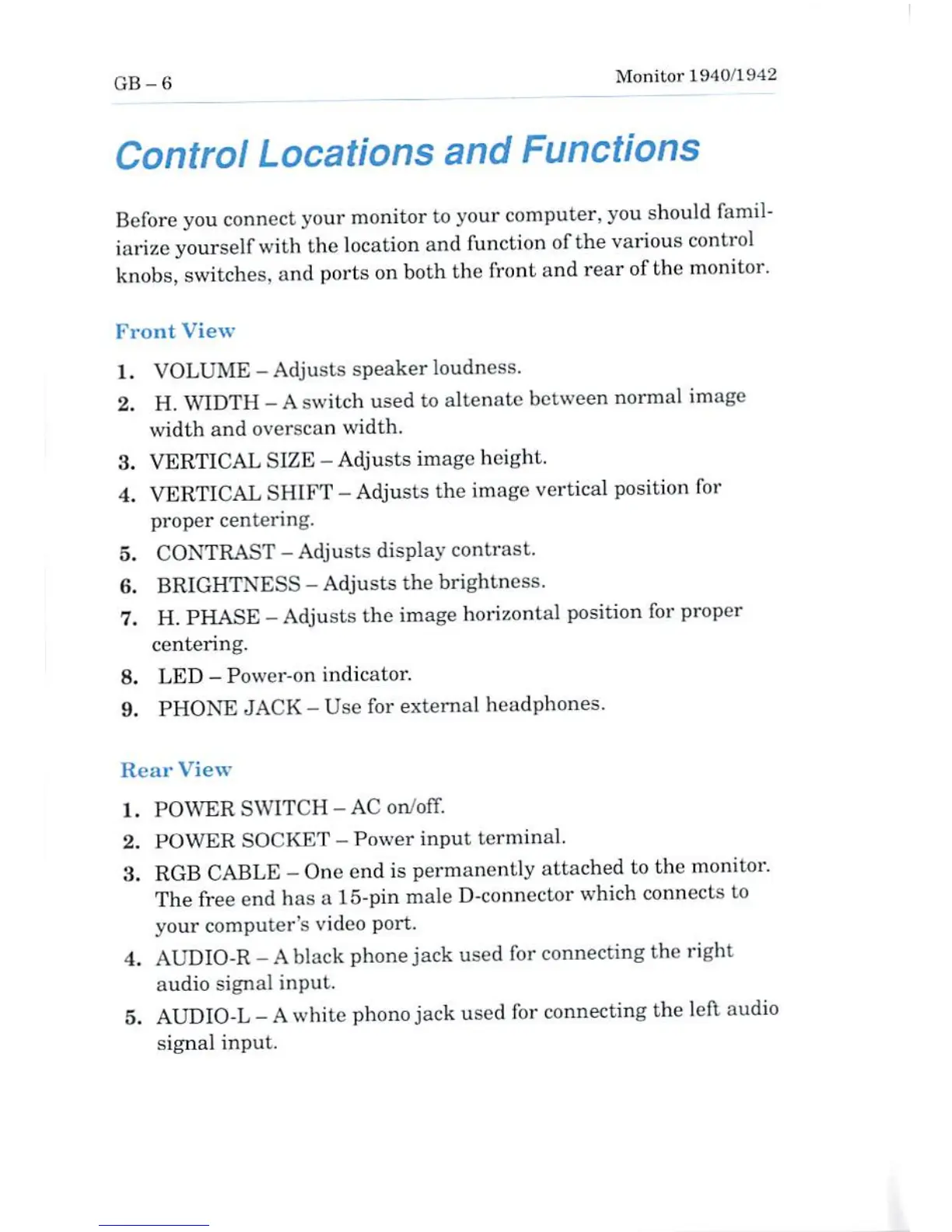

Control Locations and Functions
Before you connect your monitor to your computer, you should famil
iarize yourself with the location and function of the various control
knobs, switches, and ports on both the front and rear of the monitor.
Front View
1. VOLUME-Adjusts speaker loudness.
2. H. WIDTH - A switch used to altenate between normal image
width and overscan width.
3. VERTICAL SIZE - Adjusts image height.
4. VERTICAL SHIFT - Adjusts the image vertical position for
proper centering.
5. CONTRAST - Adjusts display contrast.
6. BRIGHTNESS - Adjusts the brightness.
7. H. PHASE - Adjusts the image horizontal position for proper
centering.
8. LED - Power-on indicator.
9. PHONE JACK - Use for external headphones.
Hear View
1. POWER SWITCH -AC on/off.
2. POWER SOCKET - Power input terminal.
3. RGB CABLE - One end is permanently attached to the monitor.
The free end has a 15-pin male D-connector which connects to
your computer's video port.
4. AUDIO-R-Ablack phone jack used for connecting the right
audio signal input.
5. AUDIO-L - A white phono jack used for connecting the left audio
signal input.
