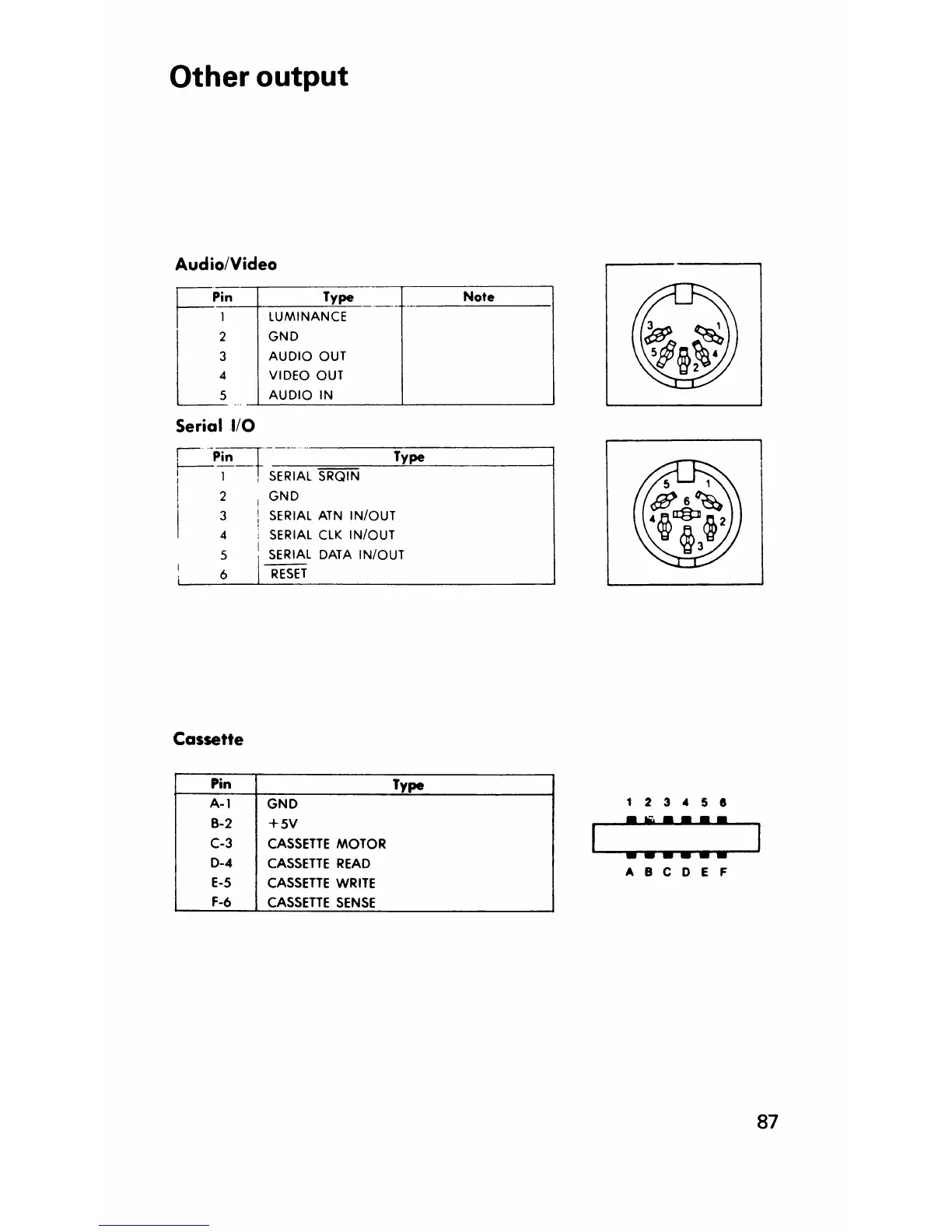

Other output
Audio/Video
Pin Type
Note
1 LUMINANCE
2 GND
3
AUDIO OUT
4
VIDEO OUT
5 AUDIO IN
Serial I/O
Pin
1 Type
1
! SERIAL SRQIN
2 , GND
3
SERIAL ATN IN/OUT
4
1 SERIAL CLK IN/OUT
5
! SERIAL DATA IN/OUT
i ^
| RESET
Cassette
Pin
Type
A-l
GND
B-2
+ 5V
C-3
CASSETTE MOTOR
D-4
CASSETTE READ
E-5 CASSETTE WRITE
F-6
CASSETTE SENSE
87
