Manual for ION™-M7P/17P (M-cab)
& Subassemblies
Page 26 MF0145A7A_uc_FCC_modif.doc

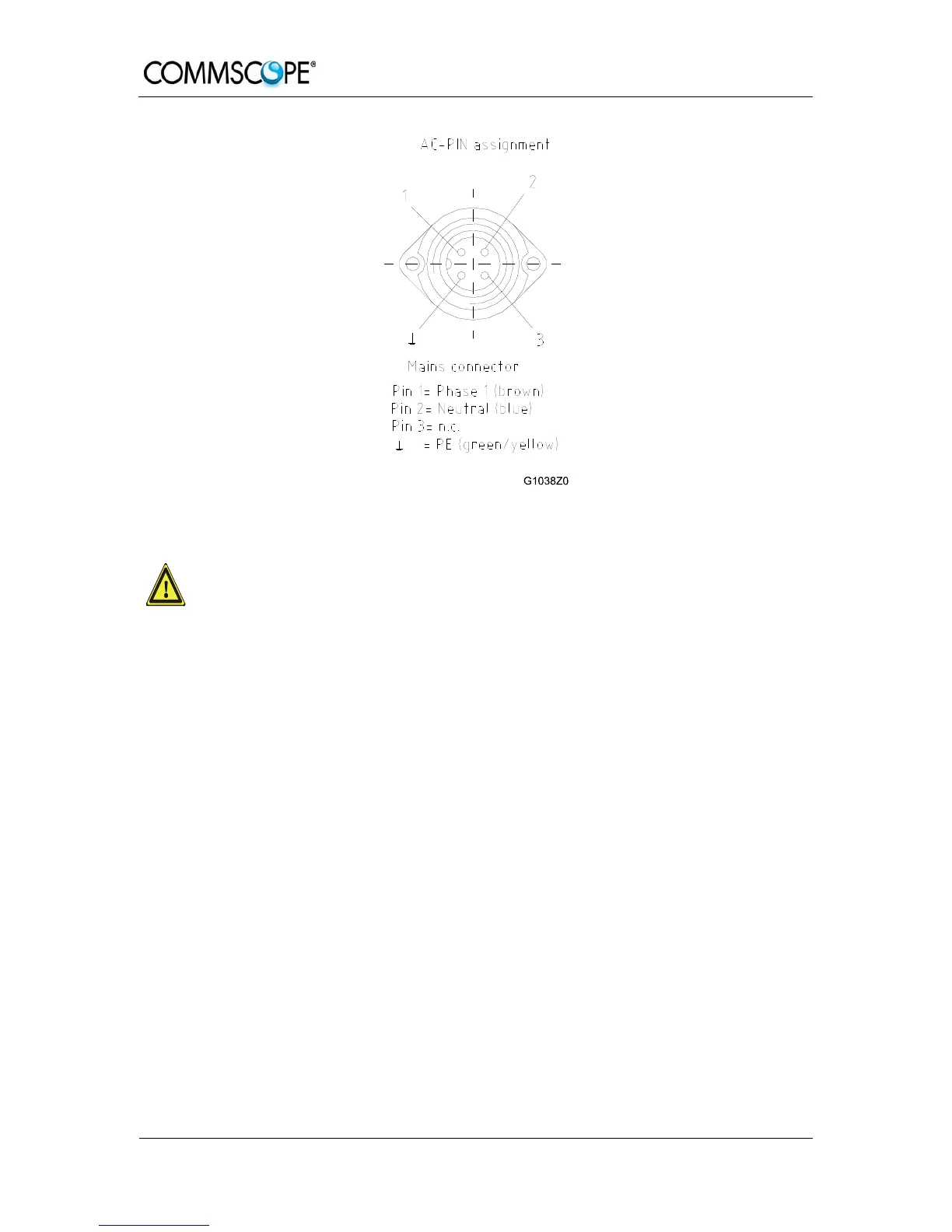

figure 4-8 AC mains plug
For the AC power supply connection, a minimum cross section of 1.5
mm
2
is required. Each wire must observe the applicable national
regulations regarding loop impedance, voltage drop, and methods of
installation. Make sure to connect the correct voltage to the unit.
 Note: Do not connect or disconnect the power cord at the mains connector
while power is on. Turn off mains power * before connecting the
power cord at the Remote Unit, then, engage mains again.
* Mains power must be interruptible with an external mains breaker. For the mains breaker,
observe the following recommendation:
120 Volt / 20 Amp max. or 240 Volt / 16 Amp, single-phase, 50 / 60 Hz AC service is needed,
i.e. the external AC breaker should be 20 Amps max. for 120-Volt service or 16 Amps for 240-
Volt service.
4.3. CONNECTION OF THE ANTENNA CABLES
The Remote Unit has N-type antenna connectors. Please refer to section 4.2.2
Connections for its location. Refer to the corresponding documentation of the
connector manufacturer for mounting the cable connectors.
The bending radius of the antenna cables must remain within the given
specifications.
Consider the type of cable best suited for the antenna. Remember that a cable with
higher loss is less expensive but impairs performance.
