CommScope ValuLine VHLP3 Series - Feed Attachment and Alignment; Feed Assembly (6-11 GHz); Feed Assembly (13-38 GHz)

1
D
D1
Apply conductive
grease to
surface indicated
SEE SAFETY
NOTE PAGE 4
Assemble 4x screws
Tighten screws to a torque of
1.4Nm
5%
2
6GHz, 7GHz and 11GHz feed shown assembled
1
D
D1
Apply conductive
grease to surface
indicated
SEE SAFETY
NOTE PAGE 4
Assemble 4x screws
Tighten screws to a torque of
1.4Nm
5%
2
13GHz and 38GHz feed shown assembled
Page 12 of 20
7706805

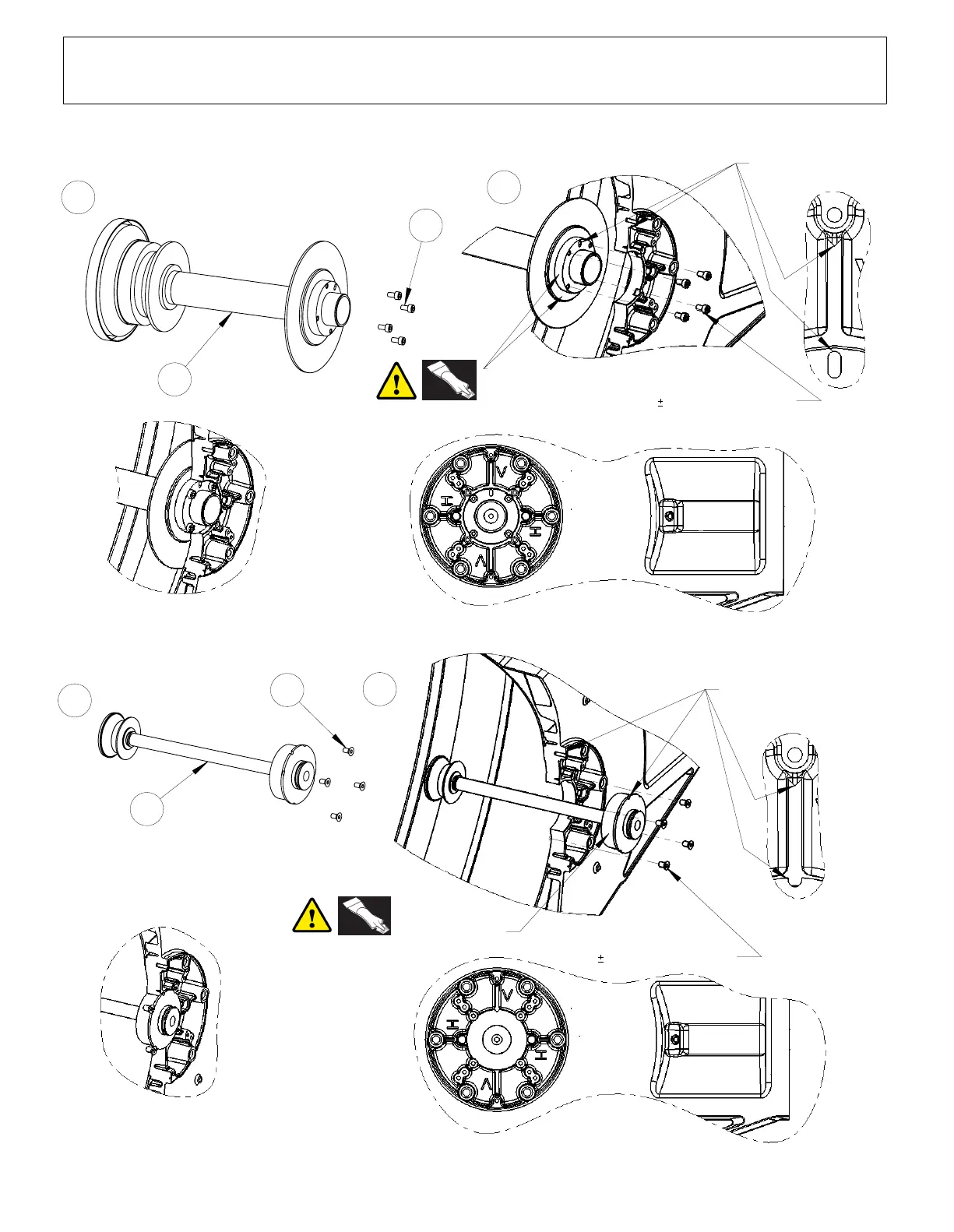

FEED ATTACHEMENT AND ALIGNMENT
SECTION 5 INSTALLATION
INSTRUCTIONS
Feed attachment and alignment
6GHz, 7GHz and 11GHz Feed Assembly
Align slot with rib
13GHz to 38GHz Feed Assembly
Align notch with rib
