B
C

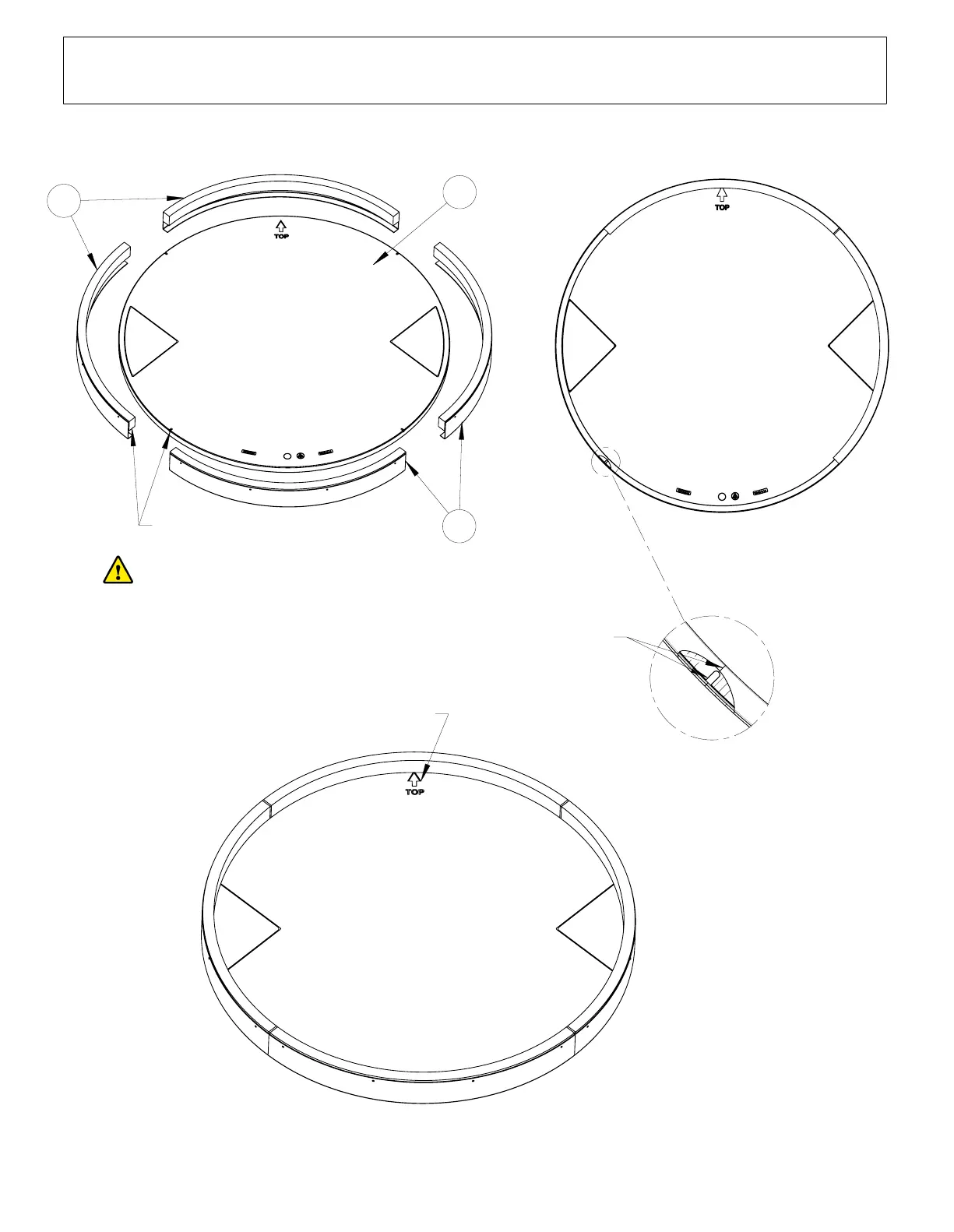

Align rim edges with
notches in radome.
B
Note
: The Polystyrene radome is not packing material.
Note position of
alignment arrow.
Rim edges aligned with
notches in radome.
Page 13 of 20
7706805
RADOME ATTACHMENT AND ALIGNMENT
SECTION 6
INSTALLATION
INSTRUCTIONS
Radome attachment and alignment
