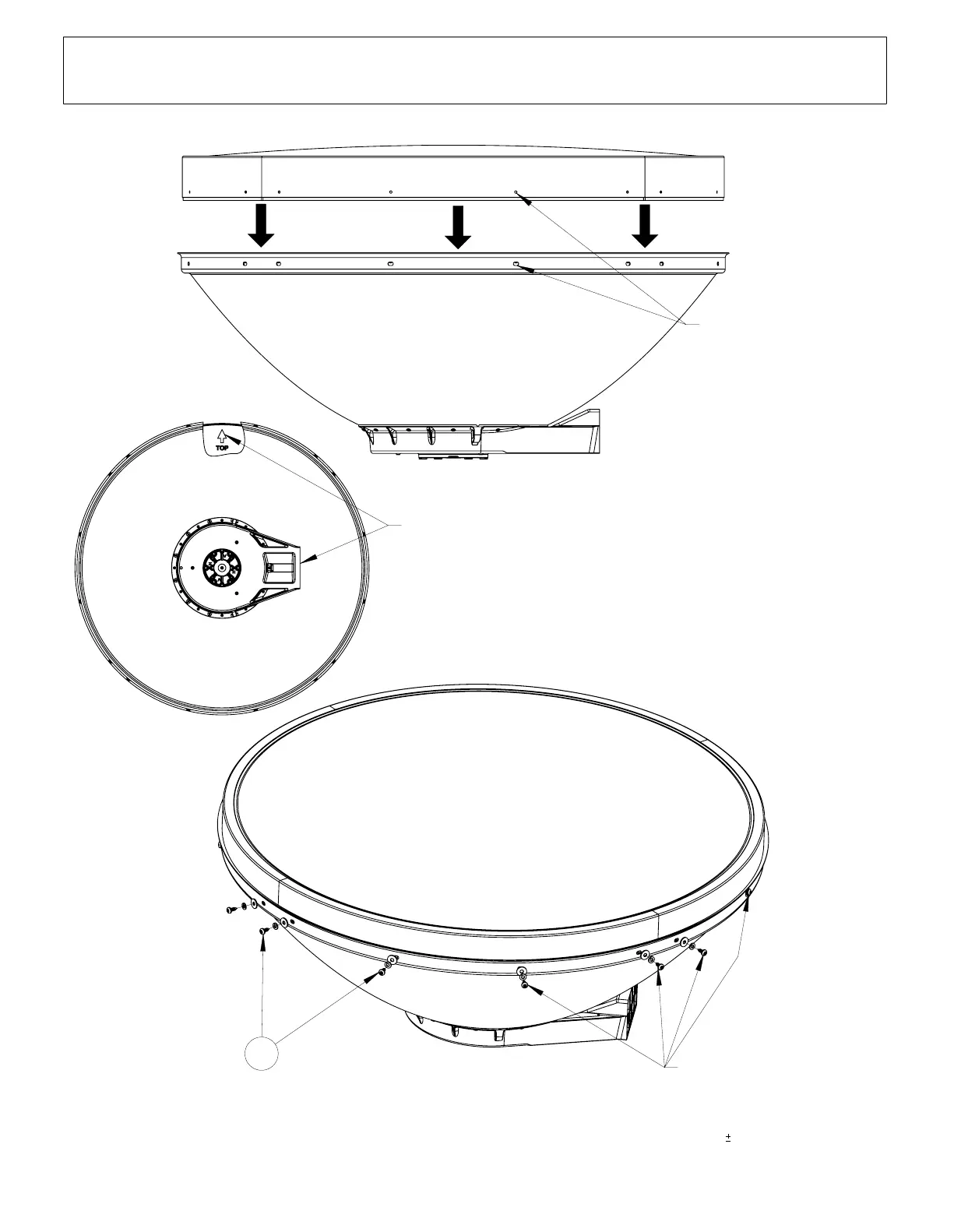

Align holes in rim with
slots in reflector
Note position of radome
alignment arrow to reflector
H
Page 14 of 20
7706805
RADOME ATTACHMENT AND ALIGNMENT
SECTION 6
INSTALLATION
INSTRUCTIONS
Assemble 16x self tapping
screws, lock washers and
washers in a diagonal
sequence.
Tighten screws to a torque
of 2Nm
5%
