Comnet CNGE11FX3TX8MS - Hardware Overview; Front Panel Components

INS_CNGE11FX3TX8MS[POE][HO] Rev. 11.6.17 PAGE 11
INSTRUCTION MANUAL CNGE11FX3TX8MS[POE][HO]
TECH SUPPORT: 1.888.678.9427

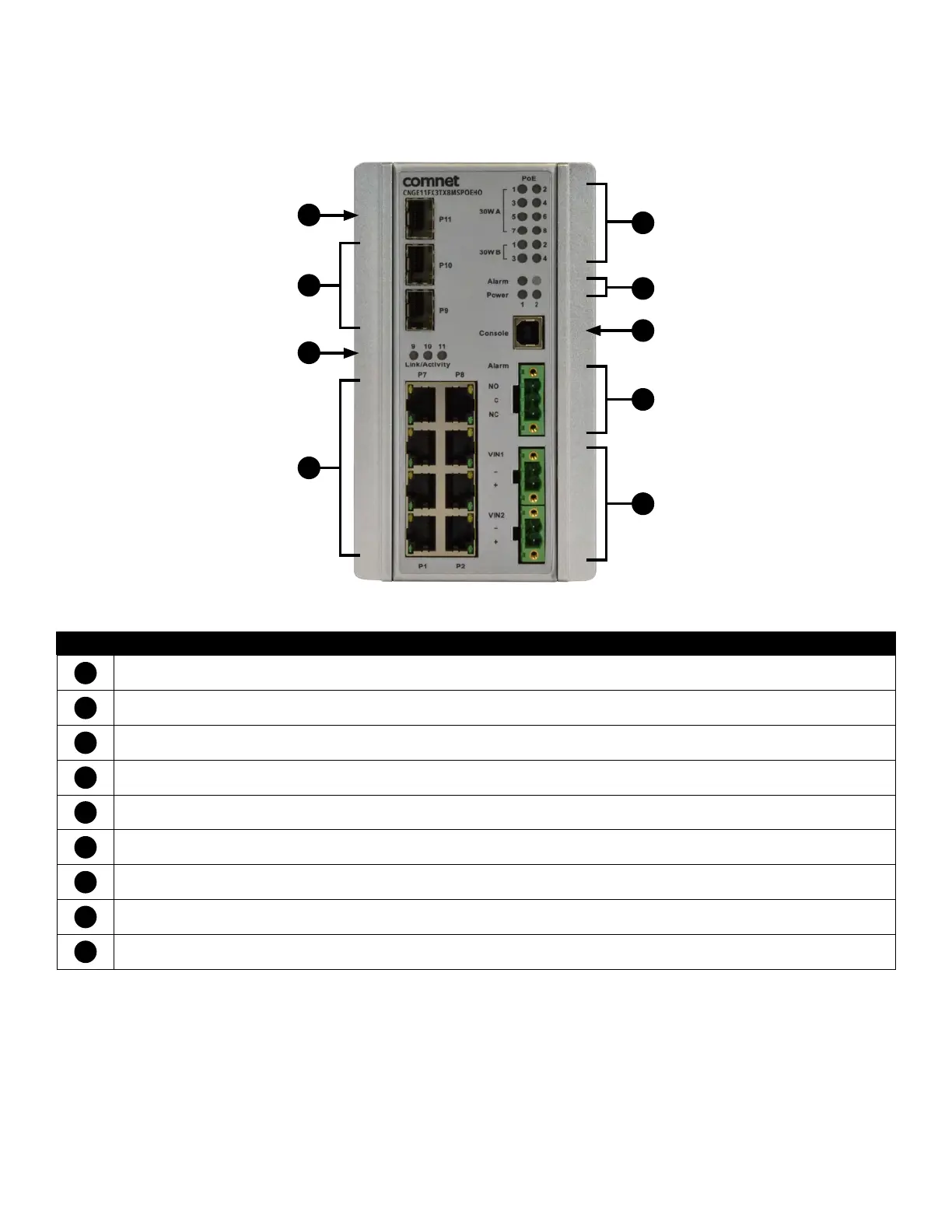

Hardware Overview
3
1
2
9
4
6
8
5
7
CNGE11FX3TX8MS[POE][HO]
Call-out Description
1
1 × 100/1000Base-FX SFP Port
2
2 × 100/1000/2500Base-FX SFP Ports
3
Link/Activity LED Indicators for SFP Ports
4
8 × 10/100/1000Base-TX RJ45 Ports
5
PoE LED Indicators (PoE models only)
6
Alarm and Power LED Indicators
7
USB Console Port
8
Fault Relay 3-Pin Terminal Block Connector
9
Redundant Power 2-Pin Terminal Block Connectors
