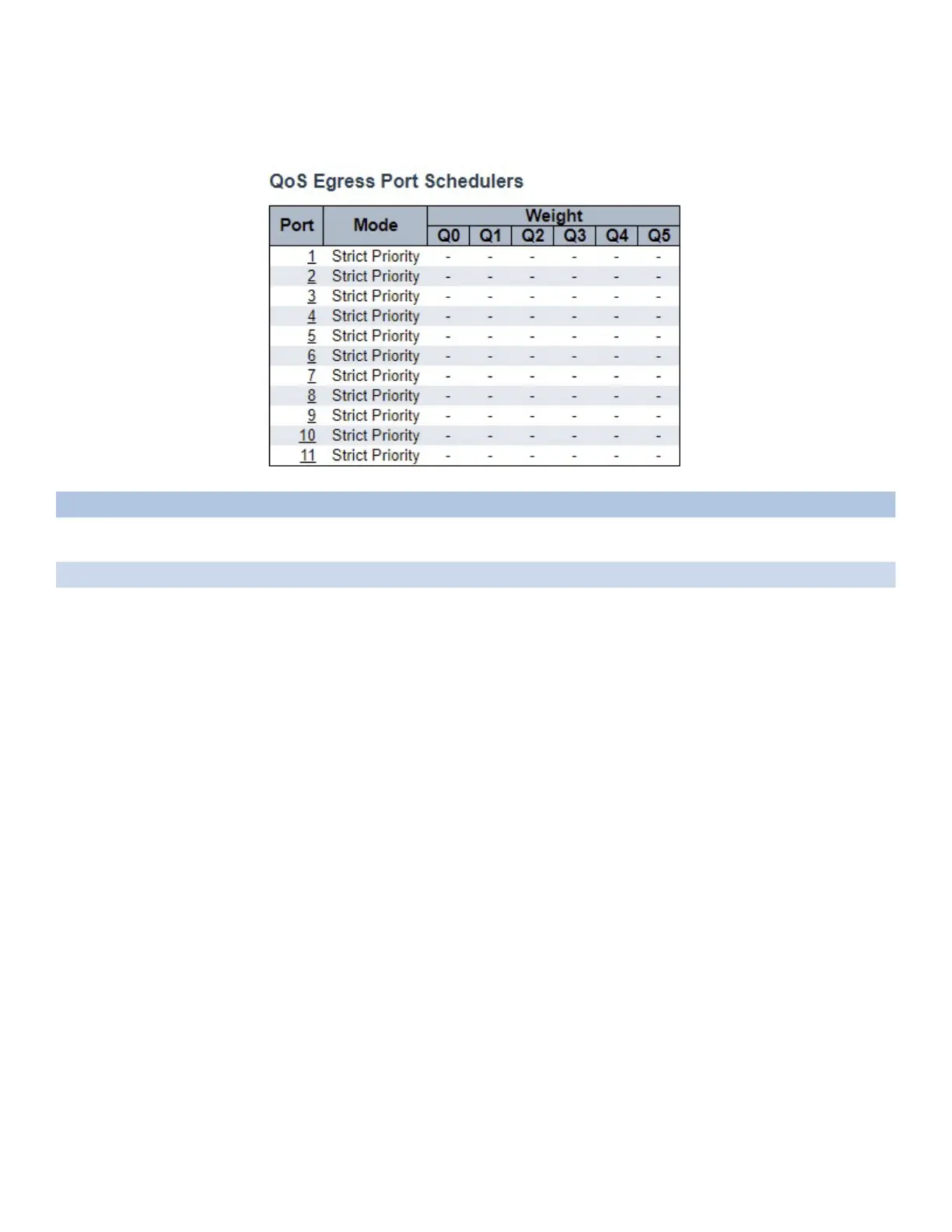

Port Scheduler
This page provides an overview of QoS Egress Port Schedulers for all switch ports.
Object Description
Port The logical port for the settings contained in the same row. Click on the port number in order to
configure the schedulers.
Mode Shows the scheduling mode for this port.
Qn Shows the weight for this queue and port.
