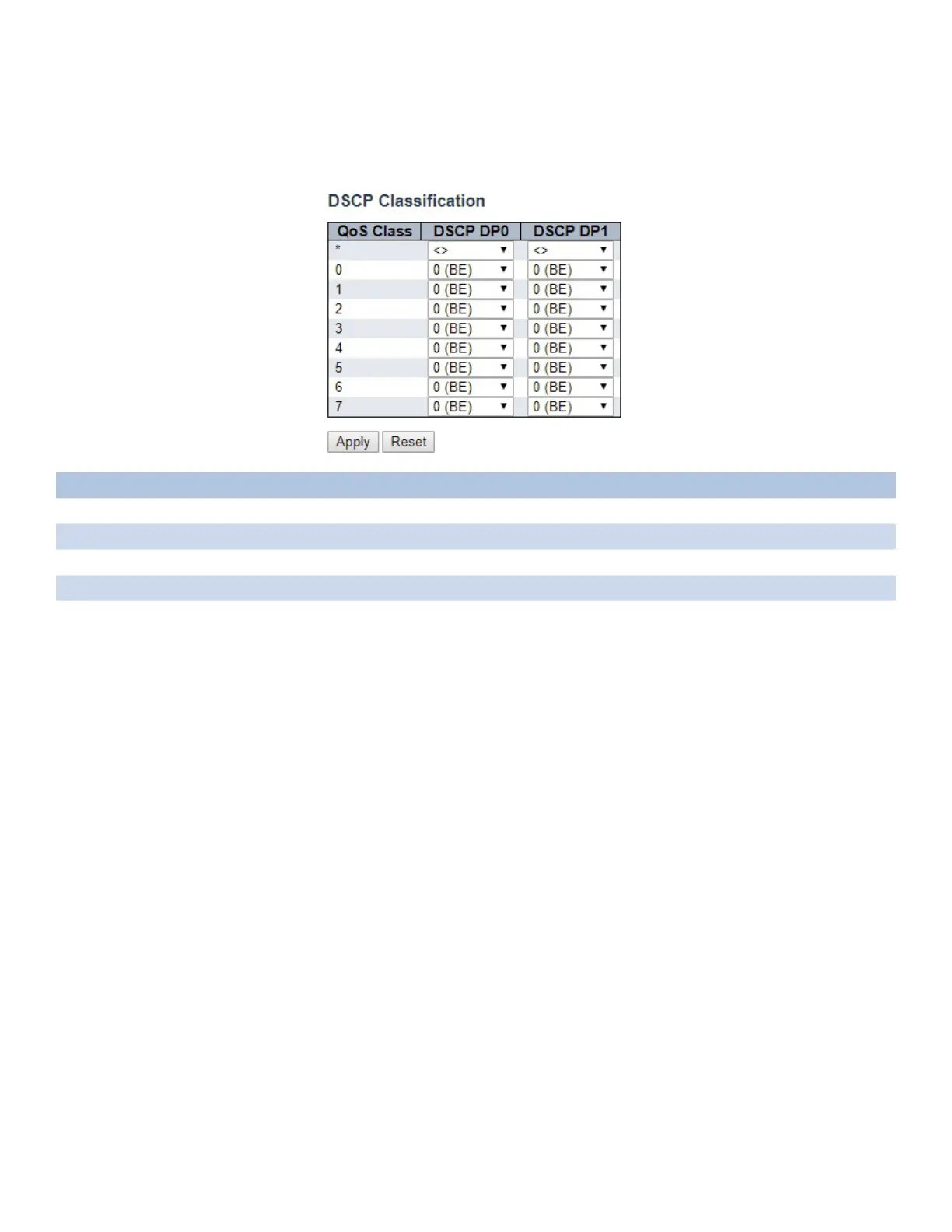

DSCP Classification
This page allows you to configure the mapping of QoS class and Drop Precedence Level to DSCP
value.
Object Description
QoS Class Actual QoS class.
DSCP DP0 Select the classified DSCP value (0-63) for Drop Precedence Level 0.
DSCP DP1 Select the classified DSCP value (0-63) for Drop Precedence Level 1.
Apply Click to apply changes.
Reset Click to revert to previous values.
