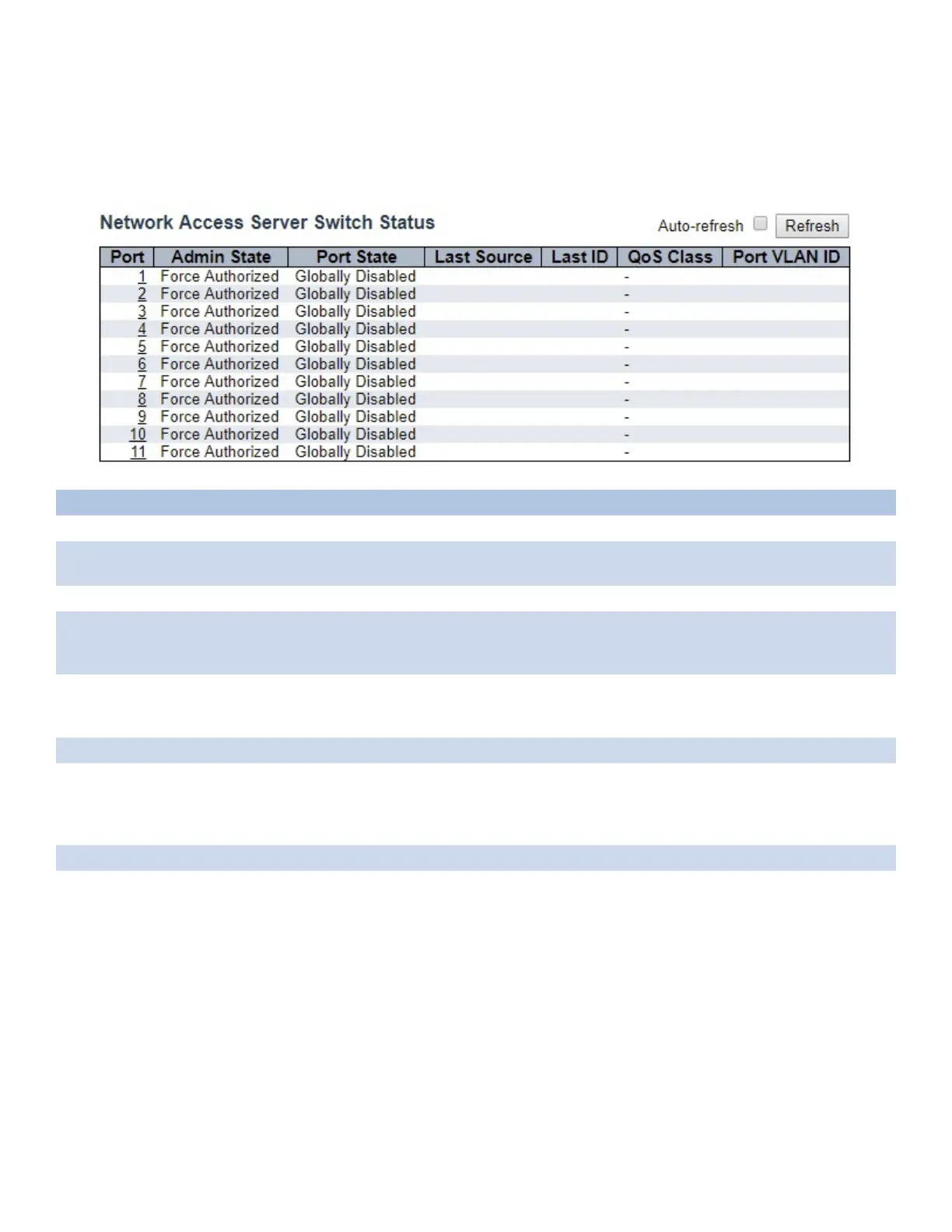

This page provides an overview of the current NAS port states.
Object Description
Port The switch port number. Click to navigate to detailed NAS statistics for this port.
Admin State The port’s current administrative state. Refer to NAS Admin State for a description of possible
values.
Port State The current state of the port. Refer to NAS Port State for a description of the individual states.
Last Source The source MAC address carried in the most recently received EAPOL frame for EAPOL-
based authentication, and the most recently received frame from a new client for MAC-based
authentication.
Last ID The user name (supplicant identity) carried in the most recently received Response Identity EAPOL
frame for EAPOL-based authentication, and the source MAC address from the most recently
received frame from a new client for MAC-based authentication.
QoS Class QoS Class assigned to the port by the RADIUS server if enabled.
Port VLAN ID The VLAN ID that NAS has put the port in. The field is blank, if the Port VLAN ID is not overridden by
NAS.
If the VLAN ID is assigned by the RADIUS server, “(RADIUS-assigned)” is appended to the VLAN ID.
If the port is moved to the Guest VLAN, “(Guest)” is appended to the VLAN ID.
Auto_refresh Check to refresh the page automatically every 3 seconds.
Refresh Click to refresh the page.
