C4000 Microprocessor Board
Electrical Drawings and Component Details
C4000 Microprocessor Board
The Compac C4000 head is operated by a software program in an EPROM
(which is located on the processor board). This program has several
operational configurations, one of which must be selected using the set-up
devices on the C4000 PCB.
These set-up devices (located on the drawing) are:
The Parameter switch.
The K-Factor switch.

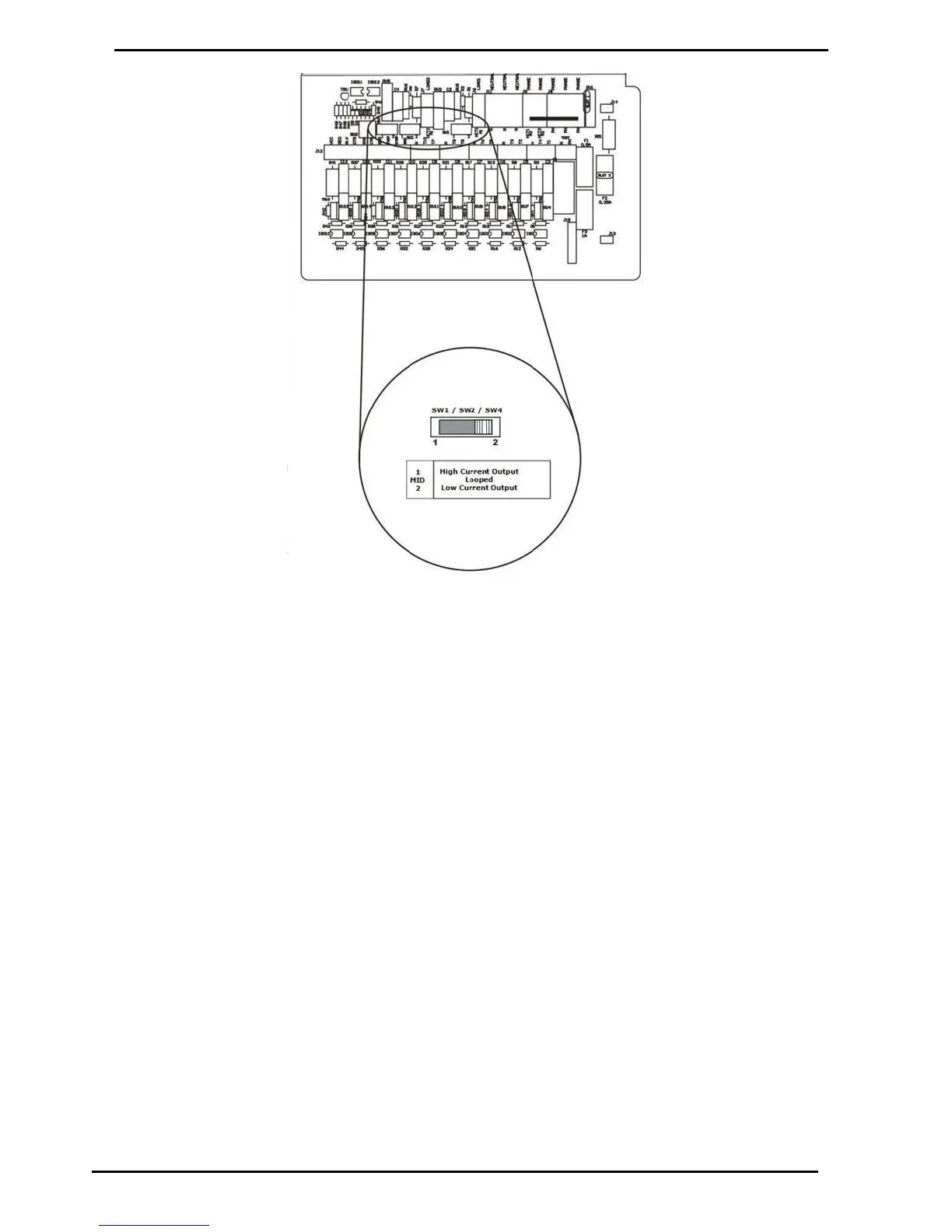

The board shown below is Issue E. For older dispenser board layout
information, contact Compac by using the contact details in the Product
Identification section (see page v).
