CompAir L22 User Manual

4. Design and functioning
23

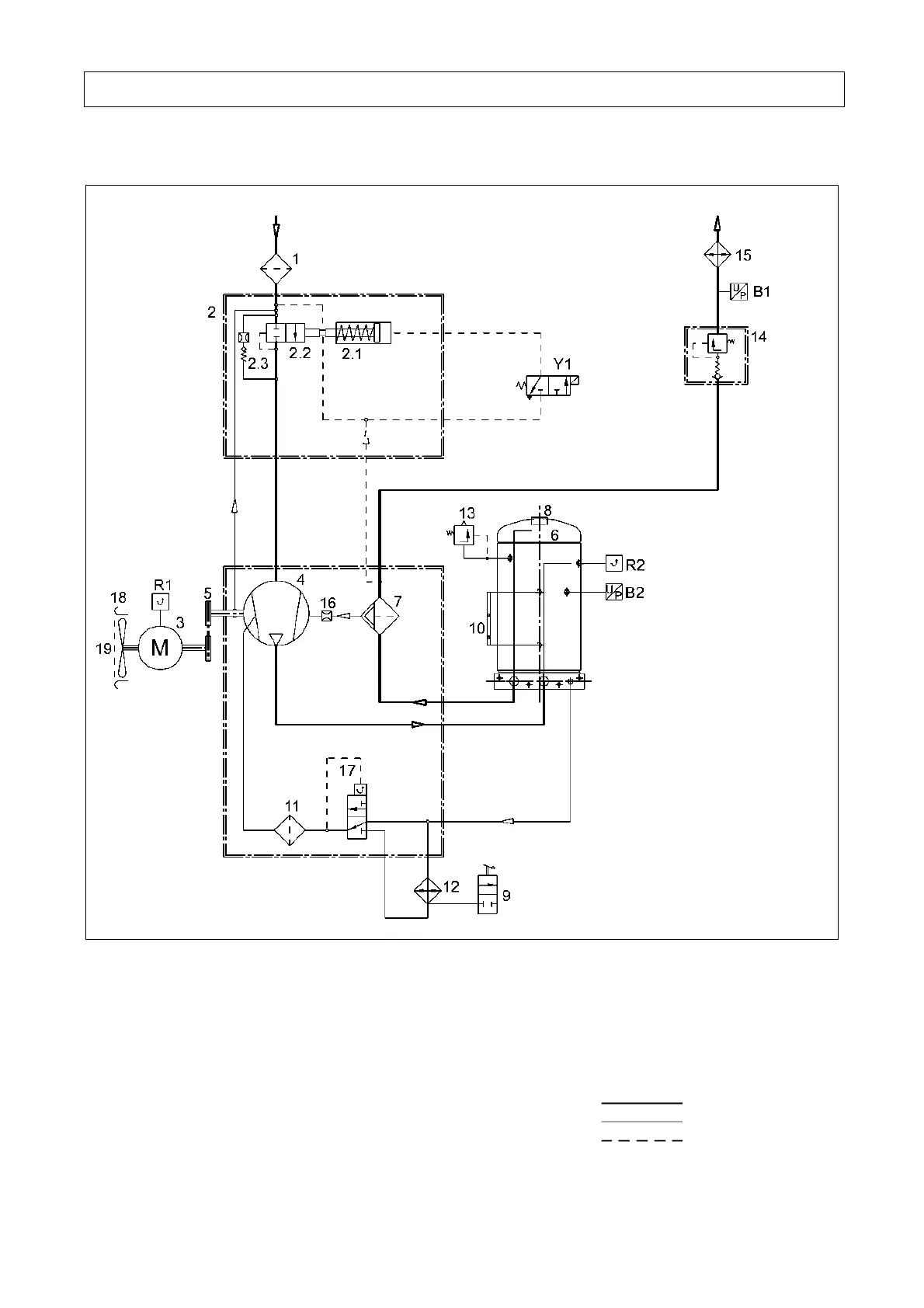

4.2.2 Schematic diagram L15-L22
Fig. 4 b
1
Intake filter
2
Intake regulator
2.1 Actuator
2.2 Intake valve
2.3 Check valve
3
Electric motor
4
Compressor block
5
Belt drive
6
Pressure reservoir
7
Fine separator
8
Oil filler cap
9
Oil drain
10
Oil-level indicator
11
Oil filter
12
Oil cooler
13
Safety valve
14
Pressure holding and check valve
(opening pressure 4.5 bar)
15
Air cooler
16
Oil fine separator extractor
17
Oil temperature regulator
(opening temperature 55 °C)
18
Cooling air ventilator
19
Filter mat cooling air inlet
R1
Motor temperature
R2
Final compression temperature
B1
Network pressure sensor
B2
Final compression pressure
sensor
Y1
3/2-way solenoid valve
Compressed air line
Oil line
Control line
Opening
pressure
4,5 bar
Residual pressure
1,5 bar
Opening temperature 55 °C

CompAir L22 Specifications

General

Model	L22
Category	Air Compressor
Motor Power	22 kW
Motor Power (hp)	30 hp
Noise Level	67 dB(A)
Weight	520 kg
