8.2.1 SENSOR DISTANCE
ADJUSTMENT

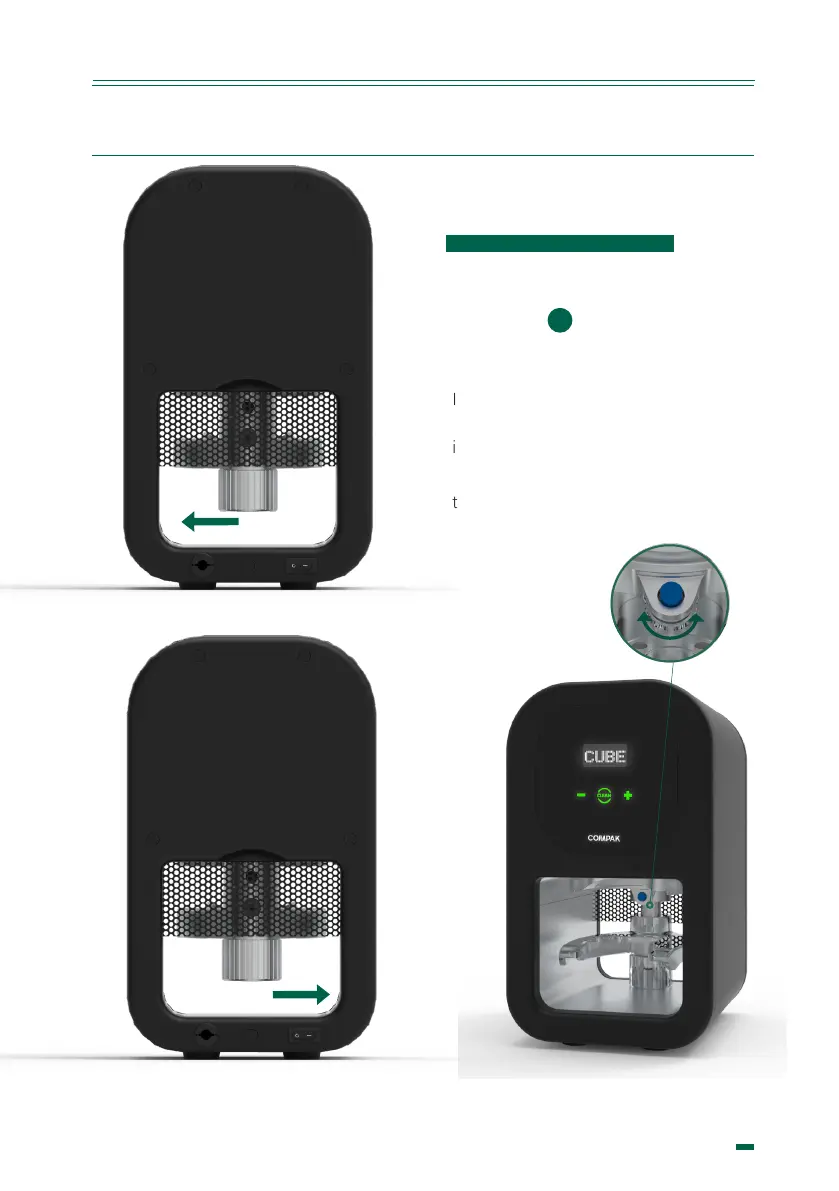

The current system allows, through a knob
adjustment, ( ) to change the sensor
distanceto work properly with all types of
portalters. Fig 4
In order to move the sensor away, rotate
clockwise, and counterclockwise to bring
it closer.
This adjustment should only be made in
the event that the factory setting is not
adequate for your portalter.
