K06307 | v. 22/07/2015 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
25
12.3.1.Modelswithatburrs

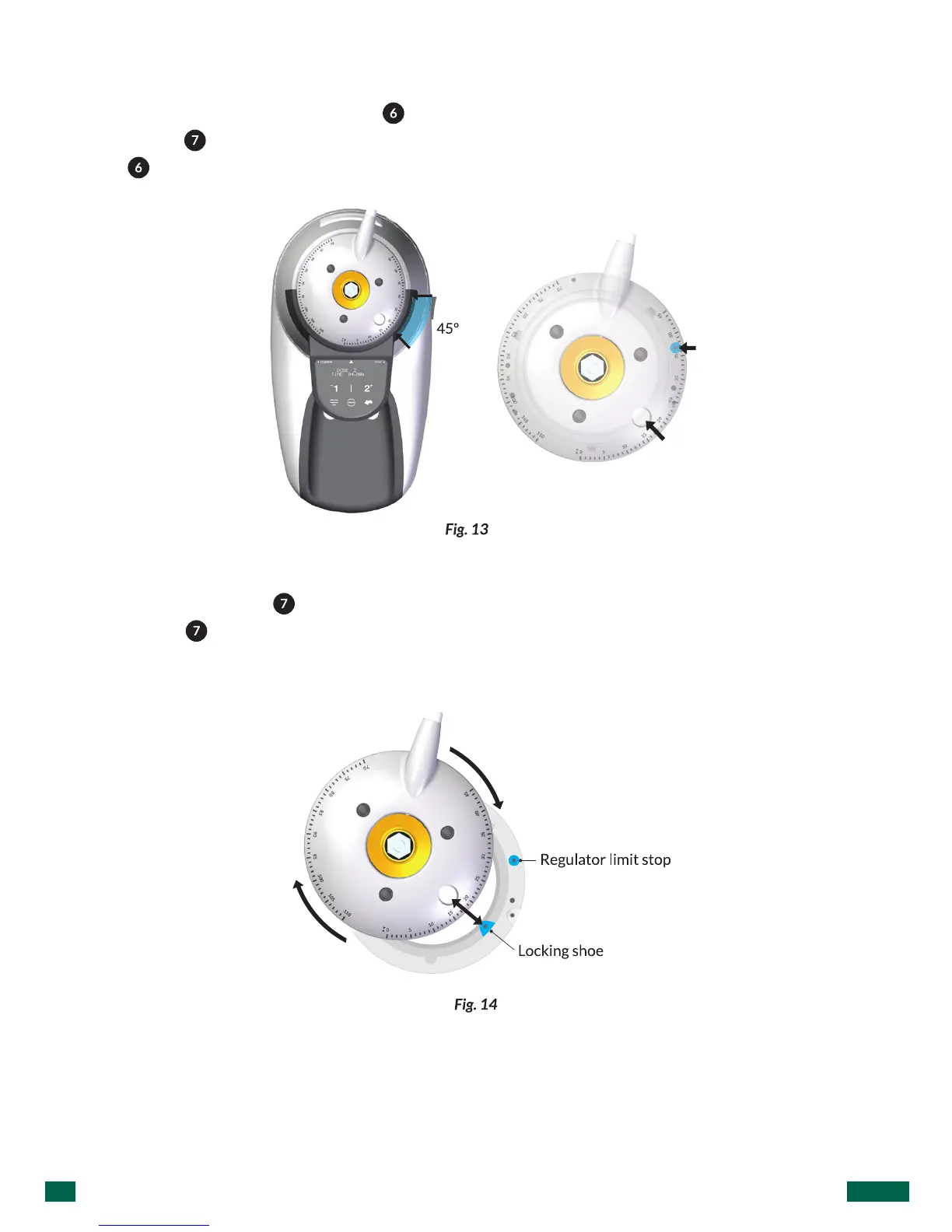

Position the regulator collar ( ) leaving about 45º between the grind point lock
screw ( ) and regulator limit stop (Fig. 13). In that position, tighten the regulator
( ) on the upper burr carrier and with a T20 Torx screwdriver, as Fig. 10.
For the models with the micrometric Parallelsystem,rstmakesurethatthegrind
point lock screw ( ) is lined up with the locking foot. This will ensure that the lock
screw ( ) and locking shoe move in conjunction with one another, and that the
locking mechanism works properly (Fig. 11).
