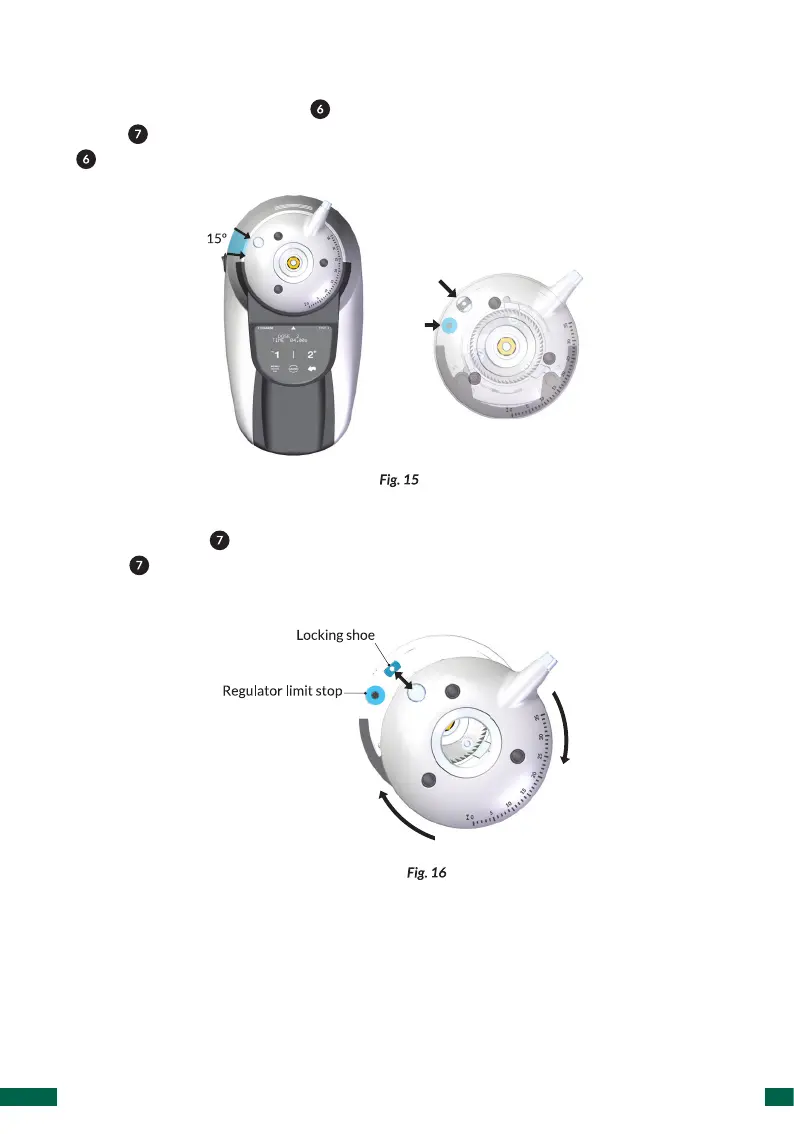

Position the regulator collar ( ) leaving about 15º between the grind point lock
screw ( ) and regulator limit stop (Fig. 15). In that position, tighten the regulator
( ) on the upper burr carrier and with a T20 Torx screwdriver, as Fig. 10.
For the models with the micrometric Parallelsystem,rstmakesurethatthegrind
point lock screw ( ) is lined up with the locking foot. This will ensure that the lock
screw ( ) and locking shoe move in conjunction with one another, and that the
locking mechanism works properly (Fig. 11).
