This process should be performed with extreme caution, making sure that there
are no coffee particles or debris in the housing threading. Also the placement of the
upper burr assembly should be done with caution, making sure it is perfectly level
and screwed in patiently. Failure to clean, lubricate or properly place the upper burr
assembly prior to screwing in, can result in blockage or locking of grind adjustment
system.
12.4.Exitchutecurtainreplacement
The exit chute curtain ensures consistency in the dose. Located inside the coffee
outlet ( ), it can be replaced by following the steps below:
E10 CONICMASTER,E10CONIC,E8andE6

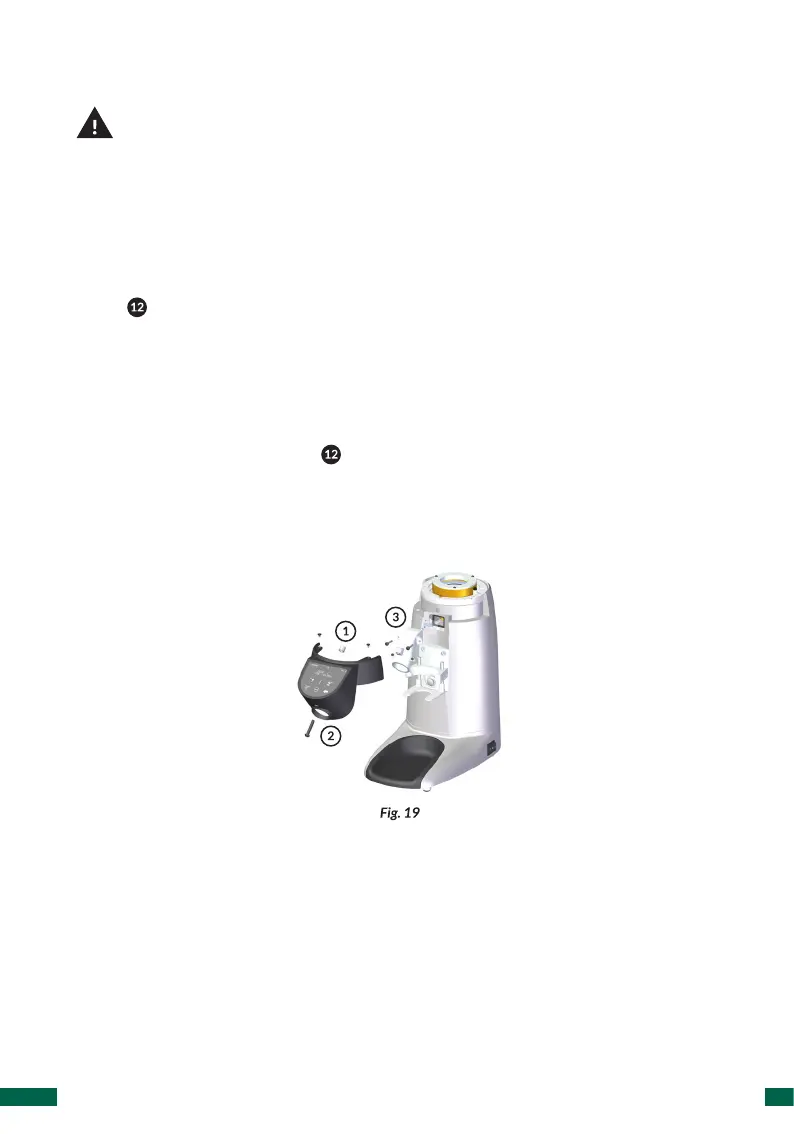

1. Remove the screws securing the plastic cover using an Allen key No. 4.
2. Removethescrewxingthebaseofaluminumsiding,usinganAllen key No. 2.5.
3. Remove the coffee outlet ( ), by removing the two retaining screws using an
Allen wrench No. 2.5. At this point, access to the curtain is possible. Replace the
curtain with a new curtain of different thicknesses according to the needs of
each barista. Simply remove the screw curtain using a # 10 Torx wrench.
