11.3.1.Modelswithatburrs(K3,K6 and K8)

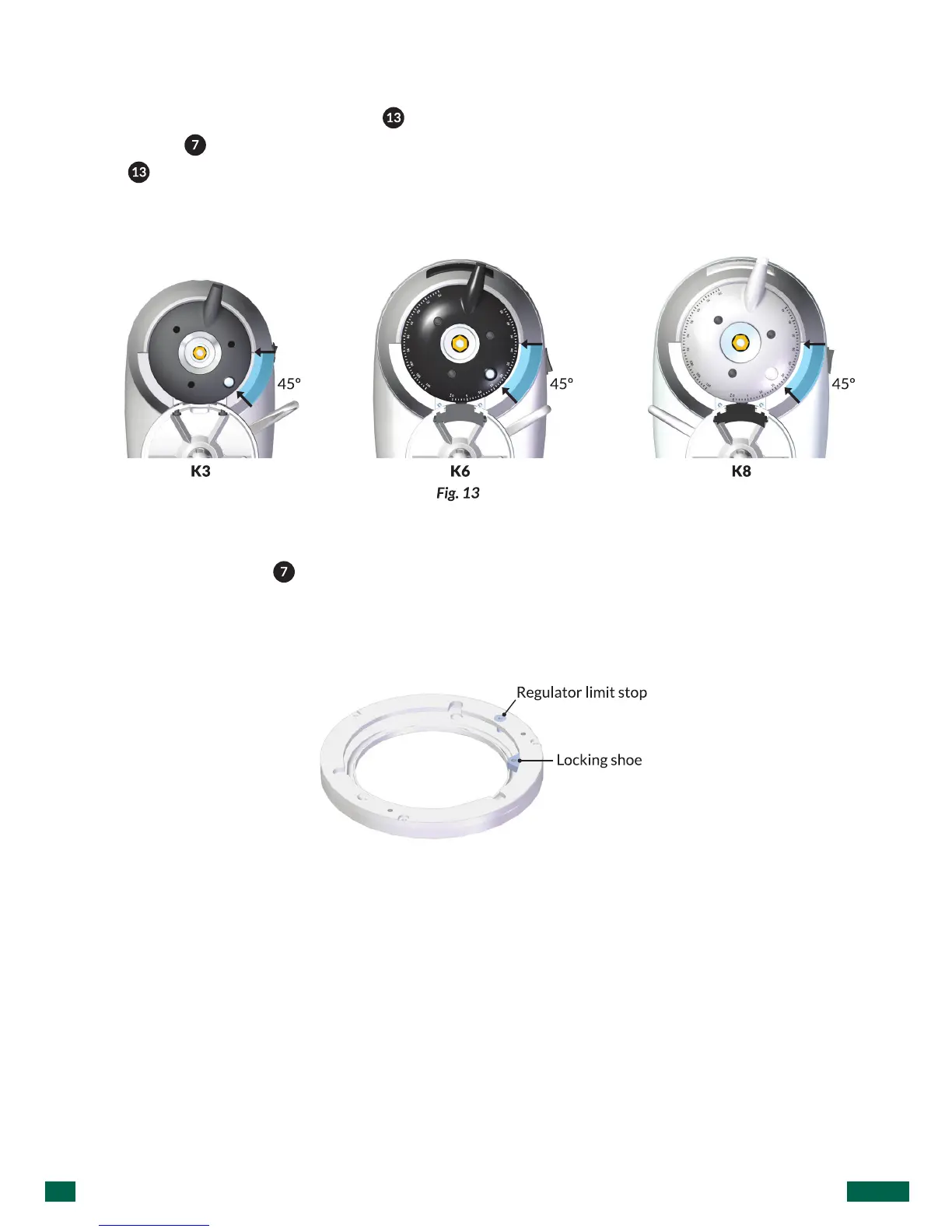

Position the regulator collar ( ) leaving about 45º between the grind point lock
screw ( ) and regulator limit stop (Fig. 13). In that position, tighten the regulator
( ) on the upper burr carrier and with an Allen key A3 series for the K3 (Fig. 9), or
a T20 Torx screwdriver for the other models, as Fig. 10.
For the models with the micrometric Parallelsystem,rstmakesurethatthegrind
point lock screw ( ) is lined up with the locking foot. This will ensure that the lock
screw and locking foot move in conjunction with one another, and that the locking
mechanism works properly (Fig. 11).
