Compaq 5000 Series Replacing

32 R
EPLACING THE
S
YSTEM
B
OARD

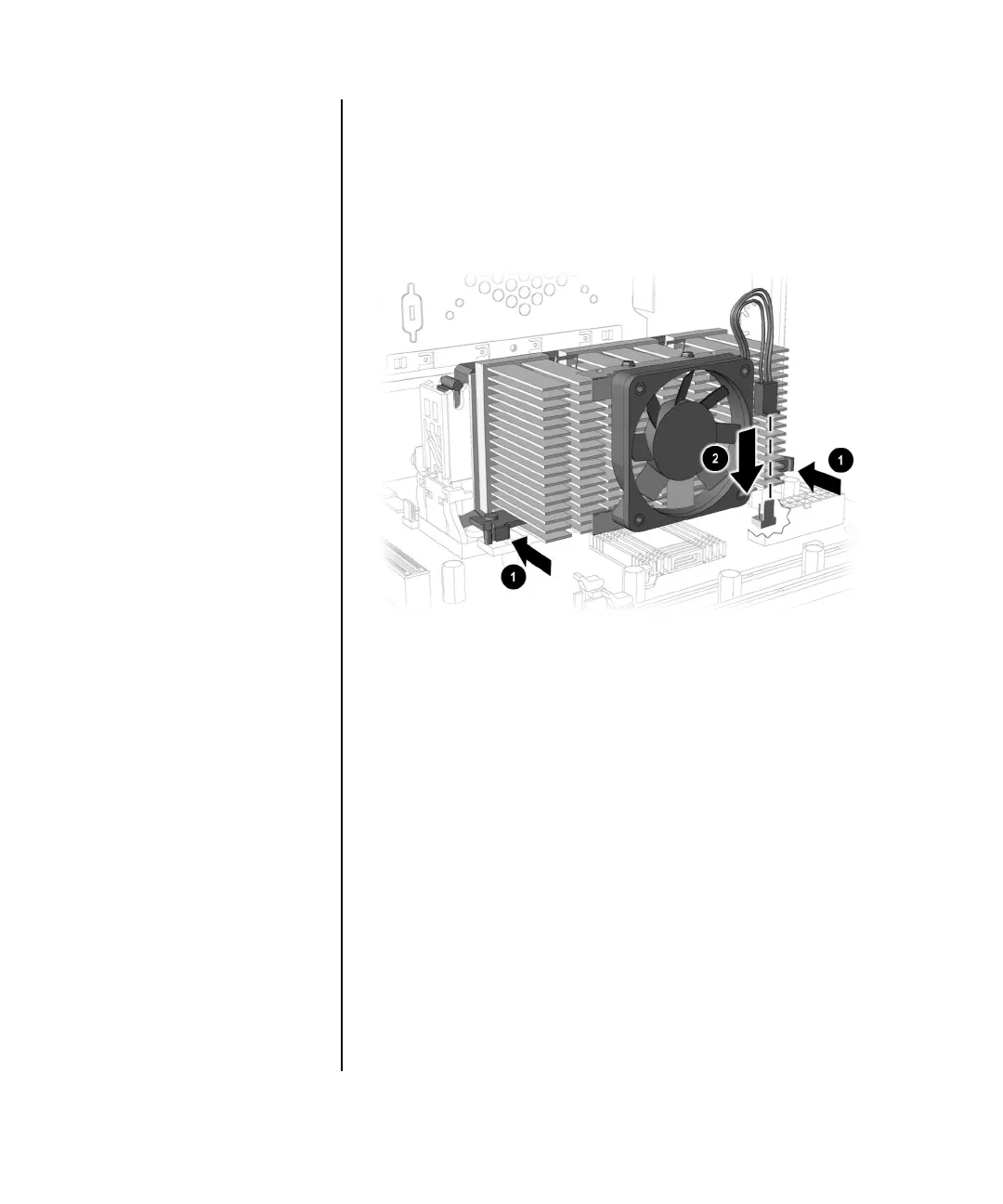

3. Re-attach the heatsink lock tabs 1 that also hold the
microprocessor/heatsink assembly into place.
4. Reconnect the heatsink power supply fan cable 2 to the
system board (see Figure 4-2).
Figure 4-2

Compaq 5000 Series Specifications

General

Memory Type	SDRAM
Optical Drive	CD-ROM or DVD-ROM
Audio	Integrated
Operating System	Windows 98
Ports	USB, Serial, Parallel, PS/2
Expansion Slots	PCI
