Compaq 5000 Series Replacing

R
EPLACING THE
S
YSTEM
B
OARD
33
V. Replacing the Expansion Card
1. Align the expansion card with the PCI slot 1 on the
system board, and align the expansion card rear
connector(s) with the rear connector slot on the chassis
(see Figure 5-1).
Important: The expansion card rear connector(s) must be properly
inserted into the rear chassis slot to ensure the card is properly seated
into the PCI slot
1
on the system board.
2. Replace the screw 2 to secure the expansion card to the
chassis (see Figure 5-1).

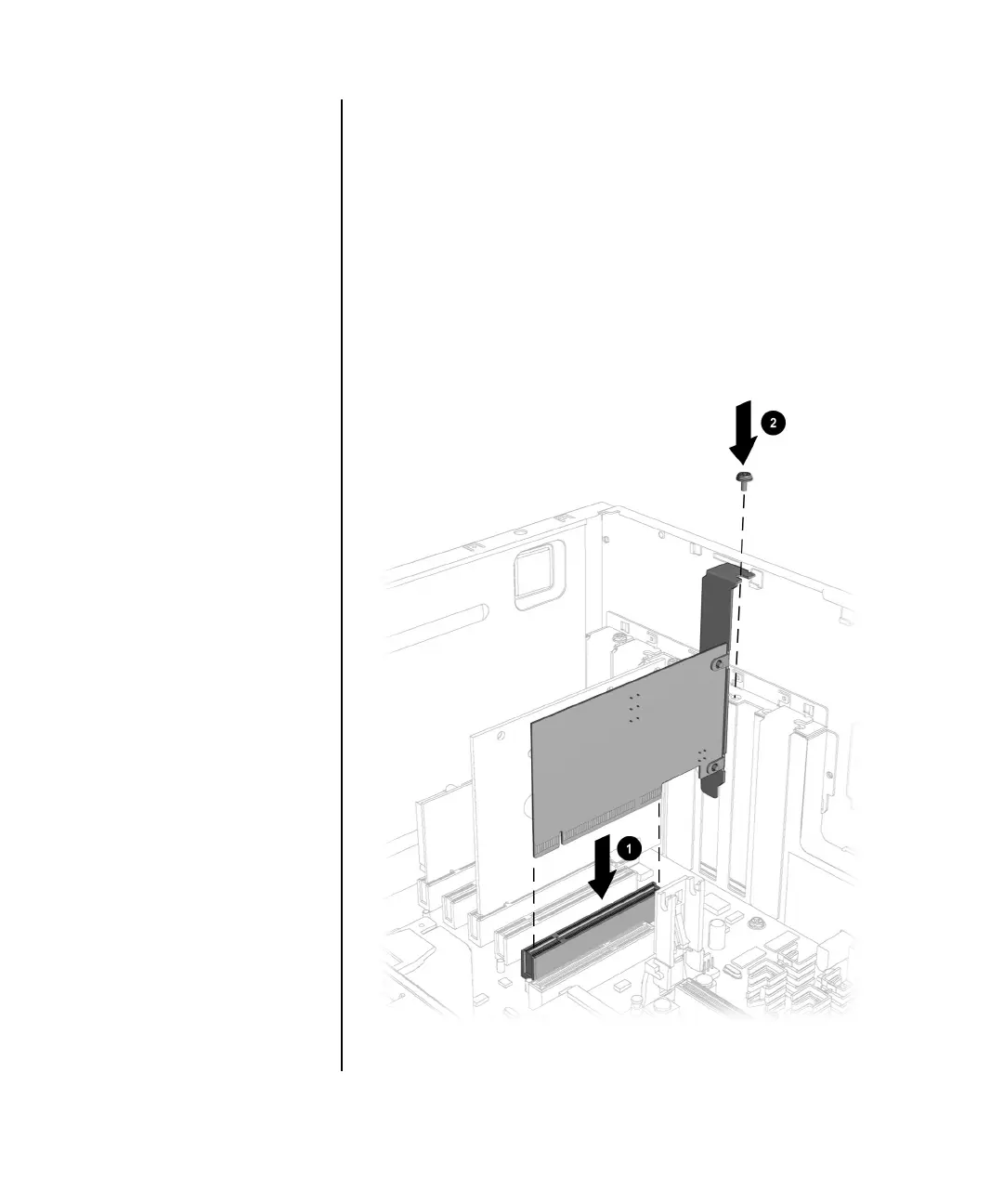

Figure 5-1

Compaq 5000 Series Specifications

General

Memory Type	SDRAM
Optical Drive	CD-ROM or DVD-ROM
Audio	Integrated
Operating System	Windows 98
Ports	USB, Serial, Parallel, PS/2
Expansion Slots	PCI
