Compaq 5000 Series Replacing

34 R
EPLACING THE
S
YSTEM
B
OARD
VI. Replacing the Sound Card
1. Align the sound card with the PCI slot on the system
board.
2. Insert the sound card carefully and firmly into the same
PCI slot 1 from which the card was removed
(see Figure 6-1).
3. Replace the screw 2 to secure the sound card to the
chassis (see Figure 6-1).

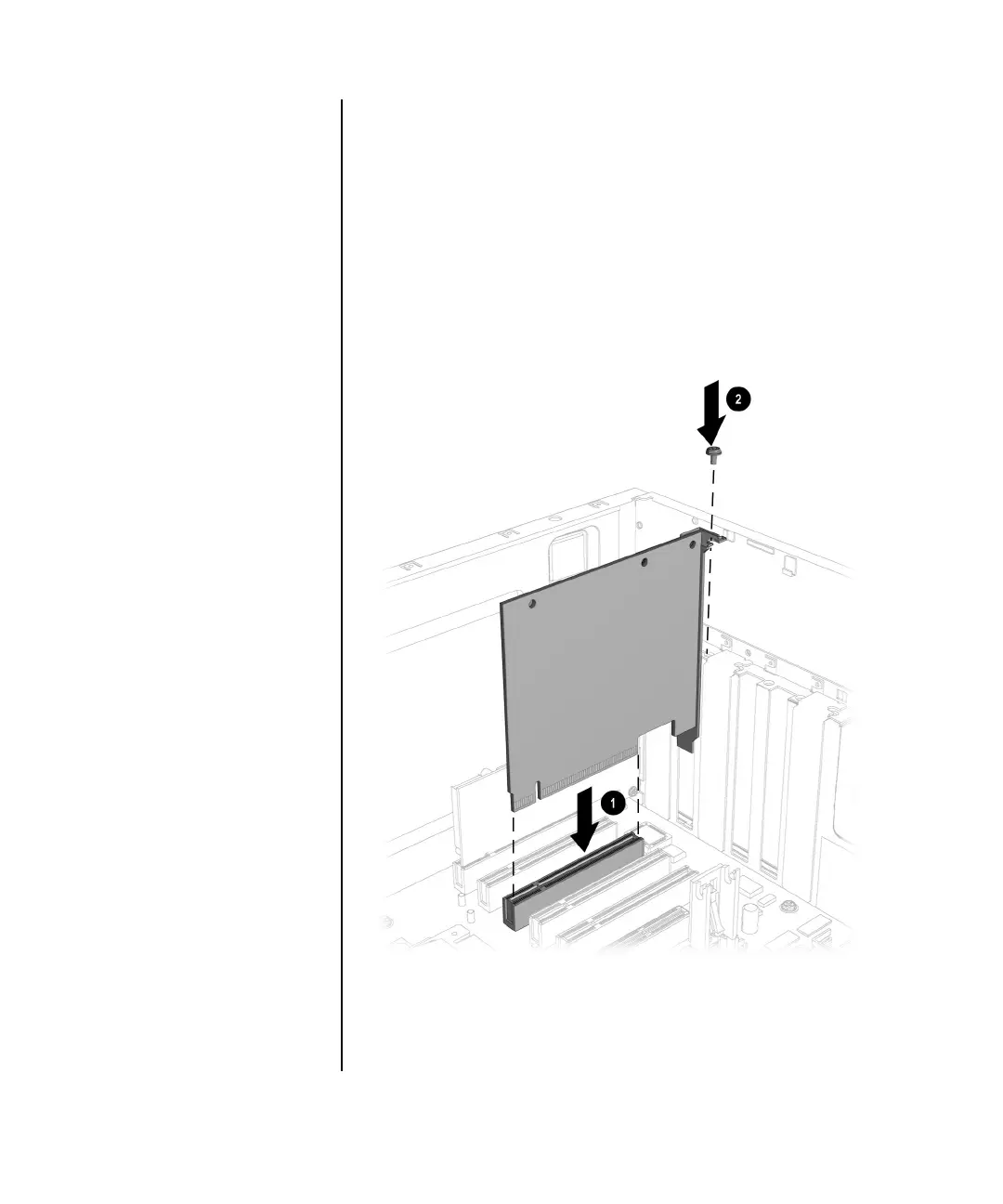

Figure 6-1

Compaq 5000 Series Specifications

General

Memory Type	SDRAM
Optical Drive	CD-ROM or DVD-ROM
Audio	Integrated
Operating System	Windows 98
Ports	USB, Serial, Parallel, PS/2
Expansion Slots	PCI
